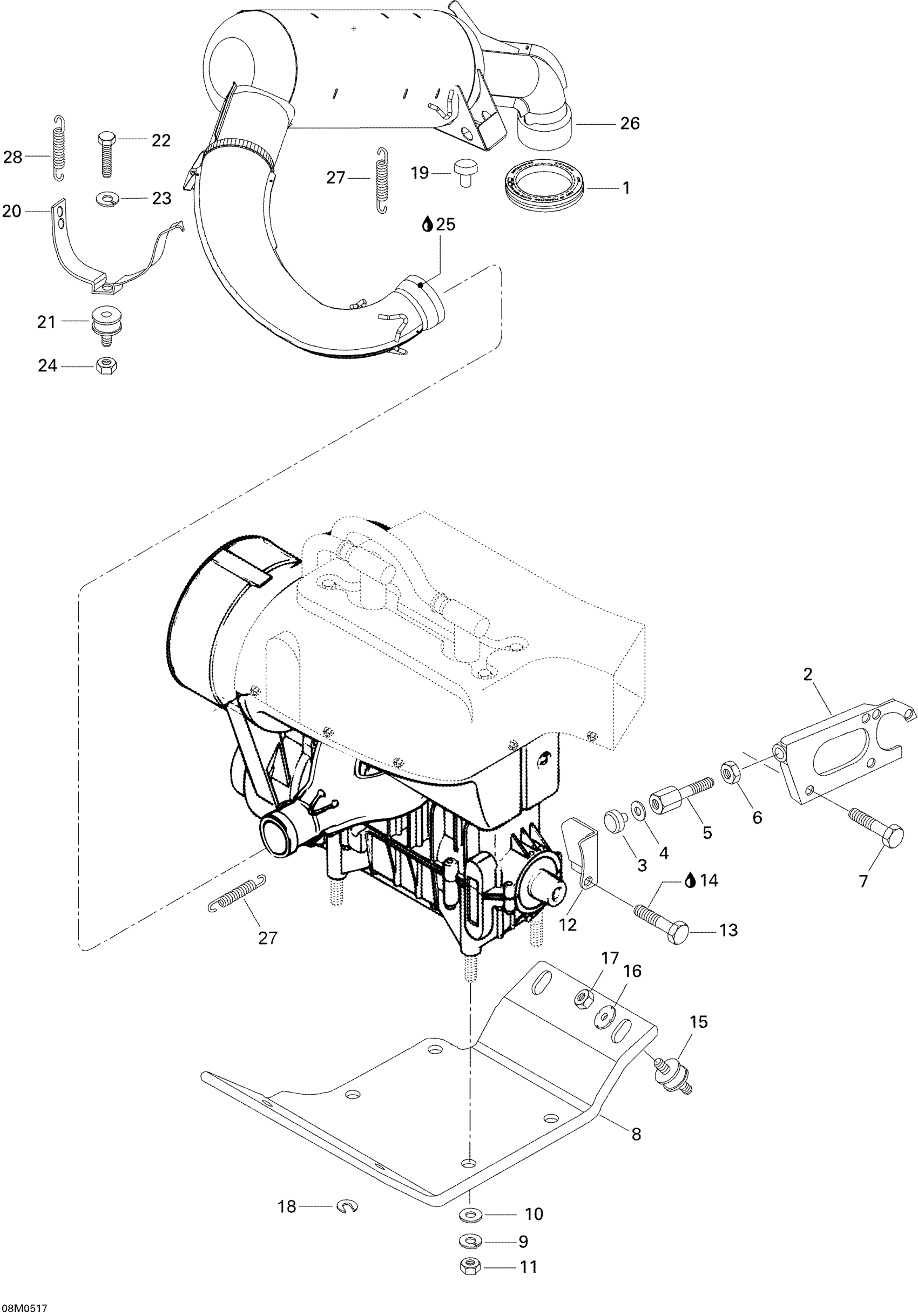

Ski-Doo Skandic LT 440F, 2005 Engine And Engine Support Diagram

#

Description
Price

1

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

2

PLATE SUPPORT - Call your local BRP dealership

605350127

Unavailable

3

STOPPER - Call your local BRP dealership

512059710

Unavailable

4

Washer

M20028

Unavailable

5

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

6

Hex. Jam Nut

M33218

Unavailable

7

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

8

SUPPORT-ENGINE - Call your local BRP dealership

M5246291

Unavailable

9

Lock Washer

M20047

Unavailable

10

WASHER M10 - Call your local BRP dealership

20005

Unavailable

11

Hex. Nut M10 X 1.5

232006414

$1.11

12

Welded Stopper Plate

M5344446

Unavailable

13

Hex. Screw M8 x 16

207181644

$0.87

14

Loctite 243, 10 ml

293800060

$20.77

15

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

16

Lock Washer

512056700

Unavailable

17

Elastic Locking Nut M10 X 1.5

233601416

$1.68

18

Washer

M546221

Unavailable

19

Rubber Bumper

570044700

$10.55

20

Support

M535108

Unavailable

21

Rubber Bumper

M28245

Unavailable

22

Screw

M40034

Unavailable

23

Lock Washer 8 mm

234181401

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

Unavailable

25

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

26

Muffler_Exhaust - Call your local BRP dealership

420979823

Unavailable

27

Spring This part replaces 420938795.

420938796

Unavailable

28

Spring

M543225

Unavailable
