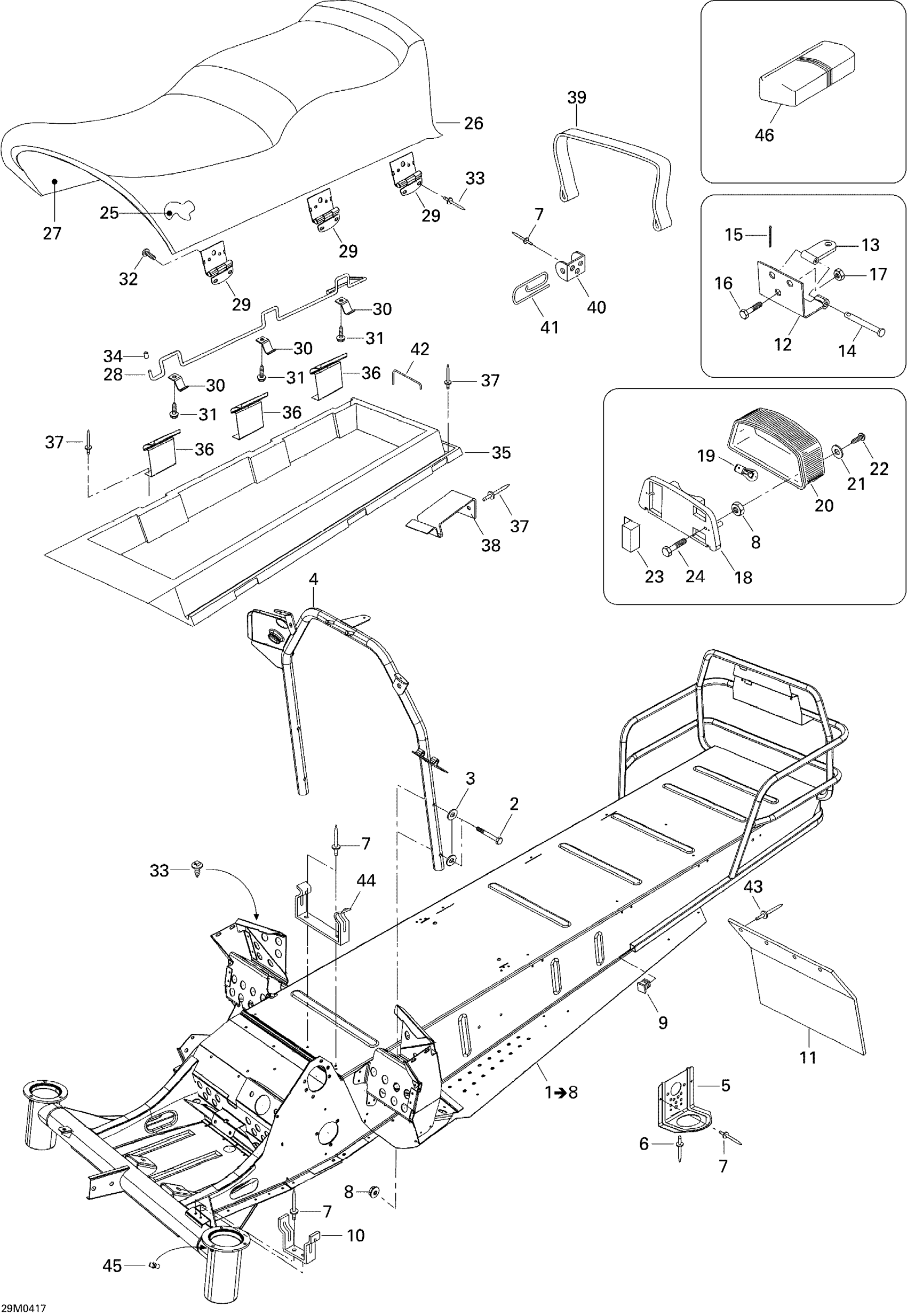

Ski-Doo Skandic LT 440F, 2004 09- Frame, Seat And Accessories Diagram

#

Description
Price

1

Lt Frame Ass'y

605148749

Unavailable

2

Hex. Screw M6 X 40

207064044

$1.48

3

Flat Washer 6 mm

234061410

$1.36

4

Handle Support

605250274

Unavailable

5

Bracket

M5342941

Unavailable

6

Rivet

M36080

Unavailable

7

Rivet

36108

$1.90

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

PLUG - Call your local BRP dealership

M28232

Unavailable

10

Belt Guard Bracket

518202100

$17.49

11

Snow Guard

572013800

Unavailable

12

Plate

M5346638

Unavailable

13

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

14

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

15

Cotter Pin

41031

$7.65

16

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Light Housing Ass.

511000007

Unavailable

19

Bulb

520000758

$9.10

20

Lens

414513700

$28.99

21

Washer - Call your local BRP dealership

414516400

Unavailable

22

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

23

PROTECTION PLATE - Call your local BRP dealership

605448415

Unavailable

24

Hex. Screw M6 X 30

207063044

$1.26

25

Seat Foam

M5145106

Unavailable

26

Cover Seat

605148629

Unavailable

27

Seat Base

M5144962

Unavailable

28

Locking Shaft

M5245337

Unavailable

29

Hinge

M5346518

Unavailable

30

Locking Plate

M5446102

Unavailable

31

Screw

M40888

Unavailable

32

SCREW - Call your local BRP dealership

M40887

Unavailable

33

Black, Dart

414644300

$0.98

34

Cap

M28019

Unavailable

35

Seat Base

M5144963

Unavailable

36

Lock

M5345195

Unavailable

37

Rivet

M36489

Unavailable

38

SPRING PLATE - Call your local BRP dealership

M5346728

Unavailable

39

SEAT BELT - Call your local BRP dealership

M5346727

Unavailable

40

Seat Belt Latch

M548824

Unavailable

41

Spring This part replaces M548834.

548834

$7.79

42

Stopper Hook

M5441849

Unavailable

43

Black Rivet

36037

$1.48

44

Support

M5346204

Unavailable

45

Grease Fitting

M34019

Unavailable

46

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
