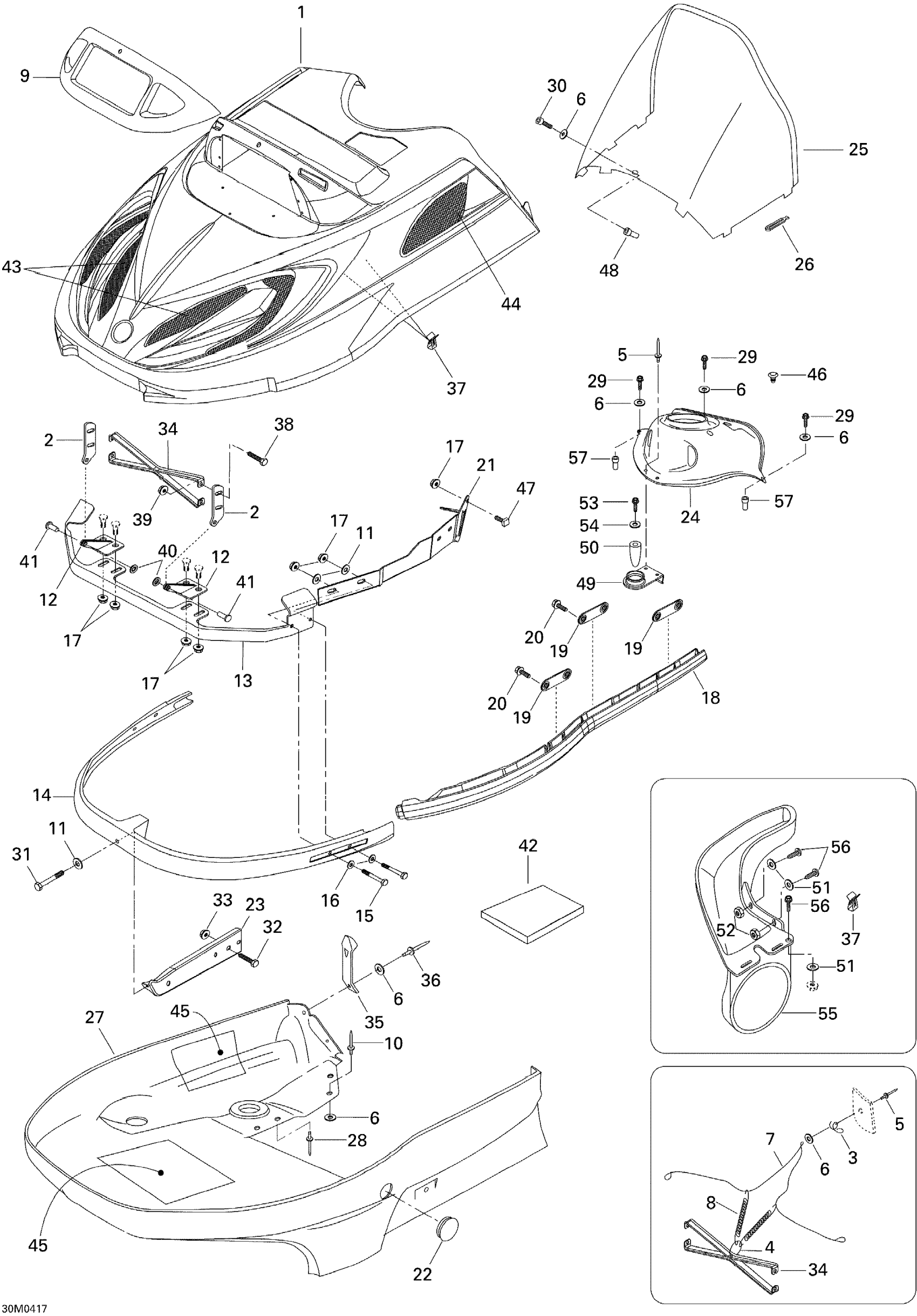

Ski-Doo Skandic LT 440F, 2004 09- Cab, Console Diagram

#

Description
Price

1

Yellow Hood | Includes 18 to 21

605148660

Unavailable

2

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

3

Cable Keeper

M5442870

Unavailable

4

RING - Call your local BRP dealership

415058300

Unavailable

5

Rivet

36005

$2.11

6

Washer 5,3 mm

20008

$0.74

7

Retainer Cable | SUV 600

M5342674

Unavailable

8

Spring This part replaces M5442675.

5442675

$14.99

9

Lamp Moulding

572079200

Unavailable

10

Rivet

36005

$2.11

11

Flat Washer 6 mm

234062410

$0.77

12

Welded Lower Hinge

517289900

Unavailable

13

Painted Bracket Hinge

517265100

Unavailable

14

Front Bumper

517265400

Unavailable

15

Hex. Screw M6 X 30

207063044

$1.26

16

Flat Washer

224061121

$0.53

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH Bumper

M5144965

Unavailable

18

LH Bumper

M5144964

Unavailable

19

Side Bracket

M5446213

Unavailable

20

Screw

M40322

Unavailable

21

LH Support

M5246399

Unavailable

21

RH Support

M5246400

Unavailable

22

Bottom Pan Cap

570277300

Unavailable

23

Front Support

M5246183

Unavailable

24

Dash

605350277

Unavailable

25

WINDSHIELD - Call your local BRP dealership

M5147892

Unavailable

26

Windshield Latch

570023800

$4.49

27

Botton Pan

M5145054

Unavailable

28

Black, Rivet

M36036

$1.69

29

Forming Screw M5 x 16

250000676

$1.01

30

Screw M5 X 30

M40358

Unavailable

31

Screw

M40867

Unavailable

32

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Hood Reinforcement

517278100

Unavailable

35

BLACK LATCH - Call your local BRP dealership

570025900

Unavailable

36

Rivet This part replaces M36009.

36009

$1.15

37

Clip

414227300

$1.67

38

Screw M5X16

M40366

Unavailable

39

NUT M5 - Call your local BRP dealership

M33062

Unavailable

40

Push Nut

389804300

$0.53

41

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

42

Acoustic Foam

414632400

Unavailable

43

RH Front Grill

M5246261

Unavailable

43

LH Front Grill

M5246262

Unavailable

44

RH Side Grille

M5347250

Unavailable

44

LH Side Grill

M5346263

Unavailable

45

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

46

Plastic Nut

M28035

Unavailable

47

Screw

M5446813

Unavailable

48

NUT M5 - Call your local BRP dealership

250100018

$6.99

49

GUIDE PLATE - Call your local BRP dealership

605350221

Unavailable

50

Guide Pin

M5446857

Unavailable

51

Flat Washer M5

234051410

$0.53

52

NUT M5 - Call your local BRP dealership

M33062

Unavailable

53

Screw

M40375

Unavailable

54

WASHER - Call your local BRP dealership

M20038

Unavailable

55

Inlet Duct

M5246991

Unavailable

56

Screw

M40308

Unavailable

57

Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055.

28055

$7.51

58

DAMPER RUBBER - Call your local BRP dealership

M547539

Unavailable
