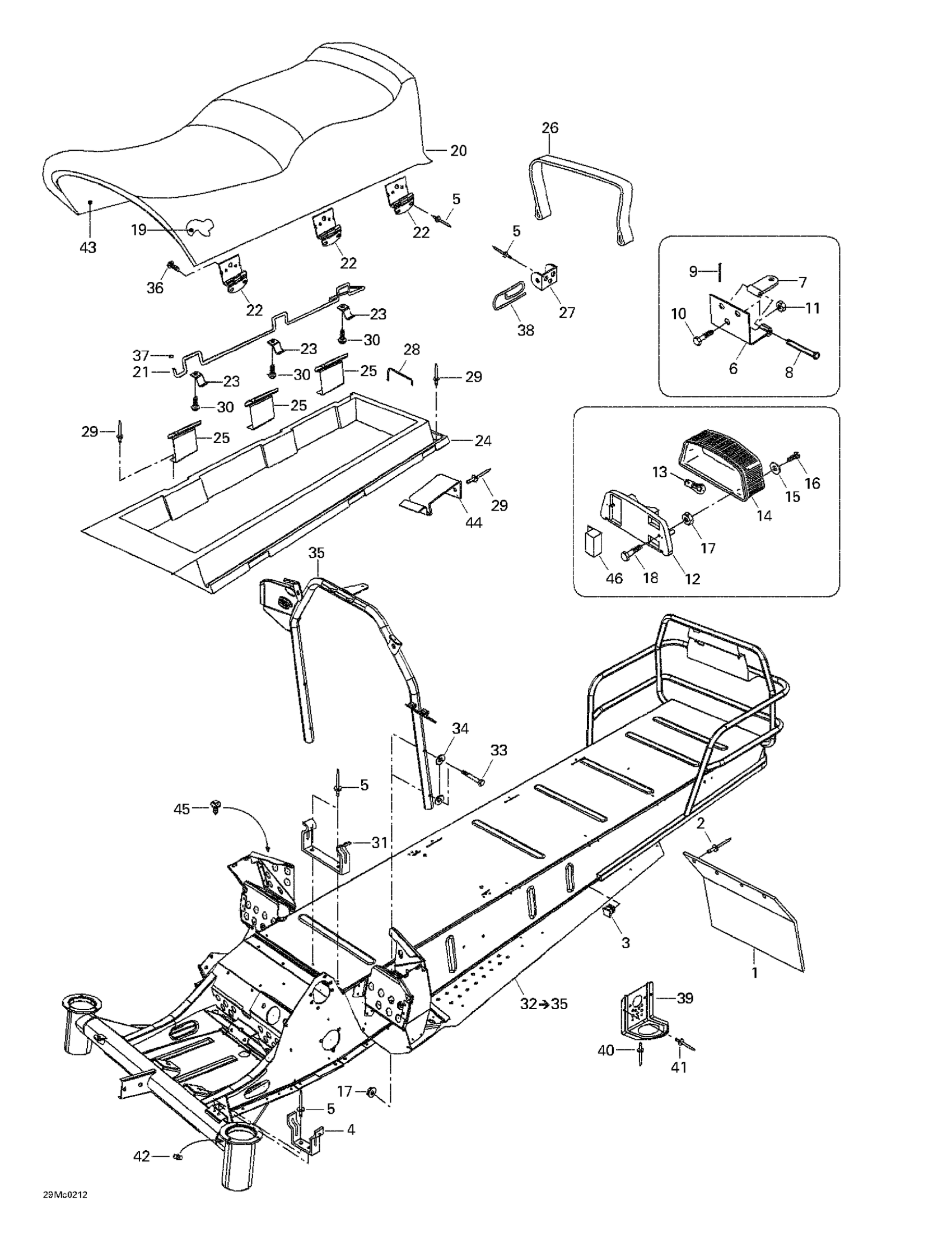

Ski-Doo Skandic LT 440F, 2003 Frame, Seat And Accessories Diagram

#

Description
Price

1

Snow Guard

572013800

Unavailable

2

Black Rivet

36037

$1.48

3

PLUG - Call your local BRP dealership

M28232

$5.51

4

Belt Guard Bracket

518202100

$16.12

5

Rivet

36108

$1.85

6

Plate

M5346638

$142.28

7

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

8

PIN-RETAINER - Call your local BRP dealership | North America

560309200

$5.60

9

Cotter Pin

41031

$6.26

10

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Taillamp Housing

414979400

$32.99

13

Bulb

520000758

$7.49

14

Lens

414513700

Unavailable

15

Washer - Call your local BRP dealership

414516400

Unavailable

16

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Hex. Screw M6 X 30

207063044

$0.98

19

Seat Foam

M5145106

$294.99

20

Cover Seat

605148629

Unavailable

21

Locking Shaft

M5245337

Unavailable

22

Hinge

M5346518

$41.51

23

Locking Plate

M5446102

Unavailable

24

Seat Base

M5144963

Unavailable

25

Lock

M5345195

Unavailable

26

SEAT BELT - Call your local BRP dealership

M5346727

$46.12

27

Seat Belt Latch

M548824

$10.26

28

Stopper Hook

M5441849

Unavailable

29

Rivet

M36489

Unavailable

30

Screw

M40888

Unavailable

31

Support

M5346204

Unavailable

32

Lt Frame Ass'y

605148749

Unavailable

33

Hex. Screw M6 X 40

207064044

$1.48

34

Flat Washer 6 mm

234061410

$1.04

35

Handle support

M5245059

Unavailable

36

SCREW - Call your local BRP dealership

M40887

$1.35

37

Cap

M28019

Unavailable

38

Spring This part replaces M548834.

548834

$7.35

39

Bracket

M5342941

Unavailable

40

Rivet

M36080

Unavailable

41

Rivet

36108

$1.85

42

Grease Fitting

M34019

Unavailable

43

Seat Base

M5144962

Unavailable

44

SPRING PLATE - Call your local BRP dealership

M5346728

$21.51

45

Black, Dart

414644300

$0.78

46

PROTECTION PLATE - Call your local BRP dealership

605448415

$13.43
