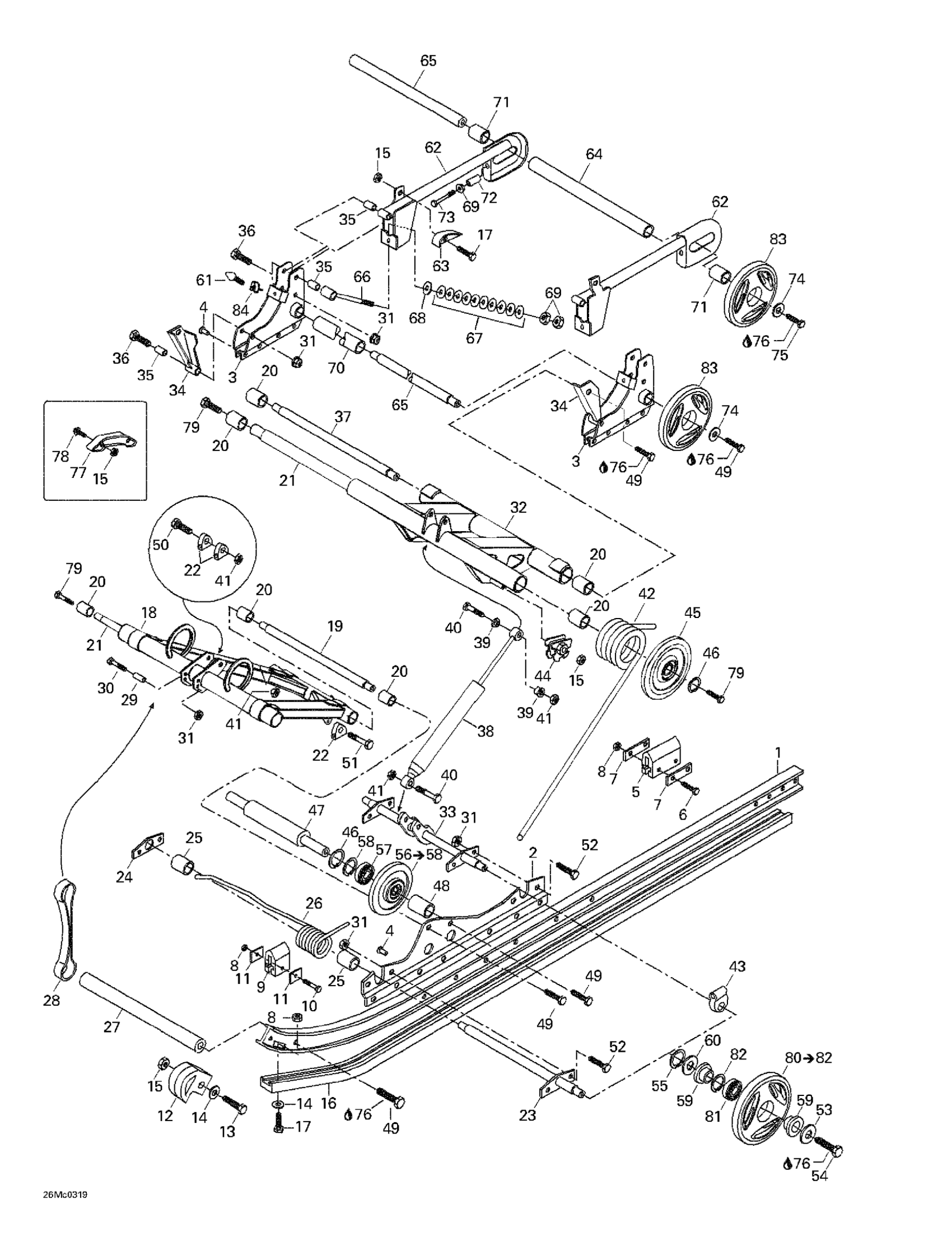

Ski-Doo Skandic LT 440F, 2003 Rear Suspension Diagram

#

Description
Price

1

LH RUNNER ASS?Y - Call your local BRP dealership | Includes 1 to 5

M5142865

Unavailable

RH Runner Ass’Y | Includes 1 to 5

M5142866

Unavailable

1

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

$222.28

2

Support Plate Lh This part replaces M5344810.

5344810

$54.58

Support Plate Rh This part replaces M5344811.

5344811

$54.58

3

Support For Rearaxle Lh This part replaces M539672.

539672

$83.82

Support For Rearaxle Rh This part replaces M539673.

539673

$83.82

4

RIVET - Call your local BRP dealership

M544212

Unavailable

5

RUBBER STOPPER - Call your local BRP dealership

570023100

$15.35

6

Hex. Screw M6 X 40

207064044

$1.48

7

Washer

M548387

Unavailable

8

Elastic Stop Nut M6

232561414

$1.55

9

STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.

5442328

$6.75

10

Hex. Screw M6 X 30

207063044

$0.98

11

Plate

M548470

Unavailable

12

Runner Protector

605348954

$17.66

13

Hex. Screw M6 X 25

207162544

$1.05

14

Flat Washer 6 mm

234061410

$1.04

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Runner Shoe

M549582

$33.05

17

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

18

Welded Front Arm

M538796

Unavailable

19

AXLE - Call your local BRP dealership

M548944

Unavailable

20

Bearing This part replaces M31023.

31023

$12.28

21

Arm Shaft This part replaces M538945.

538945

$72.28

22

Spring Roller This part replaces M548799.

548799

$11.40

23

Axle

M538802

Unavailable

24

Plate Support

M548469

Unavailable

25

Sleeve

M548841

Unavailable

26

Spring L.H. This part replaces M5241177.

5241177

$59.97

Spring R.H. This part replaces M5241178.

5241178

$53.05

27

Cross Shaft

M546599

Unavailable

28

STOPPER STRAP - Call your local BRP dealership

M5445988

Unavailable

29

Sleeve

M546065

Unavailable

30

Hex. Screw

M40122

Unavailable

31

Hex. Elastic Stop Nut M8

232581414

$0.47

32

Welded Rear Arm

M538801

Unavailable

33

Shaft

M538803

Unavailable

34

Crank Arm Lh This part replaces M5440349.

5440349

$72.28

Crank Arm R.H. This part replaces M5440350.

5440350

$83.82

35

Spacer This part replaces M545758.

545758

$26.12

36

Hex. Screw M8 X 45

207084544

$1.25

37

Swing Shaft This part replaces M548946.

548946

$61.51

38

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

39

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

40

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

41

Elastic Locking Nut M10 X 1.5

233601416

$1.68

42

Spring L.H. This part replaces M538805.

538805

Unavailable

Spring R.H. This part replaces M538806.

538806

Unavailable

43

Spring Support

M548804

Unavailable

44

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

45

Wheel 165" | Includes 670 to 670b

503194127

$49.97

46

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.29

47

Support Shaft

M5445985

Unavailable

48

Sleeve L=29

M5444098

Unavailable

49

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

50

Hex. Screw M10 X 55

207005544

$1.85

51

Hex. Screw M10 X 35

207103544

$1.42

52

Hex. Screw M8 x 16

207181644

$0.87

53

Washer

503183100

$3.08

54

Hex. Screw

M40337

Unavailable

55

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.28

56

Wheel 135

503191029

$32.28

57

Ball Bearing

293350115

$11.15

58

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

59

Cushion

503189534

$4.55

60

SHIM - Call your local BRP dealership

M31091

Unavailable

61

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

62

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

63

Protector

M548262

Unavailable

64

SLEEVE - Call your local BRP dealership

M5346739

Unavailable

65

Shaft

M5445986

Unavailable

66

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

67

Cup Spring This part replaces M25004.

25004

$3.43

68

Flat Washer 10 mm This part replaces M20011.

234002410

$1.25

69

Hex. Nut M10 X 1.5

232006414

$1.11

70

SLEEVE L=176 - Call your local BRP dealership

M542105

Unavailable

71

Sleeve L=29

M5444098

Unavailable

72

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

73

SCREW - Call your local BRP dealership

M40239

Unavailable

74

Washer

503183300

$5.68

75

Hex. Screw With Nylon

250000019

$1.42

76

Loctite 243, 10 ml

293800060

$20.77

77

Sliding Pad

503192731

Unavailable

78

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

79

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

Unavailable

80

Wheel 135, Yellow

503190785

$32.28

81

Ball Bearing

293350115

$11.15

82

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

83

Wheel 165" | Includes 670 to 670b

503194127

$49.97

84

Adjustment Plate This part replaces M5440645.

5440645

$13.95
