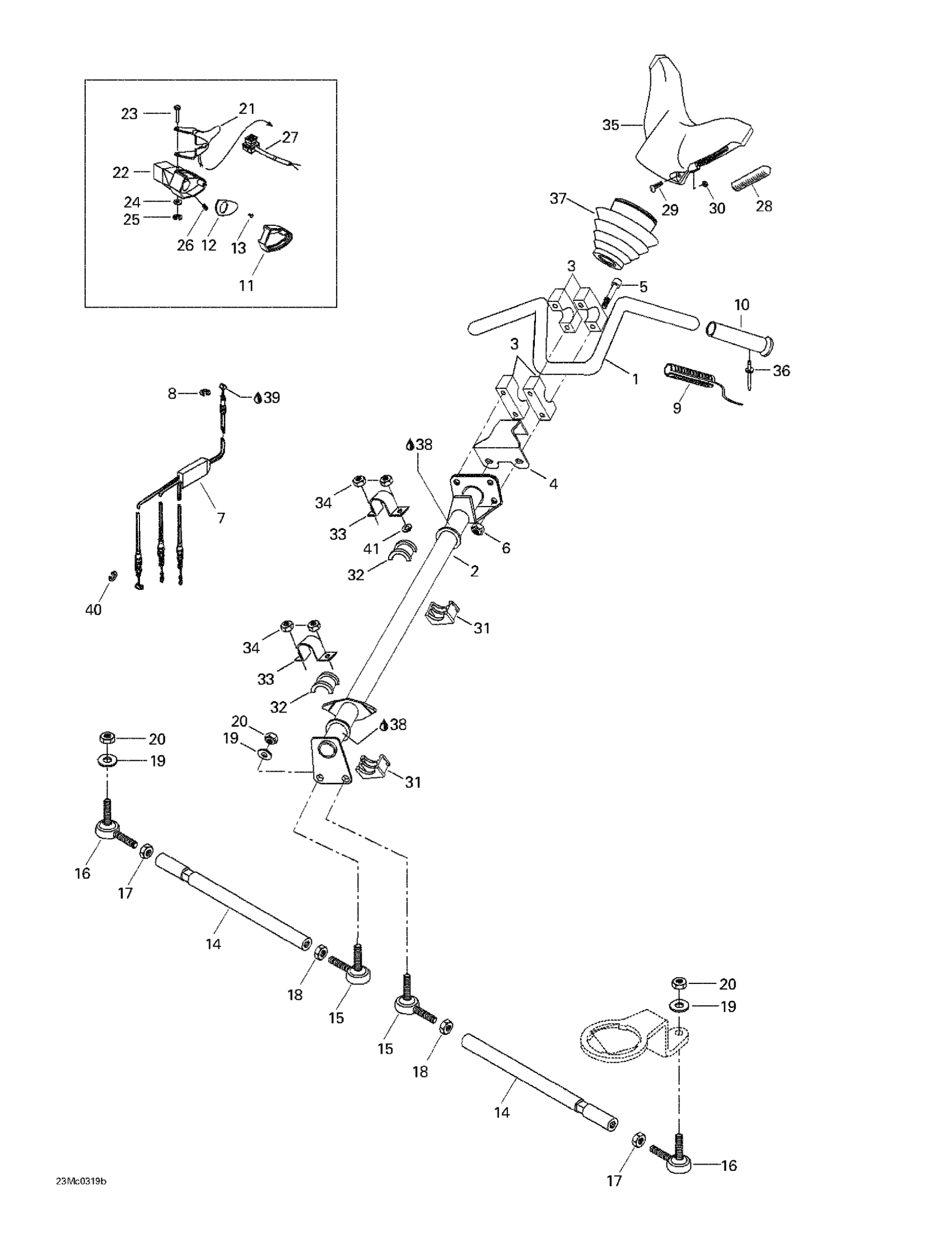

Ski-Doo Skandic LT 440F, 2003 Steering System Diagram

#

Description
Price

1

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

2

Main Tube

M5245963

Unavailable

3

Support Guidon *Support-Steer.

M548448

Unavailable

4

Support

M5444196

Unavailable

5

Socket Head Screw M8 X 45

M40286

$5.40

6

Hex. Elastic Stop Nut M8

232581414

$0.47

7

Throttle Cable This part replaces M5145673.

5145673

$102.28

8

Circlip

M31038

Unavailable

9

Heating Grip

515175664

$67.66

10

Grip | WAKE This part replaces M5340464.

506152483

$9.85

11

Throttle Cover

572069300

Unavailable

12

Plate

512060390

$9.31

13

Screw

414473200

$3.69

14

Rh Tie Rod

M548983

Unavailable

15

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

16

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

17

RH NUT - Call your local BRP dealership

M33019

Unavailable

18

LH NUT - Call your local BRP dealership

M33017

Unavailable

19

Lock Washer

M20047

$1.58

20

Elastic Flange Nut M10

232501416

$1.25

21

Handle Ass’Y

512059624

$88.43

22

Throttle Housing

512060603

$10.57

23

Lever Pin

414438700

$11.14

24

Flat Washer M5, Stainless

234051600

$0.64

25

Circlip | Model-RS

414439000

$4.14

26

Socket Set Screw M8 X 10

414440800

$4.00

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

28

Key Way

572023900

Unavailable

29

Screw

M40156

$1.58

30

NUT M5 - Call your local BRP dealership

M33062

$1.35

31

Bushing

572064400

Unavailable

32

BUSHING - Call your local BRP dealership

572064500

$4.58

33

Retaining Support

M5343381

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

$1.14

35

Steering Pad

572044500

Unavailable

36

Rivet

36005

$2.02

37

Bellow

M539033

Unavailable

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

40

Circlip

414753500

$0.59

41

Lock Washer

M31081

Unavailable
