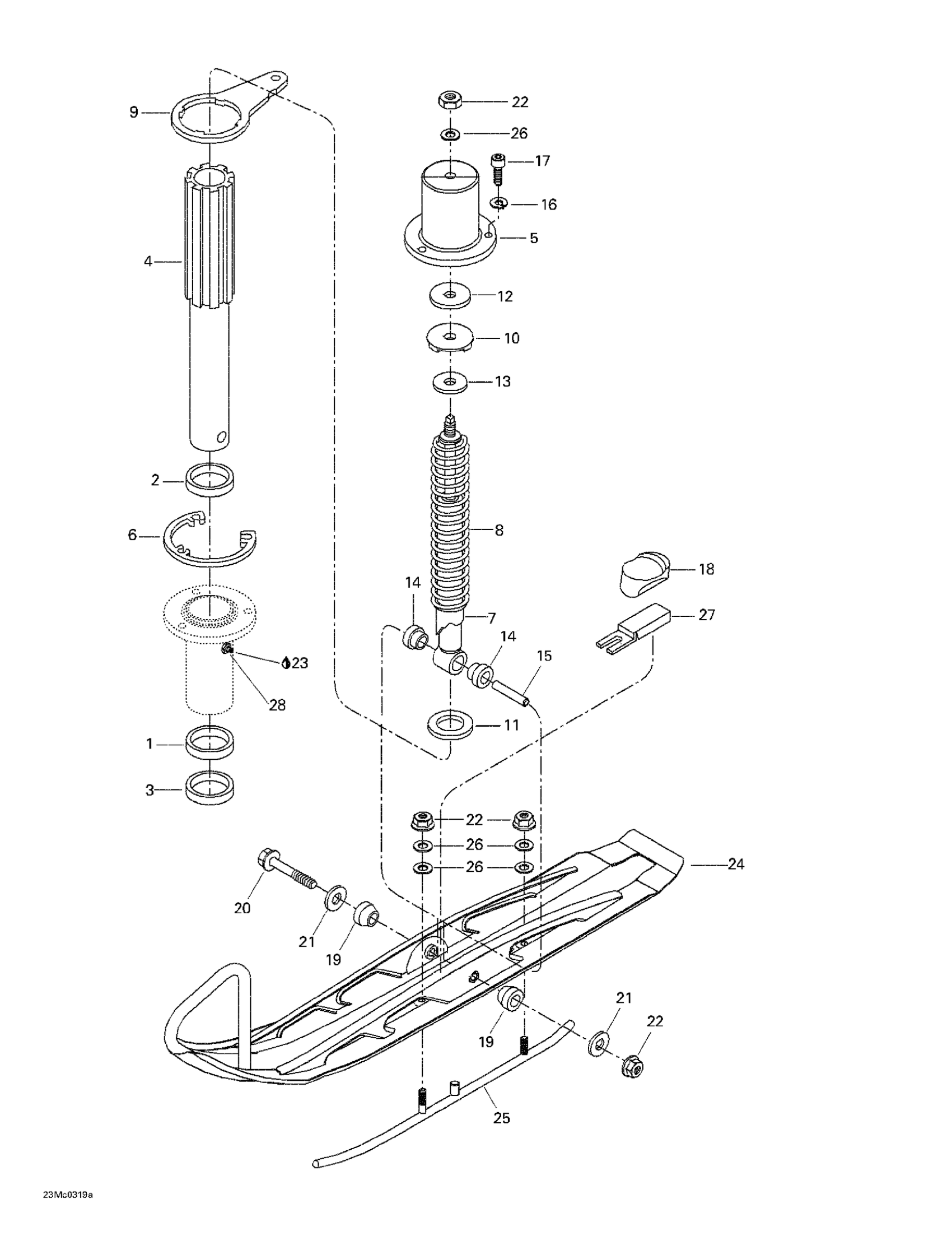

Ski-Doo Skandic LT 440F, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

Lower Cushion

414803200

Unavailable

2

Upper Cushion

414803100

Unavailable

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

4

Ski Leg

M5243952

Unavailable

5

Welded cover

M5240019

Unavailable

6

SPACER - Call your local BRP dealership

503145600

Unavailable

7

SHOCK - Call your local BRP dealership

505070014

Unavailable

8

Spring

M5240897

Unavailable

9

Steering Arm 8Te This part replaces M5340383.

5340383

$78.43

10

Stopper

570025800

Unavailable

11

Washer This part replaces M549493.

549493

$13.58

11

WASHER - Call your local BRP dealership

505070192

Unavailable

12

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

13

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

14

Cushion

572034500

Unavailable

15

Ski Cushion | SWT, WTLC This part replaces M549716.

549716

$39.97

16

Lock Washer 8 mm

234181401

Unavailable

17

Socket Head Screw M8 X 20

205082044

Unavailable

18

STOPPER - Call your local BRP dealership | SWT, WTLC

M5341750

Unavailable

19

Cone Rubber | SWT, WTLC This part replaces M547543.

547543

$13.95

20

Hex. Screw M10 X 125 | SWT, WTLC

M40354

Unavailable

21

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

22

Elastic Locking Nut M10 X 1.5

233601416

Unavailable

23

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

24

Welded Ski | SWT, WTLC

M5245338

Unavailable

25

Ski runner

M5345694

Unavailable

26

Flat Washer 10 mm

234001410

Unavailable

27

Support Plate | SWT. WTLC

M5445639

Unavailable

28

Grease Fitting

M34019

Unavailable
