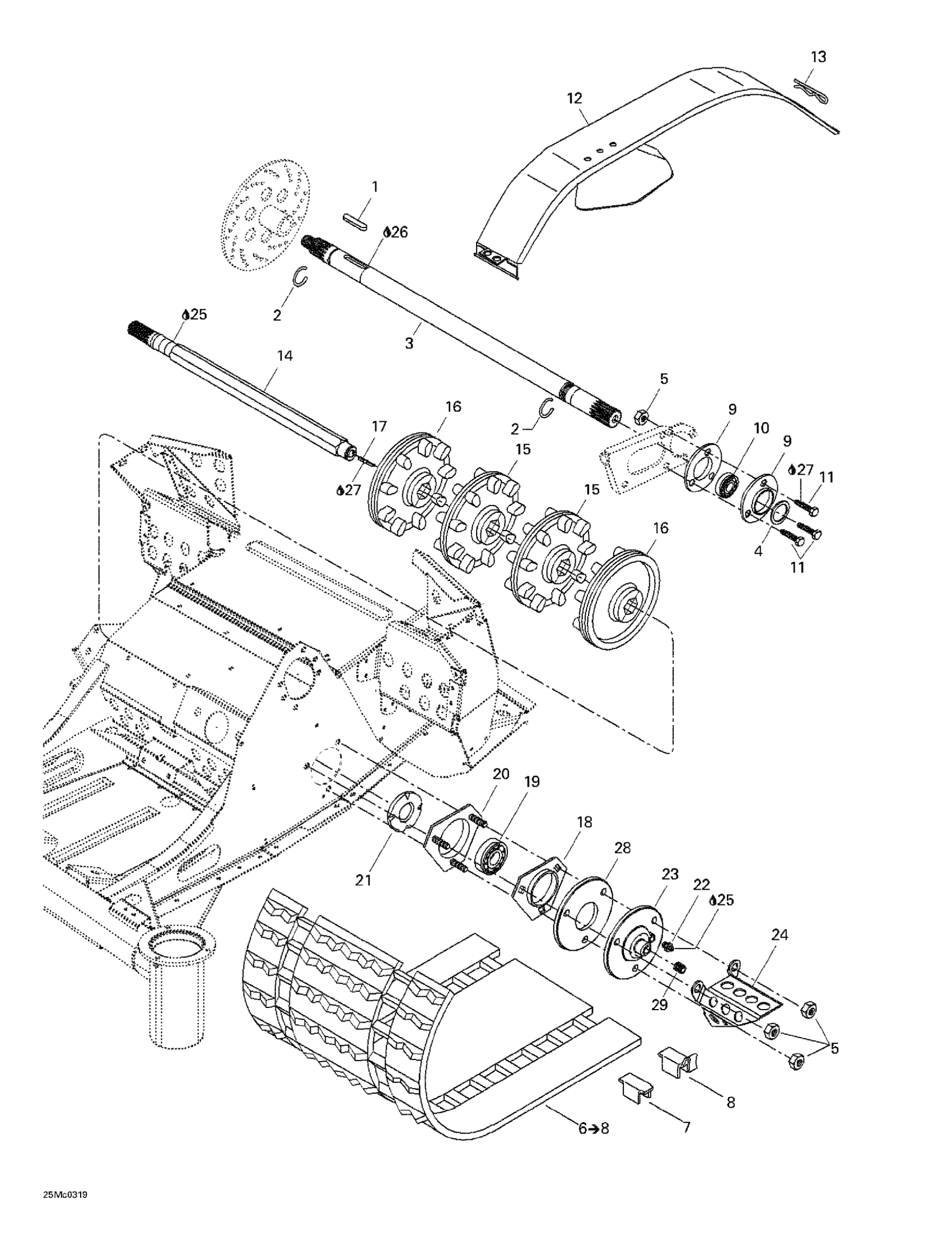

Ski-Doo Skandic LT 440F, 2003 Drive Axle And Track Diagram

#

Description
Price

1

Key

M418740

Unavailable

2

Circlip

371910000

$0.98

3

SHAFT-COUNTER - Call your local BRP dealership

M5146089

$233.05

4

Shim

M548001

$19.97

5

Hex. Elastic Stop Nut M8

232581414

$0.47

6

TRACK-ASSY 15X156X1.00 - Call your local BRP dealership

M13057

Unavailable

7

CLEAT - Call your local BRP dealership

M5318329

$6.89

8

CLEAT-GUIDE - Call your local BRP dealership

M5318330

$4.58

9

Flange - Call your local BRP dealership This part replaces M5346237.

5346237

Unavailable

10

BALL BEARING - Call your local BRP dealership

504152008

$32.28

11

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

12

Belt Guard

M5145964

Unavailable

13

Pin This part replaces M5442726.

5442726

$7.31

14

Drive Axle

M5246310

Unavailable

15

Sprocket

M539750

Unavailable

16

SPROCKET - Call your local BRP dealership

M5342920

$21.51

17

Speed Drive Insert This part replaces M542013.

542013

Unavailable

18

FLANGE - Call your local BRP dealership

501025000

Unavailable

19

Ball Bearing

293350060

$38.49

20

BEARING HOUSING - Call your local BRP dealership

504151860

$9.71

21

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

22

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

23

Flange, Speedo Drive Insert

504151836

Unavailable

24

CABLE PROTECTOR - Call your local BRP dealership

517290100

$8.43

25

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

27

Loctite 271, 10 ml

293800005

$20.77

28

Washer

M5446641

Unavailable

29

Bushing

M5446614

Unavailable
