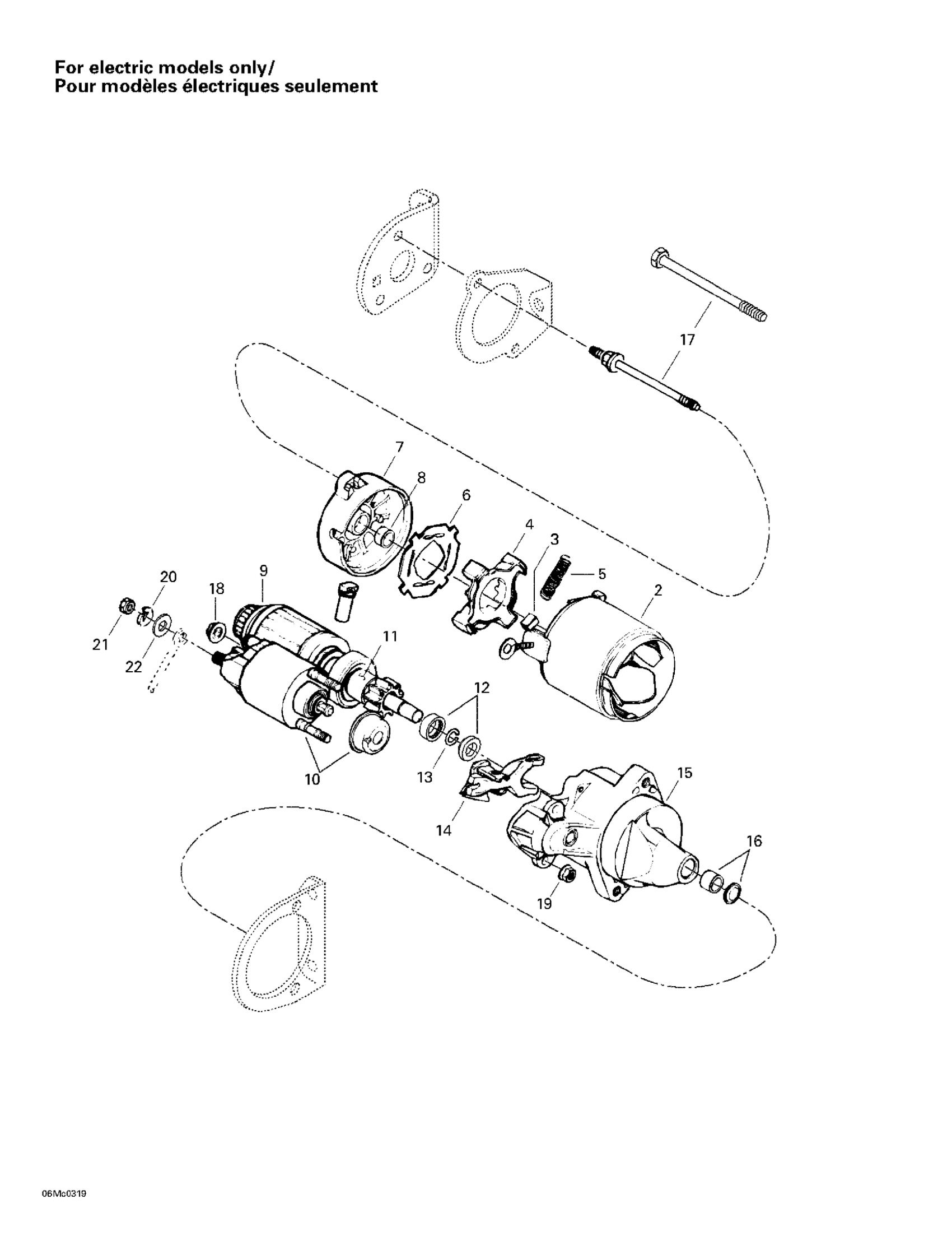

Ski-Doo Skandic LT 440F, 2003 Electric Starter (for Electric Models Only) Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

Unavailable

2

HOUSING STARTER - Call your local BRP dealership

410209500

$126.89

3

BRUSH - Call your local BRP dealership

410209600

Unavailable

4

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

5

BRUSH SPRING - Call your local BRP dealership

410209800

$1.91

6

INSULATOR - Call your local BRP dealership

410209900

Unavailable

7

Housing

410210000

Unavailable

8

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

9

Armature Assy.

410210200

Unavailable

10

SWITCH ASSY. - Call your local BRP dealership

410210300

$194.99

11

STARTER CLUTCH - Call your local BRP dealership

410210400

$201.51

12

NUT - Call your local BRP dealership

410212500

$28.43

13

CIRCLIP - Call your local BRP dealership

410212600

$4.77

14

LEVER - Call your local BRP dealership

410210700

Unavailable

15

Housing

410210800

Unavailable

16

BRASS BUSHING - Call your local BRP dealership

410210900

$8.77

17

BOLT - Call your local BRP dealership

410212000

$10.00

18

NUT - Call your local BRP dealership

410211100

$4.77

19

NUT - Call your local BRP dealership

410211200

$4.77

20

Lock Washer 8 mm

234181401

$0.89

21

NUT - Call your local BRP dealership

M33003

Unavailable

22

Flat Washer 8 mm

234081410

$0.69
