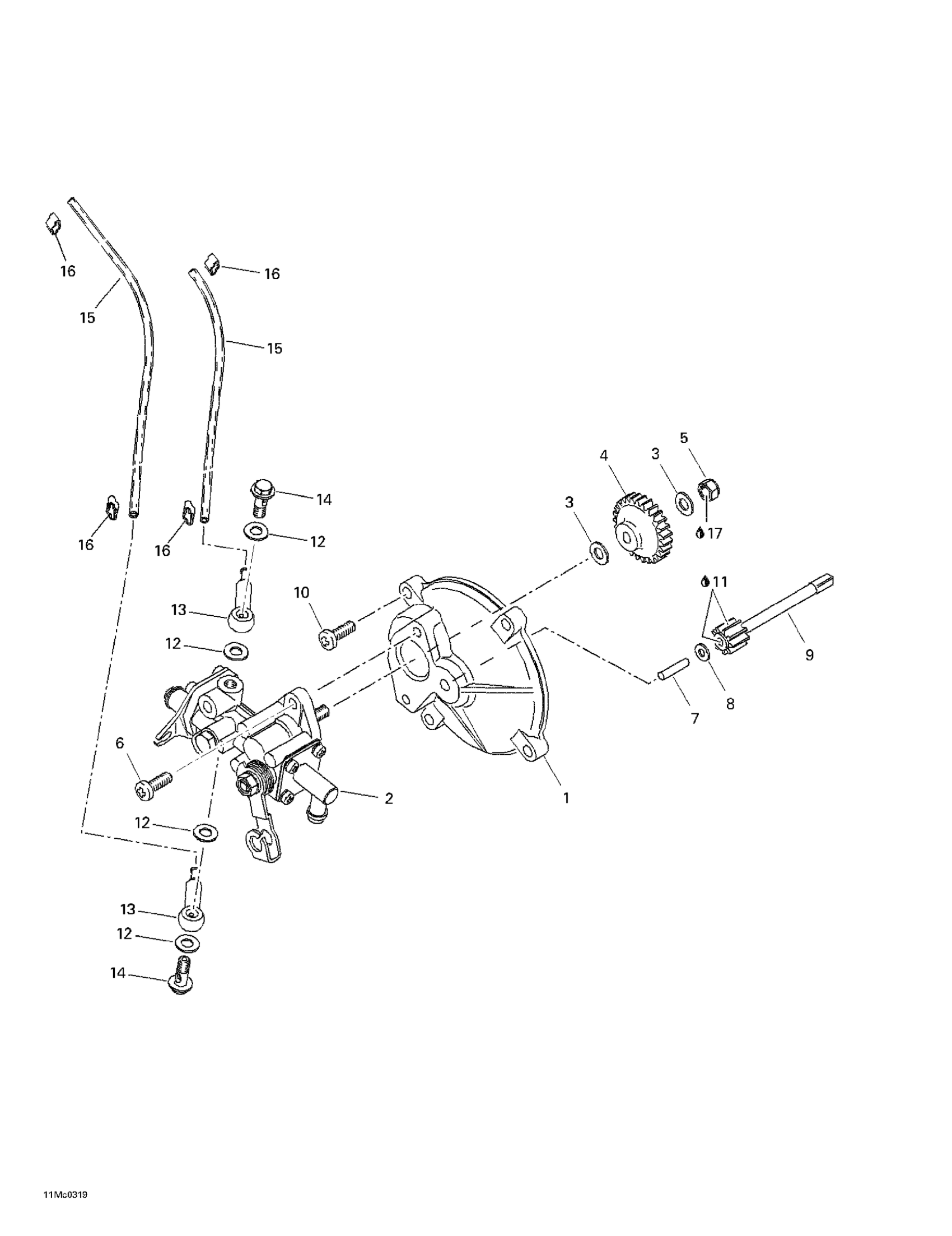

Ski-Doo Skandic LT 440F, 2003 Oil Injection System Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

OIL PUMP ASS?Y - Call your local BRP dealership

420887996

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$14.10

5

Elastic Stop Nut M6

232561414

$1.78

6

Screw

420841971

$2.82

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$0.81

9

Gear, 9 Teeth

420935970

$14.90

10

Screw

420841971

$2.82

11

Dow Corning 111, 150 g

413707000

$59.99

12

Sealing Washer

404146600

$0.72

13

Valve Ass’Y

420956010

$16.39

14

Banjo Bolt M6 X 16

404146800

Unavailable

15

Oil Hose 1500Mm Long

219704404

$15.64

16

Clamp

420853840

$4.15

17

Loctite 243, 10 ml

293800060

$21.49
