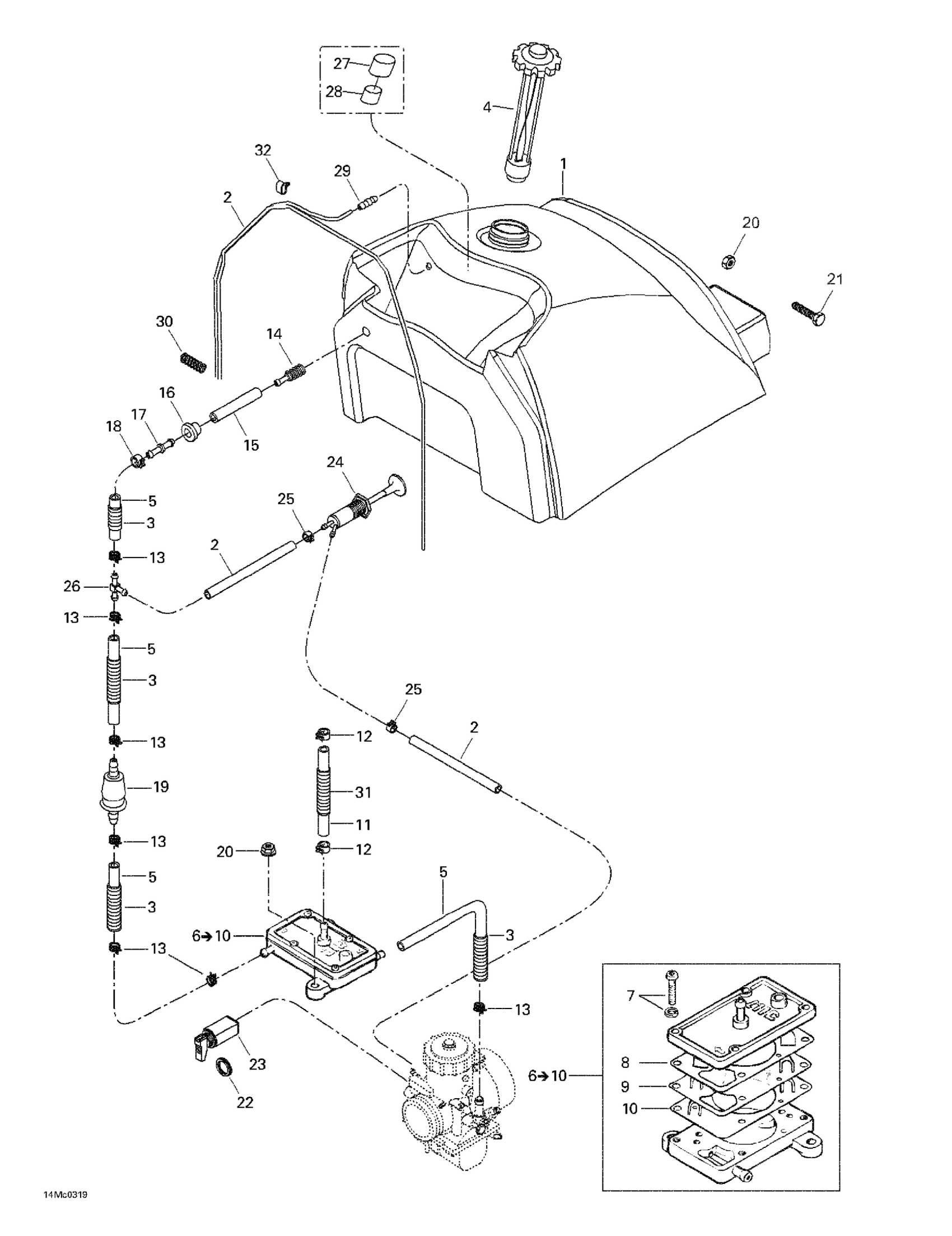

Ski-Doo Skandic LT 440F, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M5145048

Unavailable

2

HOSE - Call your local BRP dealership

M39035

$8.37

3

HOUSING - Call your local BRP dealership

M28012

$12.77

4

Fuel Tank Cap

572161200

$36.89

5

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

6

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

Unavailable

7

Screw

420841460

Unavailable

8

Gasket

420831935

Unavailable

9

Pump-diaphragm

420861137

Unavailable

10

Gasket

920861135

Unavailable

11

Polyurethane Hose 10000Mm Long

219704410

$46.12

12

Spring Clamp

414420700

$0.68

13

Spring Clamp

M27086

Unavailable

14

Fuel Filter

414865700

$8.39

15

Hose

M39030

Unavailable

16

Grommet

570045500

$6.32

17

Male Connector

414518500

$3.50

18

Spring Clamp

414554800

$0.83

19

Fuel Filter This part replaces 414363600.

605352516

$17.66

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Hex. Screw

M40826

Unavailable

22

NUT-PLASTIC - Call your local BRP dealership

512059364

$6.66

23

CABLE-CHOKE - Call your local BRP dealership | Includes 33 to 34

M524046

$46.89

24

Primer

415060500

$33.05

25

Not Available As Spare Part - Friction Washer

Unavailable

26

T Fitting

M21067

Unavailable

27

Rubber Bumper

M5441703

Unavailable

28

HOLDER - Call your local BRP dealership

M5446811

$13.43

29

Nipple

404153400

$11.51

30

SPRING - Call your local BRP dealership

M25006

Unavailable

31

HOUSING - Call your local BRP dealership

M28015

$12.83

32

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable
