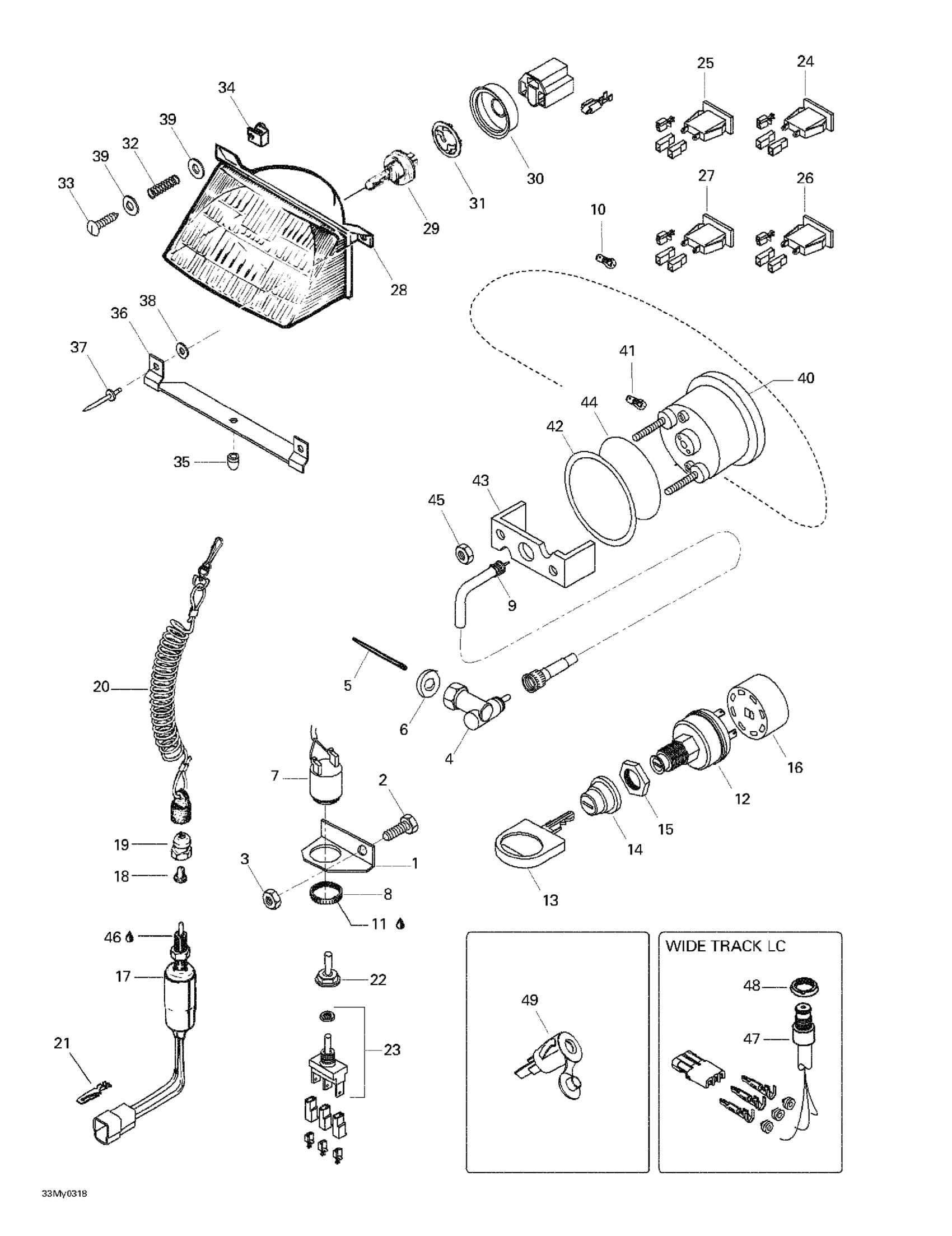

Ski-Doo Skandic 600, 2003 10- Electrical System Diagram

#

Description
Price

1

Support

M549459

Unavailable

2

Hex. Screw M6 X 16

207161644

$0.74

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$139.99

5

Square Pin Nska L=75Mm This part replaces M45075.

45075

$19.49

Tige Vitesse *Branch-Key This part replaces M45009.

45009

$30.49

6

Washer

M5444186

Unavailable

7

Back-Up Alarm

414792102

$149.99

8

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

9

Speedometer Cable This part replaces M5344162.

5344162

$81.99

10

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

11

Silicone Sealant 51388, 300 ml

296000309

$36.99

12

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

13

Blank Key

415129350

$26.49

14

Switch Boot

570013700

$11.49

15

FACE NUT - Call your local BRP dealership

410112100

Unavailable

16

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

17

Brake Switch

515175653

$19.49

18

Plunger Cap

570151100

$9.85

19

Switch Nut

515145900

$12.12

20

Cap Ass'y

515178283

$38.99

DESS

515178284

$84.99

21

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

22

Switch Cover

515175281

$15.99

23

Heat Grip Switch

410110700

$31.99

24

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

25

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

26

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

27

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

28

Headlamp | Includes 53 to 56

410609300

Unavailable

29

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

30

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

31

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

32

Spring

517168600

$7.39

33

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

34

Projector Nut

572078600

Unavailable

35

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

36

HOLDER - Call your local BRP dealership

M539864

Unavailable

37

Rivet

M36489

Unavailable

38

Washer 5,3 mm

20008

$0.74

39

Flat Washer M5

234051410

$0.53

40

Speedometer, Mph

515175336

Unavailable

Speedometer, Kmh

515175335

Unavailable

41

Bulb 12V-1.7W

515175929

Unavailable

42

Washer

517258500

Unavailable

43

Case Holder

414806500

Unavailable

44

O-Ring

414807100

Unavailable

45

NUT M5 - Call your local BRP dealership

M33062

Unavailable

46

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

47

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

48

Safe Nut Switch | Skandic 600.

276000508

Unavailable

49

DC Outlet

710001248

$37.99
