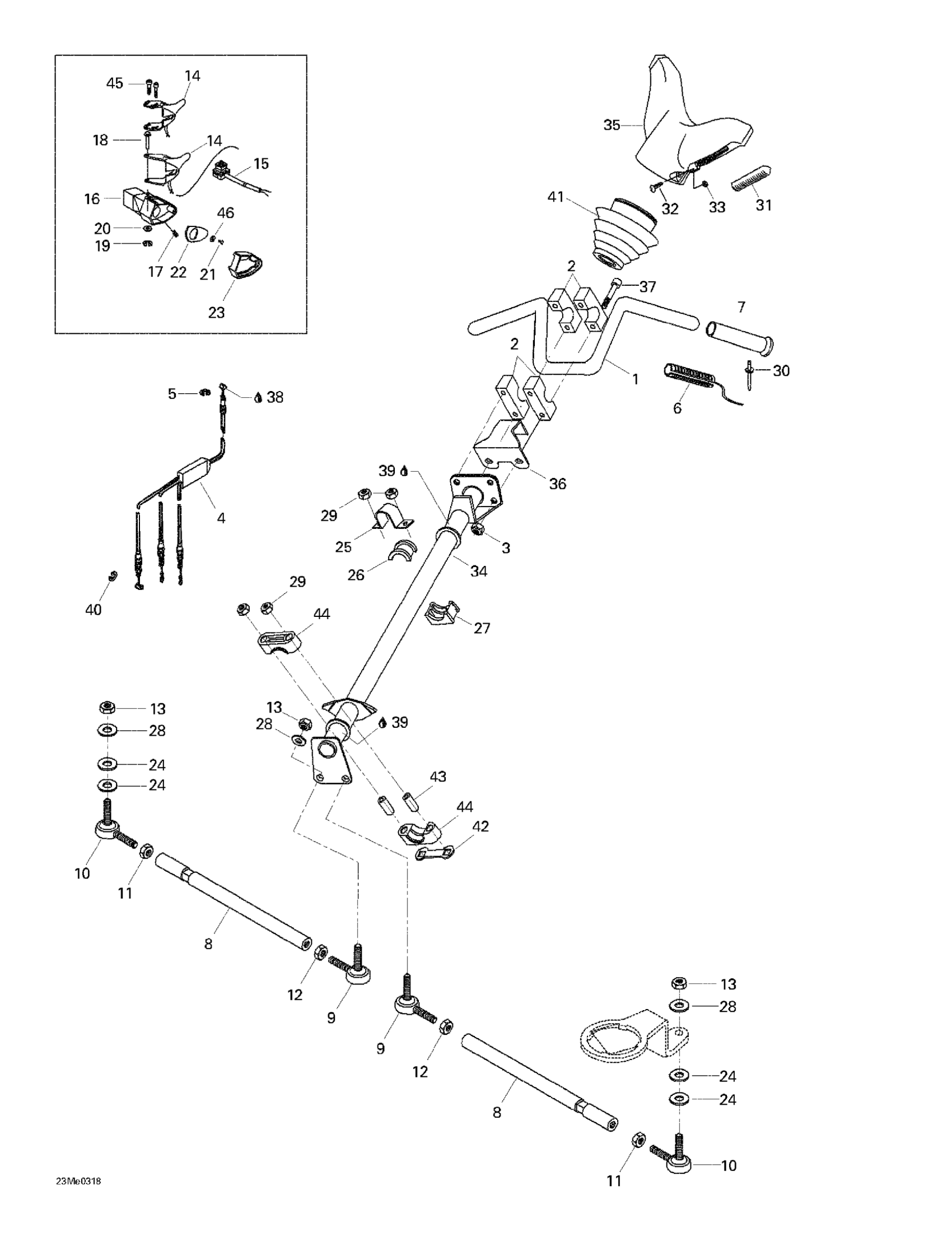

Ski-Doo Skandic 600, 2003 07- Steering System Diagram

#

Description
Price

1

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

2

Support Guidon *Support-Steer.

M548448

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

$0.56

4

Throttle Cable - Call your local BRP dealership This part replaces M5244975.

5244975

$119.99

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

5

Circlip

M31038

Unavailable

6

Heating Grip

515175664

$71.99

7

Grip | WAKE This part replaces M5340464.

506152483

$12.17

8

Rh Tie Rod

M548983

Unavailable

Tie Rod LH

M5441066

Unavailable

9

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

10

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

11

RH NUT - Call your local BRP dealership

M33019

Unavailable

12

LH NUT - Call your local BRP dealership

M33017

Unavailable

13

Elastic Flange Nut M10

232501416

$1.48

14

Handle Ass'y

512060214

$124.99

Handle Ass'y

512059348

$93.99

15

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

16

Throttle Housing

512060603

$12.49

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

17

Socket Set Screw M8 X 10

414440800

$4.12

18

Lever Pin

414438700

$11.64

19

Circlip | Model-RS

414439000

$4.23

20

Flat Washer M5, Stainless

234051600

$0.77

21

Screw

414473200

Unavailable

22

Plate

512060390

$10.33

23

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

24

Washer

M31014

Unavailable

25

Retaining Support

M5343381

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Bushing

572064400

Unavailable

28

Lock Washer

M20015

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Rivet

36005

$2.11

31

Key Way

572023900

Unavailable

32

Screw

M40156

Unavailable

33

NUT M5 - Call your local BRP dealership

M33062

Unavailable

34

Main Tube | Skandic 500F. Skandic 600.

M5244297

Unavailable

Main Tube

M5245968

Unavailable

35

Steering Padding

572023800

Unavailable

36

Support

M5444196

Unavailable

37

Socket Head Screw M8 X 45

M40286

Unavailable

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

40

Circlip

414753500

$0.71

41

Bellow

M539033

Unavailable

42

Stopper Plate

506150600

$4.39

43

Housing Bushing

506150500

$7.99

44

Housing Half

506150400

$7.62

45

Flange Screw

732601143

$4.12

46

Washer | Skandic 600.

M20026

Unavailable
