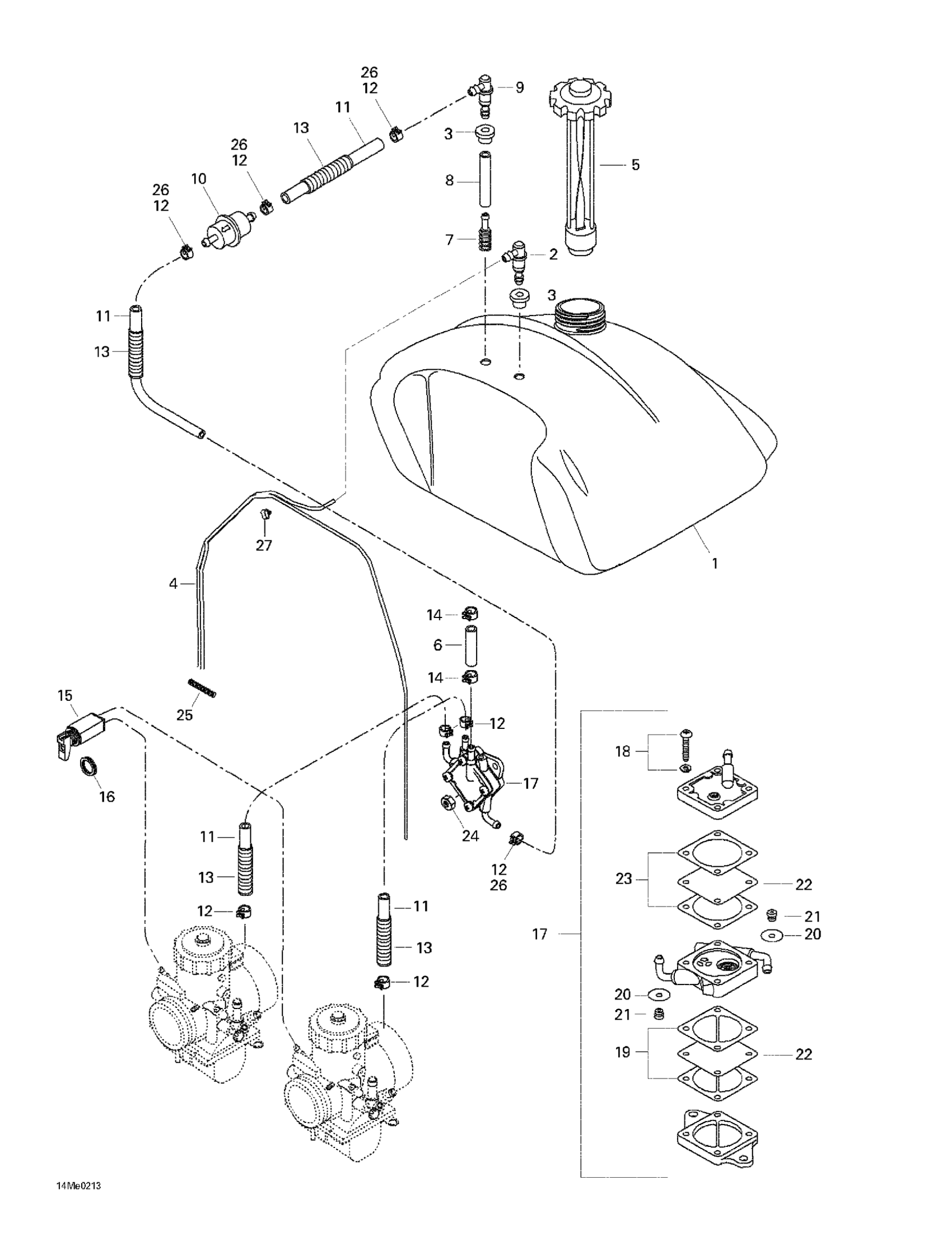

Ski-Doo Skandic 600, 2003 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Male Connector This part replaces M533535.

533535

$19.49

3

Grommet

280000674

$4.69

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

Fuel Tank Cap

572161200

$38.99

6

Polyurethane Hose 10000Mm Long

219704410

$56.99

7

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

8

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

9

CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.

5341709

$13.49

10

Fuel Filter This part replaces 414363600.

605352516

$18.49

Filter

414536500

$4.02

11

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

12

Spring Clamp

M27086

Unavailable

13

HOUSING - Call your local BRP dealership

M28012

Unavailable

HOUSING - Call your local BRP dealership

M28015

Unavailable

14

Spring Clamp

414420700

$0.72

15

Choke This part replaces M535482.

535482

$73.99

16

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

17

FUEL PUMP - Call your local BRP dealership | SUV 550

403800600

Unavailable

17

Fuel Pump

M19113

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

GASKET - Call your local BRP dealership

404902300

Unavailable

20

GROMMET - Call your local BRP dealership

404902100

Unavailable

21

VALVE - Call your local BRP dealership

275500042

Unavailable

22

DIAPHRAGM - Call your local BRP dealership

404902200

Unavailable

23

GASKET - Call your local BRP dealership

404902400

Unavailable

24

Elastic Stop Nut M6

232561414

$0.55

25

SPRING - Call your local BRP dealership

414818200

Unavailable

26

Spring Clamp

414415200

$0.88

27

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable
