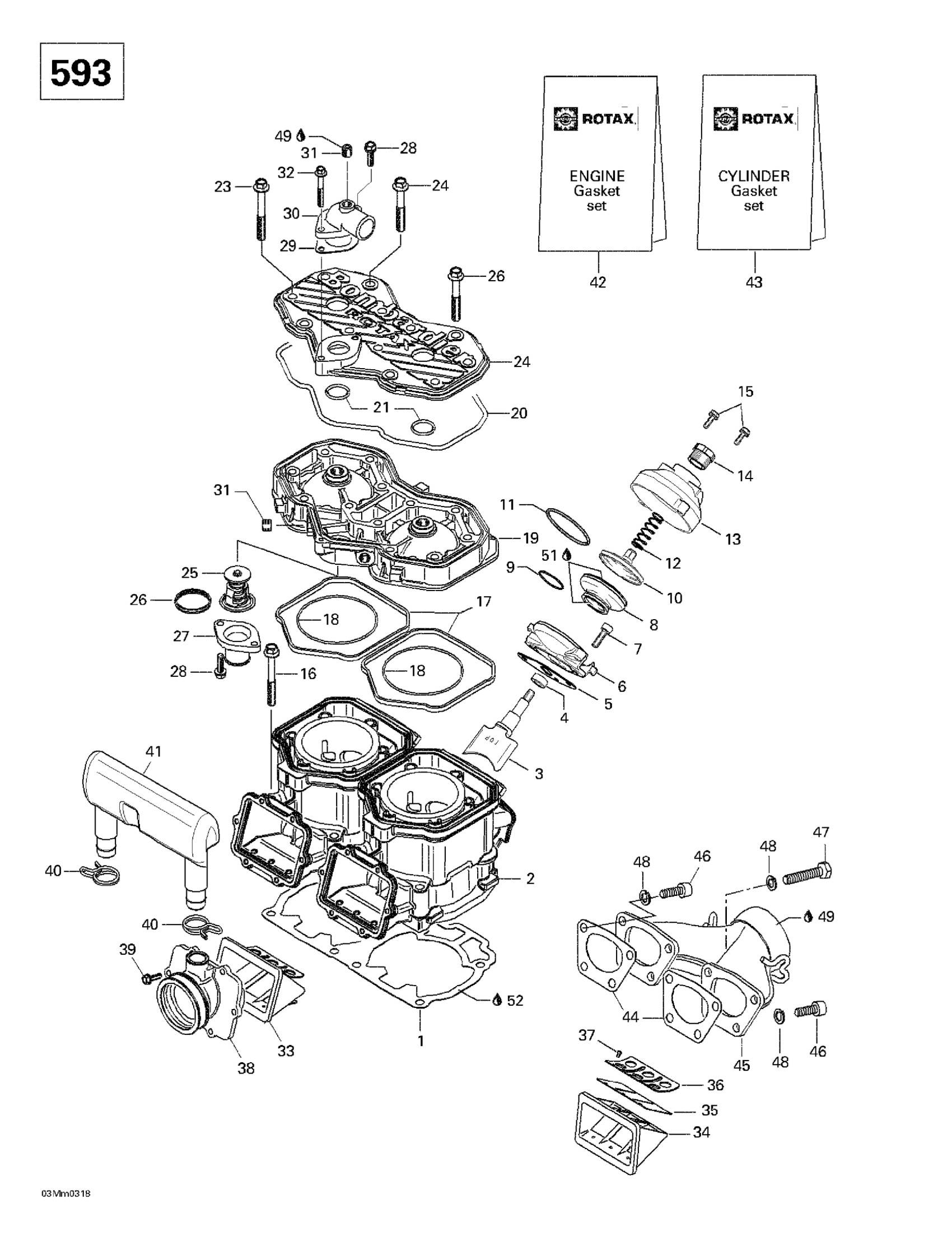

Ski-Doo Skandic 600, 2003 01- Cylinder, Exhaust Manifold (593) Diagram

#

Description
Price

1

Gasket 0.8 mm

420431423

$25.99

Gasket 0.7 mm

420431422

$27.49

Gasket 0.6 mm

420431421

$20.49

Gasket 0.5 mm

420431420

$23.99

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

2

Cylinder With Sleeve

420613628

$425.99

2

Cylinder With Sleeve

420613628

$425.99

3

Exhaust Valve

420854371

$59.49

4

Oil Seal | Included in gasket kit

420950732

$9.27

5

Gasket

420250239

$7.37

6

Valve Housing

420854266

$96.49

7

Socket Head Screw M6 X 20

205062044

$1.26

8

Exhaust Bellows

420260723

$42.49

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

SPRING - Call your local BRP dealership

420239948

Unavailable

13

Valve Cover

420911552

$38.99

14

Adjuster Screw

420241221

$14.22

15

Hex. Tapping Screw M5 X 20

420841555

$1.69

16

Hex. Screw M8 X 68.5 | Skandic 600.

420841951

Unavailable

17

Rubber Ring

420931590

$6.19

18

O-Ring This part replaces 420850540.

293300026

$3.39

19

CYLINDER HEAD - Call your local BRP dealership

420923459

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$14.28

21

O-Ring

420430782

$5.39

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

24

Hex. Screw M8 X 56.5

420941627

$8.57

25

Thermostat This part replaces 414834100.

420922519

$63.99

26

Sealing Ring

420931272

$15.89

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

29

Gasket

420850338

$11.60

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

Reed Valve Ass'y

420924519

$54.99

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Reed Pedal

420924532

$42.49

36

Reed Pedal Stop

420924539

$13.16

37

Phillips Screw M3 X 5

420941215

$1.69

38

CARBURETOR SOCKET - Call your local BRP dealership

420867860

Unavailable

39

Taptite Screw M5 X 16

420941928

Unavailable

40

CLAMP - Call your local BRP dealership

420851440

Unavailable

41

Intake Resonator

420867815

Unavailable

42

Gasket Set, Engine

420893070

$216.99

43

Gasket Set, Cylinder

420893075

$174.49

44

Gasket

420931610

$11.65

45

Branch-Y This part replaces M5245177.

5245177

$539.99

46

Socket Head Screw M8 X 30

M40135

Unavailable

47

Hex. Screw M8 X 20

207182044

$0.74

48

Lock Washer 8 mm

234181401

$0.92

49

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

50

Loctite 243, 10 ml

293800060

$21.49

51

Dow Corning 111, 150 g

413707000

$59.99

52

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
