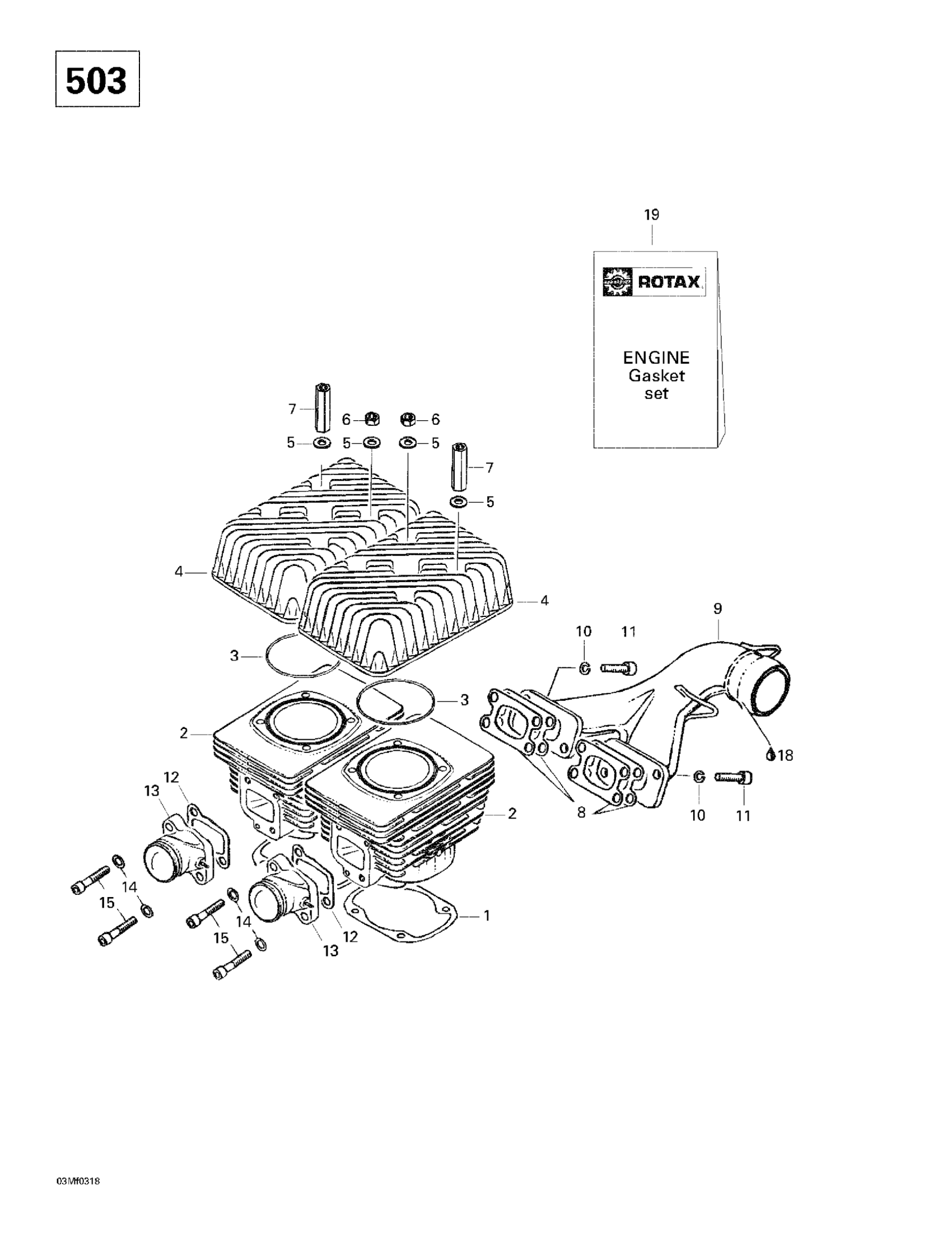

Ski-Doo Skandic 600, 2003 01- Cylinder, Exhaust Manifold (503) Diagram

#

Description
Price

1

Gasket 0.4 mm

420831858

$13.16

2

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

2

REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.

421000500

Unavailable

3

O-Ring This part replaces 420850540.

293300026

$3.39

4

CYLINDER HEAD - Call your local BRP dealership

420923590

Unavailable

5

Flat Washer 8.4 mm

420250315

$1.15

6

Hex. Nut M8

232081414

$0.72

7

Distance Nut M8 X 47

420842204

$16.33

8

Gasket 1.0 mm

420831849

$8.85

9

EXHAUST MANIFOLD - Call your local BRP dealership

420973512

Unavailable

10

Washer-Lock Din.128

420945832

$1.15

11

Socket Head Screw M8 X 30

205083044

$1.15

12

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

13

Intake Manifold | Skandic 500F. Skandic 500F (SWT).

420867741

Unavailable

14

Washer-Lock Din.128

420945832

$1.15

15

Allen Screw M8 X 40

420840682

$3.91

16

ENGINE GASKET SET - Call your local BRP dealership

420994238

Unavailable

17

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
