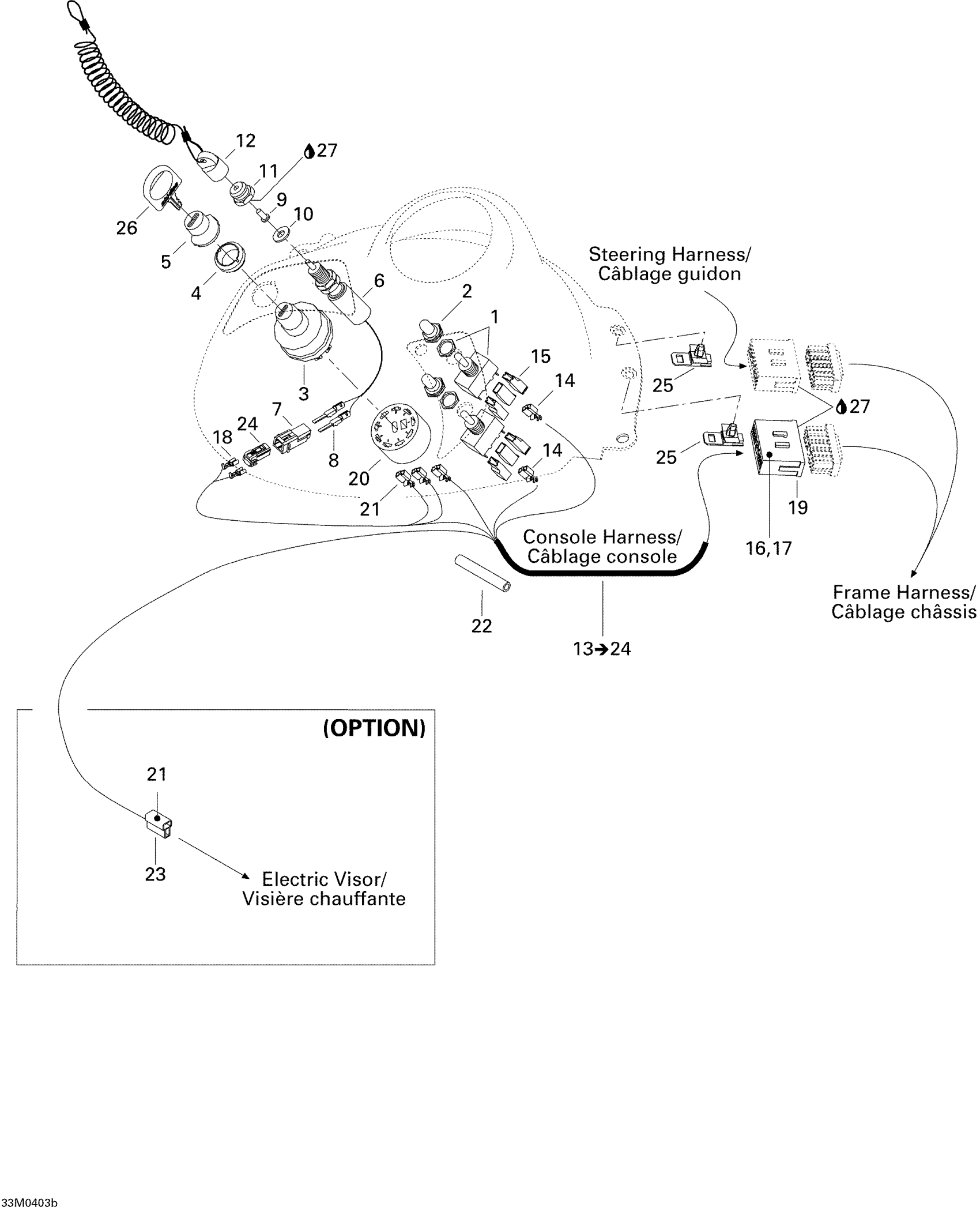

Ski-Doo Skandic 550F, 2004 Electrical System 2 (SKANDIC 550F) Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Switch Cover

515175281

$15.03

3

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

4

FACE NUT - Call your local BRP dealership

410112100

$14.29

5

Switch Boot

570013700

Unavailable

6

Brake Switch

515175653

$15.57

7

Male Terminal Housing, 2 Circuits

515175654

$7.48

8

Male Terminal

515175232

$1.49

9

Plunger Cap

570151100

$10.14

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Switch Nut

515145900

$10.83

12

Cap Ass'y

515178283

$37.66

13

Console Harness, Not Shown

515175623

Unavailable

14

Female Terminal

409010100

$5.46

15

Female Terminal Housing, 1 Circuit

409010400

$7.48

16

Male Terminal

515175232

$1.49

17

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

18

Female Terminal

515175231

Unavailable

19

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

20

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

21

Female Terminal

561503100

Unavailable

22

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

23

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

24

Female Housing, 2 Circuits

515175658

Unavailable

25

Housing Support

515175283

$8.43

26

Blank Key

415129350

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
