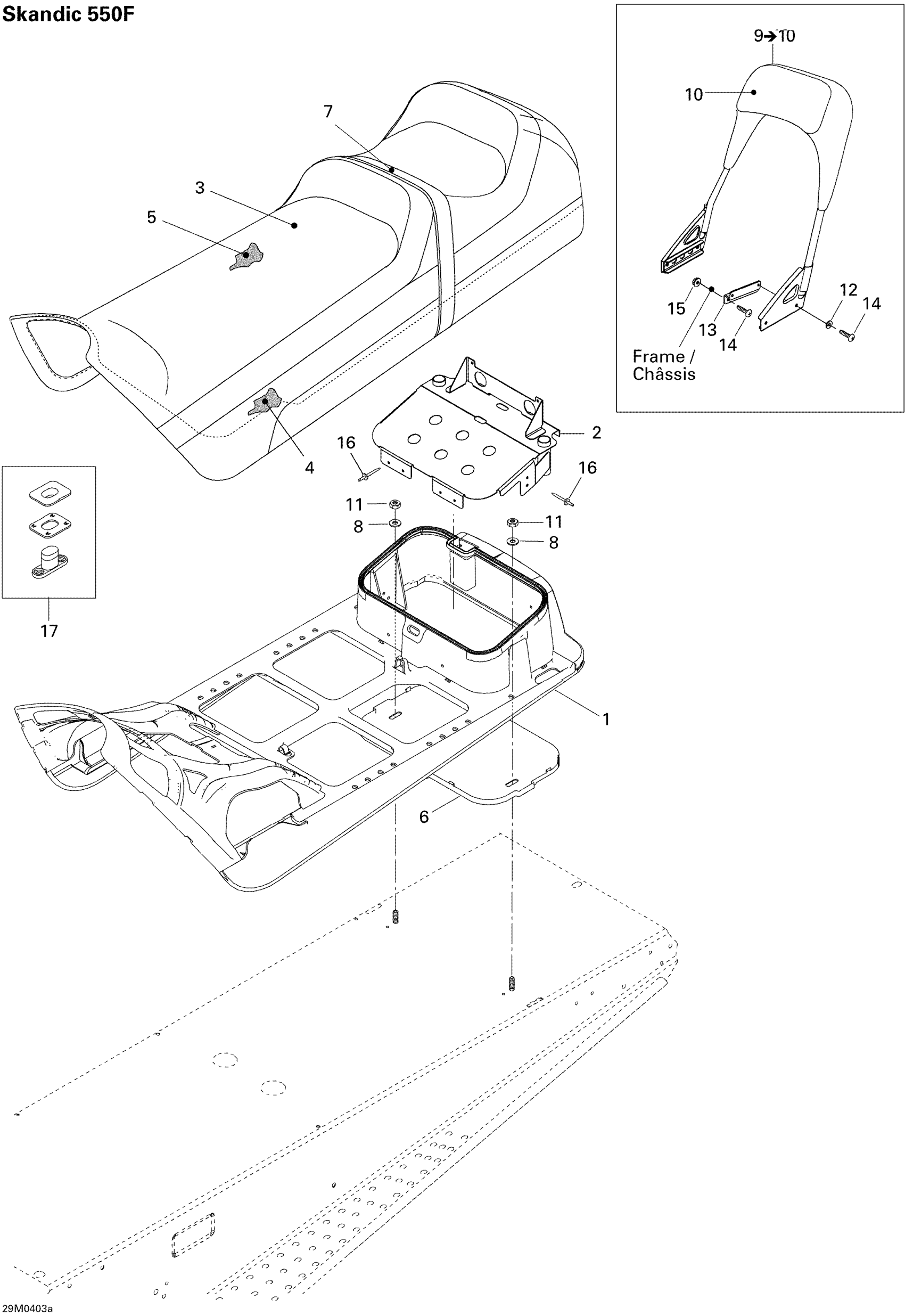

Ski-Doo Skandic 550F, 2004 Seat SKANDIC 550F Diagram
#
Description
Price
1
Sub-Seat
510003980
Unavailable
2
Seat Painted Support
510003976
Unavailable
3
SEAT COVER - Call your local BRP dealership
510004105
Unavailable
4
SEAT FOAM - Call your local BRP dealership
510003944
Unavailable
5
Foam Seat
510004256
Unavailable
6
UNDER CHEST - Call your local BRP dealership
572107601
Unavailable
7
Seat Belt
510004038
Unavailable
9
Seat Backrest Ass’Y | GT 380F, Includes Items 25 to 26
510004068
Unavailable
10
Backrest Cover | GT 380F
510004071
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Lock Washer 8 mm, Stainless
234181601
Unavailable
13
Z-Plate | GT 380F
510003609
Unavailable
14
Hex. Screw M8 X 20
236282084
Unavailable
15
Hex. Flange Elastic Nut M8
233281414
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
