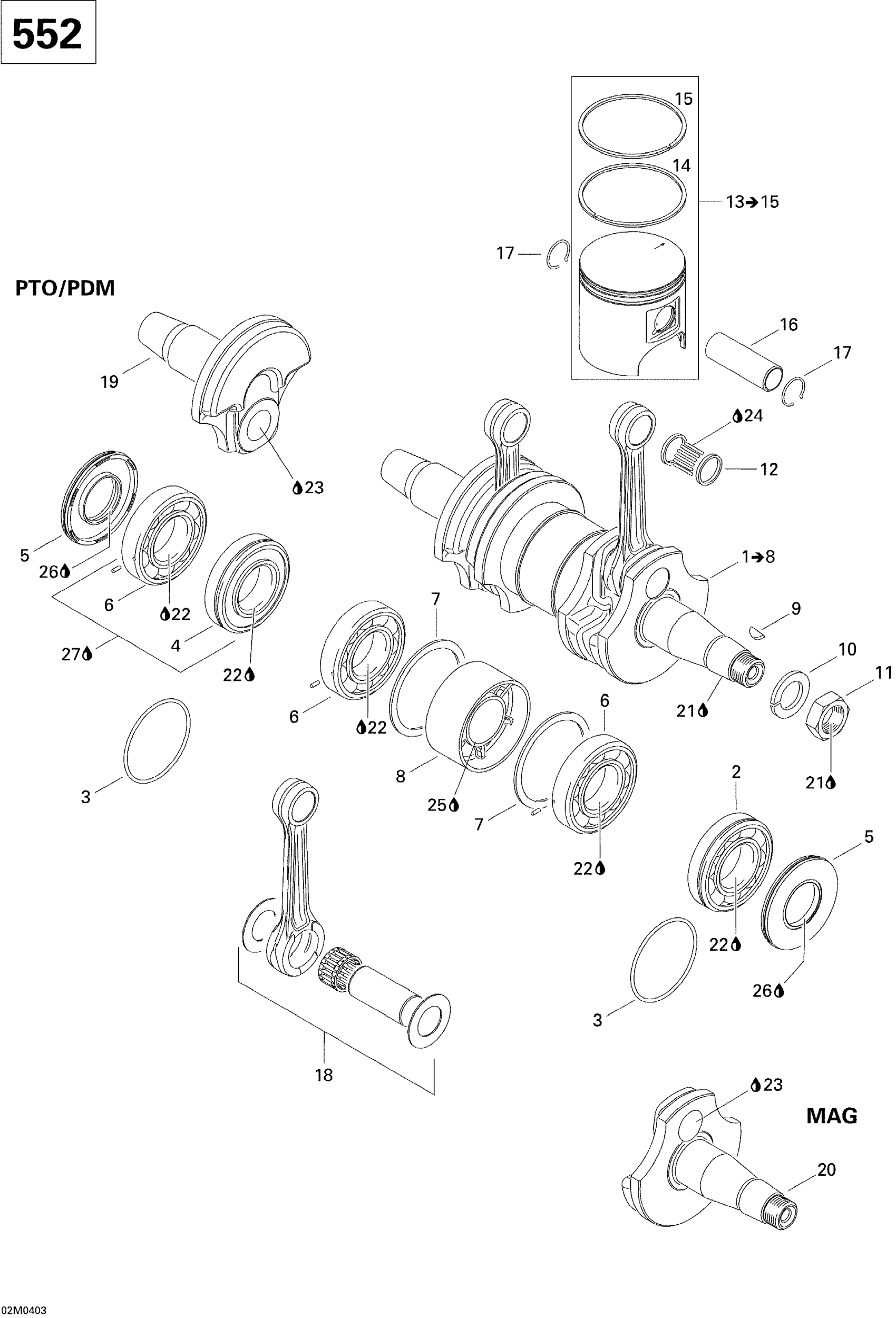

Ski-Doo Skandic 550F, 2004 Crankshaft, SKANDIC 550F Diagram

#

Description
Price

1

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

420889066

$1,154.99

2

Ball Bearing

420832571

$79.49

3

O-Ring, 64 mm X 2 mm

293300022

$10.58

4

Ball Bearing

420832632

$100.74

5

Oil Seal This part replaces 290831952.

420831952

$14.27

6

Ball Bearing

420832573

$35.72

7

Retaining Disk

420927710

$7.23

8

Labyrinth Sleeve

420850149

$34.58

9

Woodruff Key

420246055

$1.99

10

Lock Washer, 22 mm

420945759

$1.55

11

Hex. Nut, M22 X 1.5

420842239

$14.27

12

NEEDLE BEARING - Call your local BRP dealership

420832420

Unavailable

13

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$174.58

13

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$174.58

13

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$174.58

14

Rectangular Ring, Standard

420815300

$25.99

14

Rectangular Ring, 1st

420815301

$25.99

14

Rectangular Ring, 2nd

420815302

$25.99

15

Semi-Trapez Ring, Standard

420815155

$52.99

15

Semi-Trapez Ring, 1st

420815156

$52.99

15

Semi-Trapez Ring, 2nd

420815157

$51.99

16

Piston Pin

420916407

$26.89

17

Piston Circlip

420845106

$3.52

18

Rod Repair Kit

420889064

Unavailable

19

CRANKSHAFT PTO SIDE - Call your local BRP dealership

420819181

Unavailable

20

Half Crankshaft (MAG)

420819213

Unavailable

21

Loctite 243, 10 ml

293800060

$20.77

22

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

23

Sealant Loctite 648

219703000

$35.72

24

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Petamo Grease, GHY133N, 400 g

420899271

$57.17

27

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
