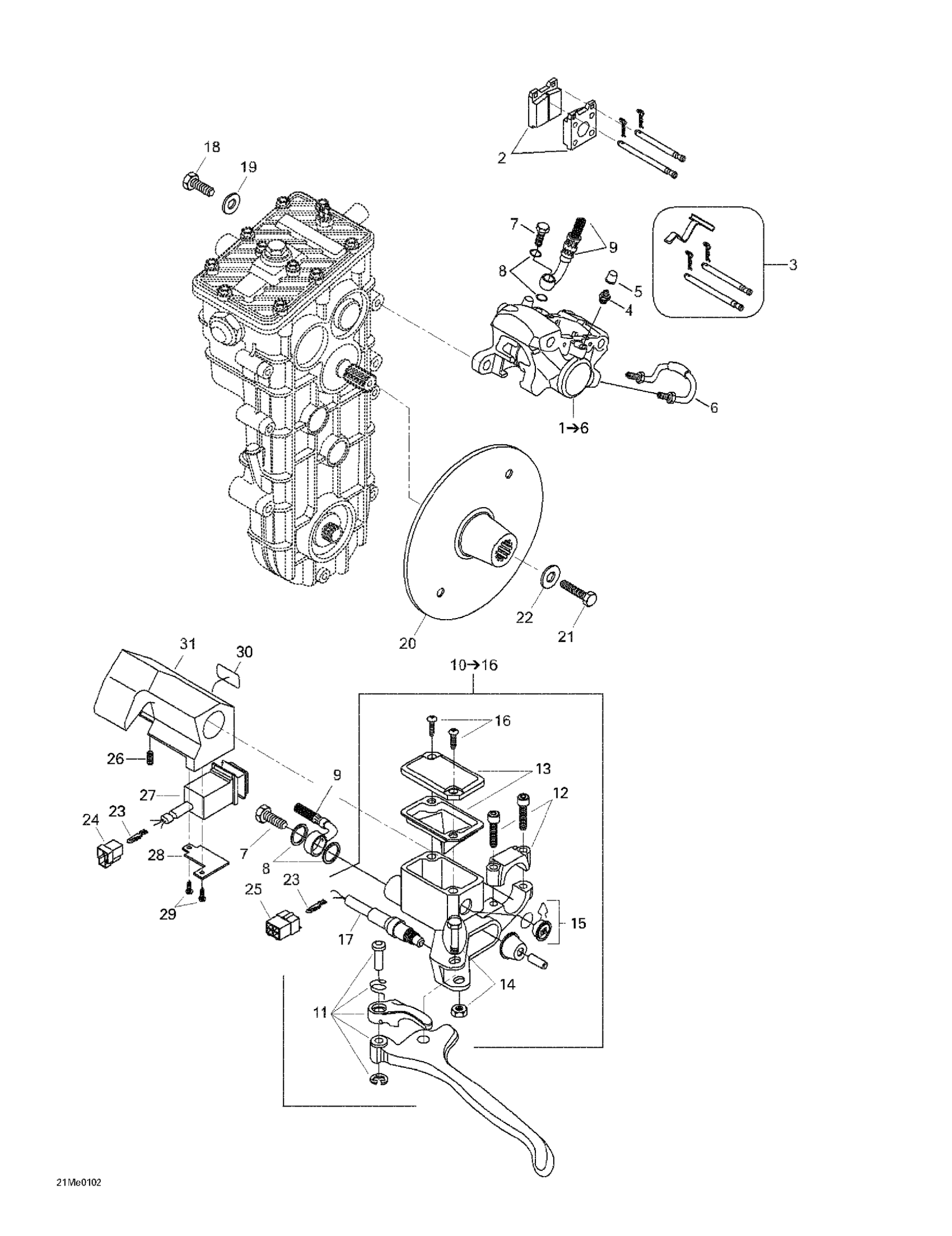

Ski-Doo Skandic 500F/600, 2001 06- Brake Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Banjo Bolt

414920500

$8.68

8

Washer

414920600

$1.90

9

HOSE - Call your local BRP dealership

507032219

Unavailable

10

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

11

LEVER - Call your local BRP dealership

507032428

Unavailable

12

Clamp And Screw Kit

507032477

$23.99

13

Cap

415029900

$41.49

14

Pin Ass'y

415030000

$19.99

15

WINDOW - Call your local BRP dealership

414990600

Unavailable

16

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

17

Microswitch

507032366

$98.99

18

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

Unavailable

19

Lock Washer D10

20068

$2.00

20

Brake Disc

605353250

$206.49

21

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

22

Washer

M546336

Unavailable

23

Male Terminal

M42031

Unavailable

24

Male Housing

M42036

Unavailable

25

Male Housing

M42122

Unavailable

26

Socket Set Screw M8 X 10

414440800

$4.12

27

Dimmer Switch

515175371

Unavailable

28

Plate | SWT 550

517283800

Unavailable

29

Screw

414473200

Unavailable

30

Switch Decal

415025500

Unavailable

31

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable
