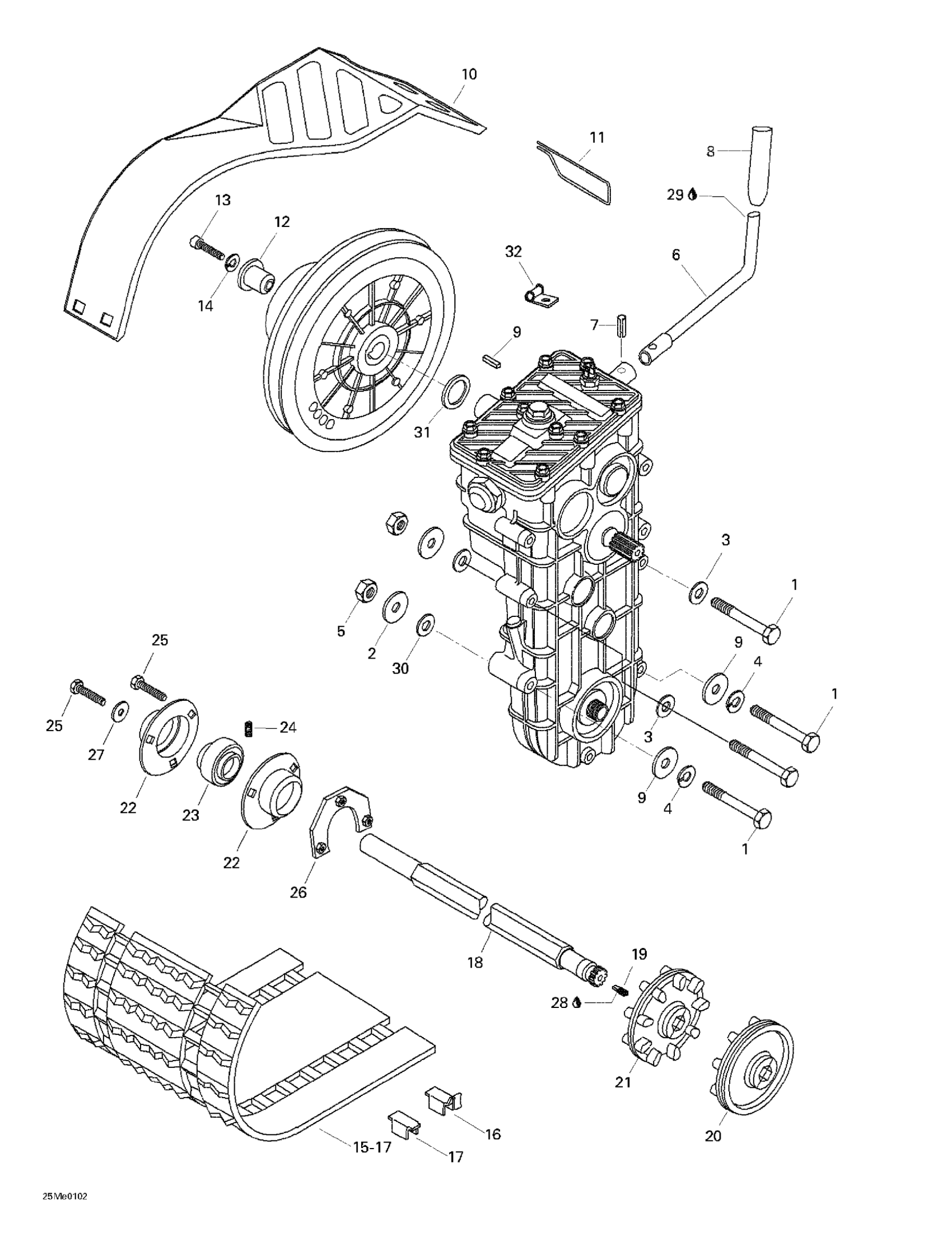

Ski-Doo Skandic 500F/600, 2001 05- Drive Axle, Track And Belt Guard Diagram

#

Description
Price

1

Screw M8 X 80

M40012

Unavailable

2

Flat Washer 8 mm

234082410

$1.47

3

Washer

M2004

Unavailable

4

Lock Washer 8 mm

234181401

$0.92

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Bras Vitesse *Arm-Shifter

M5340902

Unavailable

7

Pin Spring

M41008

Unavailable

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

8

Shift button This part replaces M28247.

28247

$30.49

9

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

10

BELT GUARD - Call your local BRP dealership

M5142660

Unavailable

11

Pin This part replaces M5442726.

5442726

$7.51

12

Sleeve This part replaces M5443201.

5443201

$47.99

Shaft Extension

M5443765

Unavailable

13

Socket Head Screw M8 X 45

M40286

Unavailable

SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership

M40290

Unavailable

14

Lock Washer 8 mm

234181401

$0.92

15

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00

Track Ass'y 600 X 3968 X 32 X 64 | Includes 3200 to 3200b

504153928

$1.00

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00

16

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

17

CLEAT - Call your local BRP dealership

M5318322

Unavailable

18

Drive Axle | Skandic 500F.

M5341662

Unavailable

Drive Axle | Skandic 500F (SWT).

M539815

Unavailable

Drive Axle This part replaces M5345117.

5345117

$269.99

19

Speed Drive Insert This part replaces M542013.

542013

$8.59

20

SPROCKET - Call your local BRP dealership

M5342920

Unavailable

HALF SPROCKET - Call your local BRP dealership

415067400

Unavailable

21

Sprocket

M539750

Unavailable

SPROCKET - Call your local BRP dealership

414931800

Unavailable

22

Bearing House This part replaces M534430.

534430

$23.99

23

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

24

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

25

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

26

Fasten Ring Weld This part replaces M546421.

546421

$40.99

27

Washer

M546336

Unavailable

28

Loctite 271, 10 ml

293800005

$26.99

29

Loctite 243, 10 ml

293800060

$21.49

30

M8 Washer This part replaces M20077.

20077

$1.48

31

Shim

M3125351

Unavailable

32

WIRE-HOLDER - Call your local BRP dealership

M5443134

Unavailable
