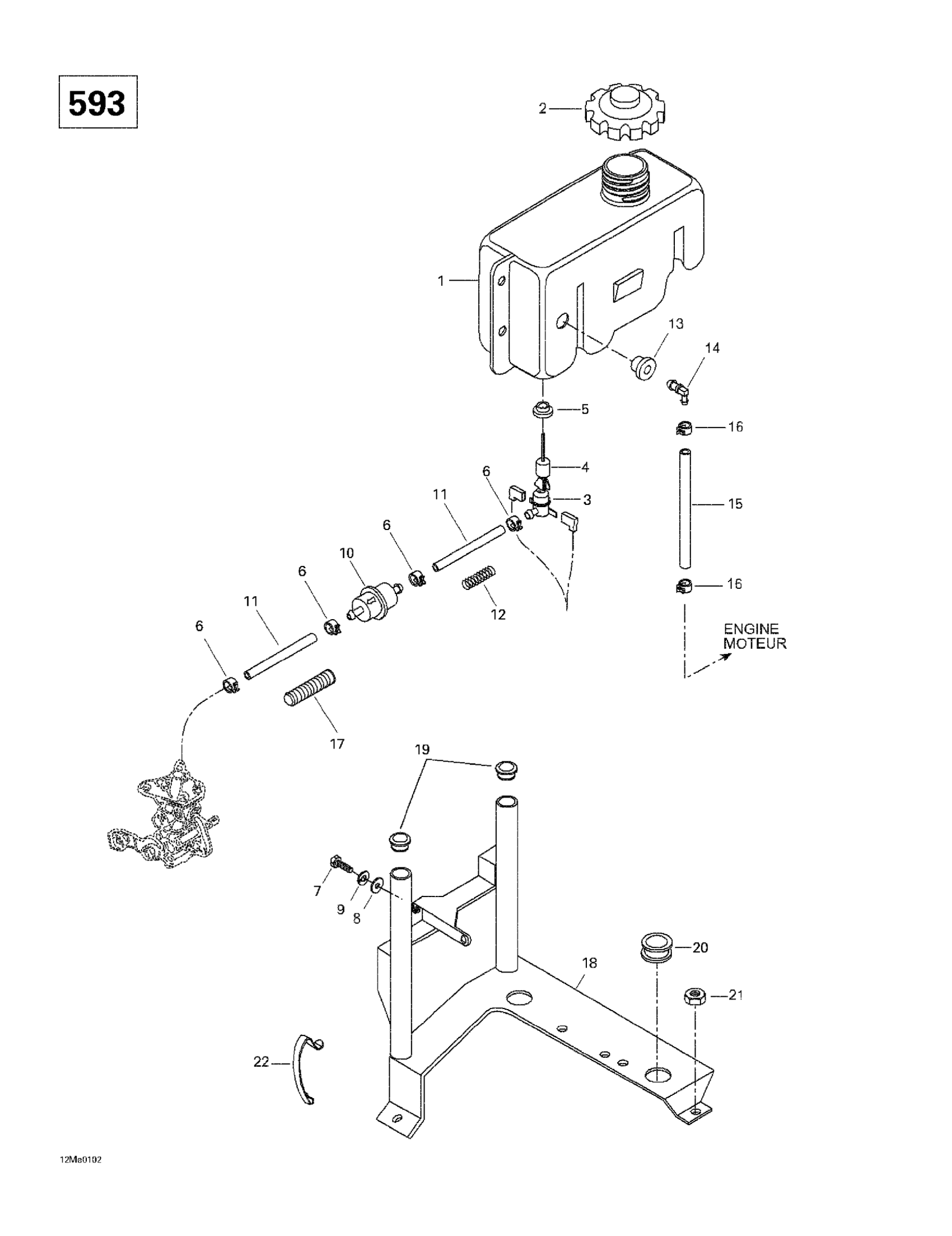

Ski-Doo Skandic 500F/600, 2001 02- Oil Tank And Support (593) Diagram

#

Description
Price

1

Oil Tank | SUV 600

M5146370

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Insulating Ring

570023000

$5.61

6

Spring Clamp

414420700

$0.72

7

Screw

M40322

Unavailable

8

Flat Washer 6 mm

234062410

$0.77

9

Lock Washer M6, Black

234161471

$0.53

10

Filter

414536500

$4.02

11

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

12

Spring

M250001

Unavailable

13

Grommet

709200285

$9.69

14

Male Connector

414580700

$4.12

15

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

16

Spring Clamp

414554800

$0.88

17

HOUSING - Call your local BRP dealership

M28015

Unavailable

18

Oil Tank Support | SUV 600

M5246593

Unavailable

19

PLUG - Call your local BRP dealership

M28136

Unavailable

20

Grommet | Skandic 600.

M28077

Unavailable

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Clip | Skandic 600.

M5446640

Unavailable
