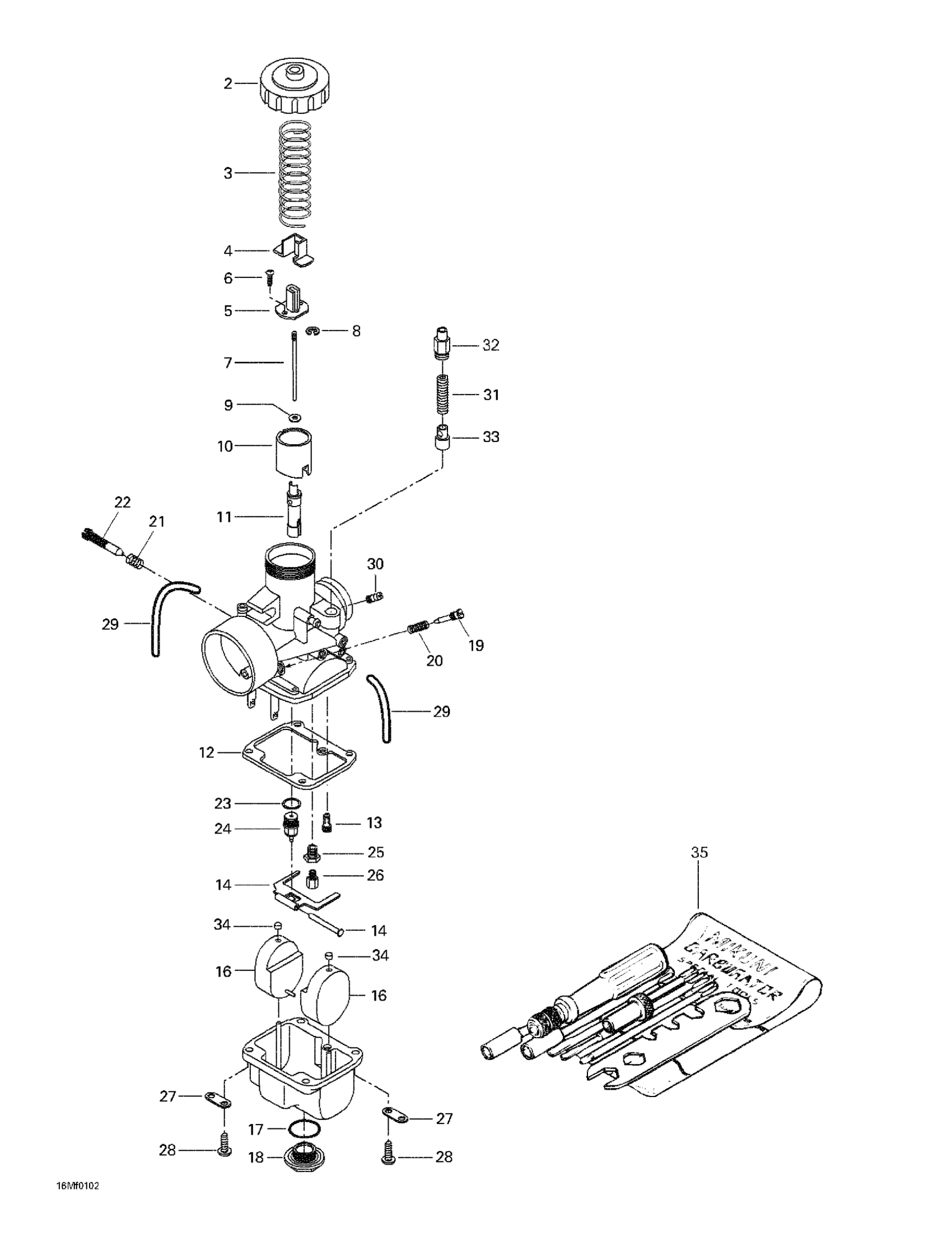

Ski-Doo Skandic 500F/600, 2001 02- Carburetors Diagram

#

Description
Price

1

Carburetor VM 34-564 | Includes 1 - 35. Skandic 500F. Skandic 500F (SWT).

M19084

Unavailable

Carburetor VM 38-444 (MAG) | Skandic 600.

M19112

Unavailable

Carburetor VM 38-443 (PTO) | Skandic 600.

M19111

Unavailable

2

Cover

404103700

$31.99

COVER - Call your local BRP dealership

404105100

Unavailable

3

Spring

404154800

$23.99

4

Cover

404122100

$19.49

5

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

6

Screw With Washer

404121300

$4.14

7

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

Jet Needle J8 6FL14 | Skandic 600.

404114100

Unavailable

8

E-Ring

404152400

$7.27

9

Packing

404117000

$3.29

10

Piston Valve 2.5

404128400

$127.49

11

Needle Jet NJ 159 | Skandic 500F. Skandic 500F (SWT).

404157100

Unavailable

NEEDLE JET NJ 480 P-9 - Call your local BRP dealership

404161805

Unavailable

12

Gasket | Includes 1900a to 1900am

404104200

$6.38

GASKET - Call your local BRP dealership

404104700

Unavailable

13

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

14

Lever Pin

404103300

$6.27

15

Float Lever

404107600

$22.99

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

16

FLOAT - Call your local BRP dealership

404107100

Unavailable

FLOAT - Call your local BRP dealership

404105400

Unavailable

17

O-Ring

404107300

$9.06

O-RING - Call your local BRP dealership

404101500

Unavailable

18

Drain Plug Screw

404107400

$22.99

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

19

Air Screw

404102300

$14.35

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

20

Spring

404101800

$4.25

SPRING - Call your local BRP dealership

404139800

Unavailable

21

Spring

404101700

$4.14

22

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404103200

$31.99

25

Guide Screw

404105500

$31.99

26

Main Jet MJ 185

404119500

$5.21

Main Jet MJ 310 (MAG) | Skandic 600.

404107800

$8.36

Main Jet 330

404101400

$8.36

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

30

NIPPLE - Call your local BRP dealership

404127600

Unavailable

Nipple

404153400

$12.16

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

33

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

34

Cap

404105800

$6.38

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
