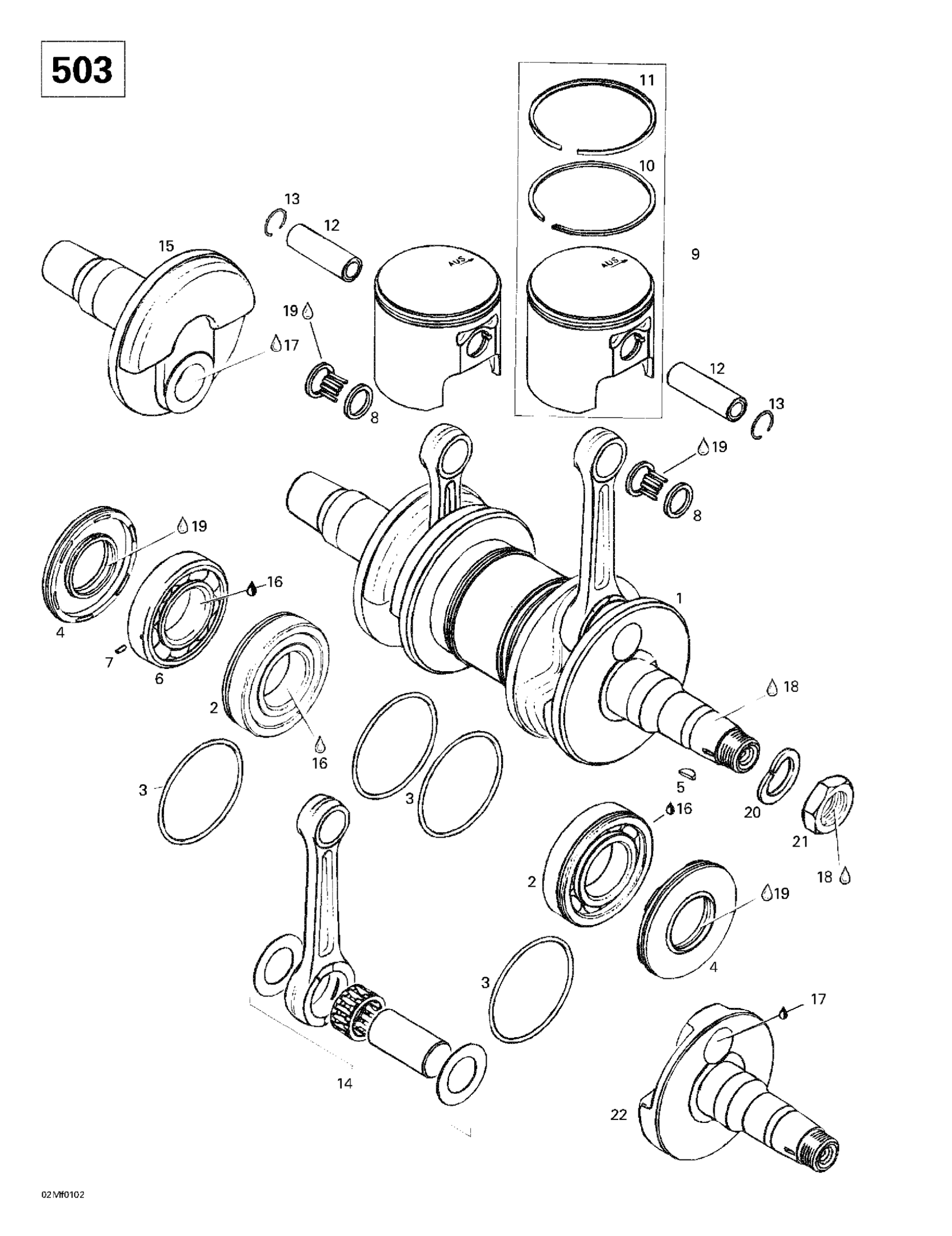

Ski-Doo Skandic 500F/600, 2001 01- Crankshaft And Pistons (503) Diagram

Crankshaft Ass’Y | Includes 1 - 7. Skandic 500F. Skandic 500F (SWT).

420888390

Unavailable

REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership

421000155

Unavailable

Bearing_Ball This part replaces 290832231.

420832584

$41.49

O-Ring, 64 mm X 2 mm

293300022

$12.72

Oil Seal This part replaces 290831952.

420831952

$18.01

Woodruff Key

420246055

$2.43

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

Dowel Pin

420929972

Unavailable

Needle Bearing

420832320

$30.49

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership

420815200

Unavailable

SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership

420815201

Unavailable

SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership

420815202

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

Piston Circlip

420945735

$4.46

Crankshaft Repair Kit | Skandic 500F. Skandic 500F (SWT).

420994564

Unavailable

CRANKSHAFT HALF PTO - Call your local BRP dealership

420818244

Unavailable

Loctite 767, Antiseize Lubricant, 454 gr | Skandic 500F. Skandic 500F (SWT).

413800023

Unavailable

Sealant Loctite 648

219703000

$45.99

Loctite 243, 10 ml

293800060

$21.49

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

Lock Washer, 22 mm

420945759

$1.90

Hex. Nut, M22 X 1.5

420842239

$17.53

CRANKSHAFT HALF MAG - Call your local BRP dealership

420819020

Unavailable
