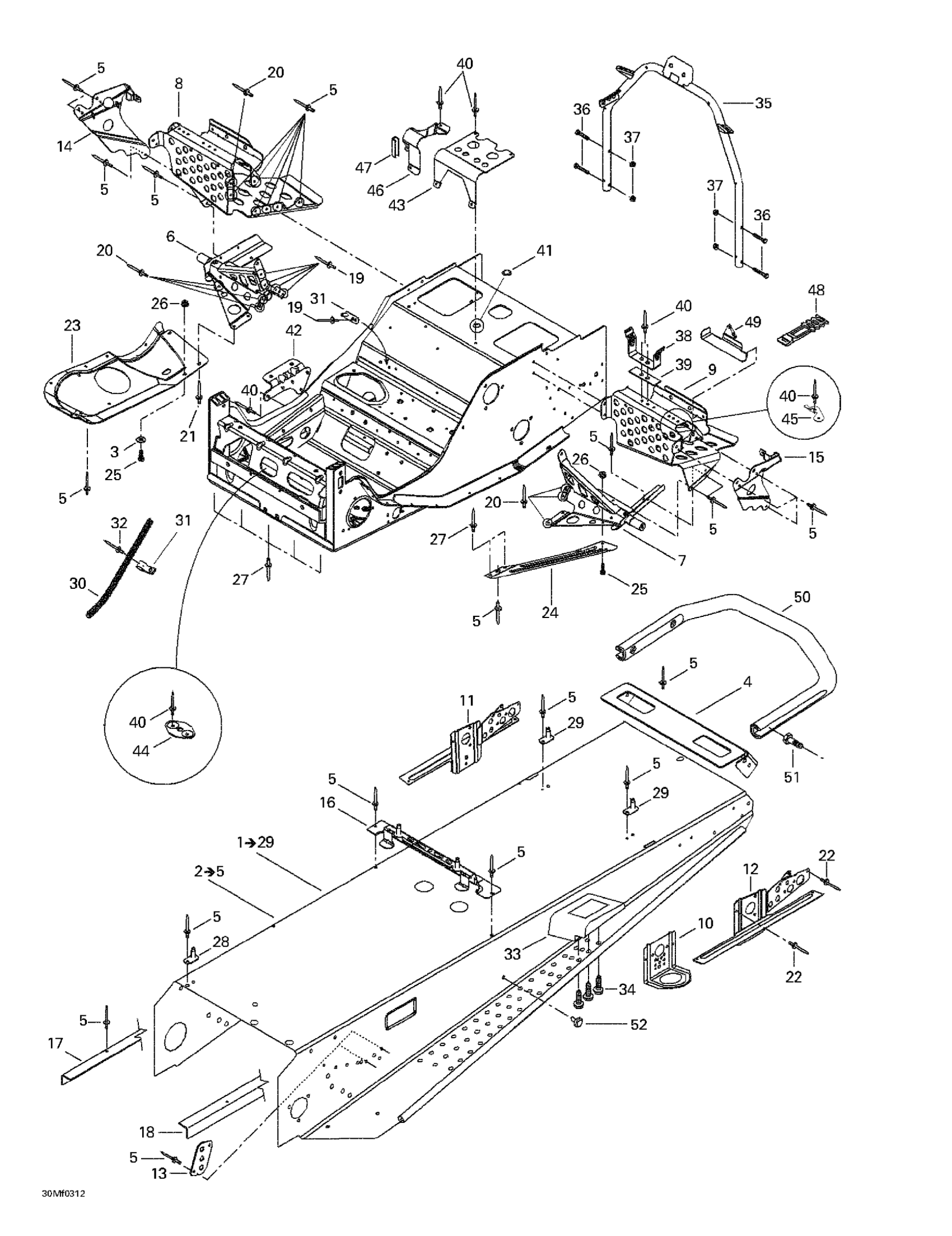

Ski-Doo Skandic 500F, 2003 09- Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 34.

415128556

Unavailable

2

Forming Frame | Includes 2 - 5.

518323024

Unavailable

3

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

4

Rear Cap

518321302

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518323563

Unavailable

9

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

10

Front Bracket

518321495

Unavailable

11

RHrear Bracket

518322762

Unavailable

12

LH Rear Bracket

518322765

Unavailable

13

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

14

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

15

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

16

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

17

RH Frame Reinforcement

518316769

Unavailable

18

LH Frame Reinforcement

518316768

Unavailable

19

Avex Rivet

390909200

$0.30

20

Avex Rivet

390909100

$0.30

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

24

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

25

Hex. Screw M5 X 20

207152044

$0.90

26

Hex. Flange Elastic Nut M5

233251414

$1.04

27

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

28

Double Bracket

518323173

Unavailable

29

Seat Bracket

518323321

Unavailable

30

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

31

Open Clamp

518321570

$7.69

32

Pop Rivet 3/16"

293150103

$0.55

33

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

34

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

35

Handle Support

518322755

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.90

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Belt Guard Bracket

518202100

$17.49

39

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

40

Pop Rivet 3/16"

390402200

$0.35

41

CAP - Call your local BRP dealership

414859400

Unavailable

42

Muffler Support

518322635

Unavailable

43

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

44

Plate Bracket

518201307

Unavailable

45

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

46

Hose Support

518322699

Unavailable

47

Was 271000110 Protection Trim

219704353

$15.99

48

LATCH - Call your local BRP dealership

570069700

Unavailable

49

Tool Kit Support

518321999

Unavailable

50

Rear Bumper

517243800

Unavailable

51

Hex. Flange Screw M8 X 20

207682044

$1.15

52

Panel Fastener

518321954

$7.69
