Description

Price

1

Flange Connector

420810955

$110.99

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

3

Rewind Starter Assy | Includes 3 - 12.

420888212

Unavailable

3

Starter Housing

420811340

Unavailable

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852480

$63.99

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Key Clamp

420852070

$4.23

8

Pawl

420852296

$20.99

9

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

10

Stage Sleeve

420847926

$16.33

11

O-Ring

420250400

$5.39

12

Lock Ring

420852520

$9.27

13

Locking Element

420845560

$2.11

14

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

15

Molykote PG 54, 10 g

420899763

$21.99

16

Starter Grip

572084400

$14.83

17

Pop Rivet 3/16"

390406500

$0.88

18

Open Clamp

518321570

$7.69

19

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

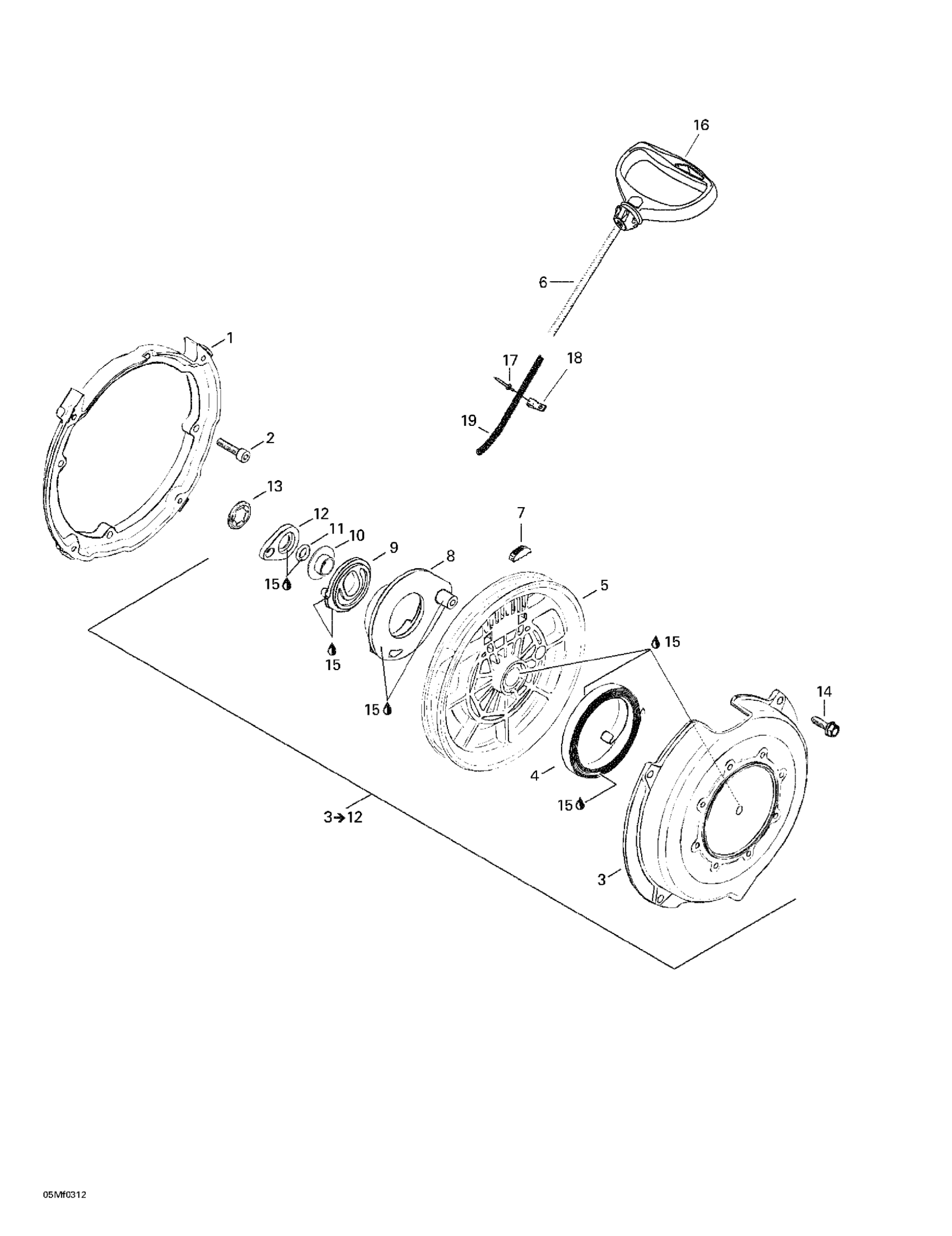

Ski-Doo Skandic 500F, 2003 04- Rewind Starter Diagram

Flange Connector

Allen Screw M6 x 22 This part replaces 420840401.

Rewind Starter Assy | Includes 3 - 12.

Starter Housing

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership

Stage Sleeve

O-Ring

Lock Ring

Locking Element

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Molykote PG 54, 10 g

Starter Grip

Pop Rivet 3/16"

Open Clamp

ROPE GUIDE - Call your local BRP dealership
