Description

Price

1

Air Intake | 550F

508000319

Unavailable

2

Inlet Tube

572054803

Unavailable

3

Black, Dart

414644300

$0.98

4

Adaptor 34 mm

508000203

$20.99

5

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

6

Outer Foam

508000245

Unavailable

7

Air Filter

508000154

$23.49

8

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

9

Grommet

513032908

$10.49

10

Gear Clamp

508000217

Unavailable

11

Carburetor Adaptor

512059396

Unavailable

12

Clamp

512059395

Unavailable

13

Gemi Clamp | Not Shown

512059834

$11.60

14

Polyurethane Hose 10000Mm Long

219704410

$56.99

15

Elbow Male Connector

414580600

$4.23

16

T-Fitting

572045500

$7.51

17

Carburetor

403138697

Unavailable

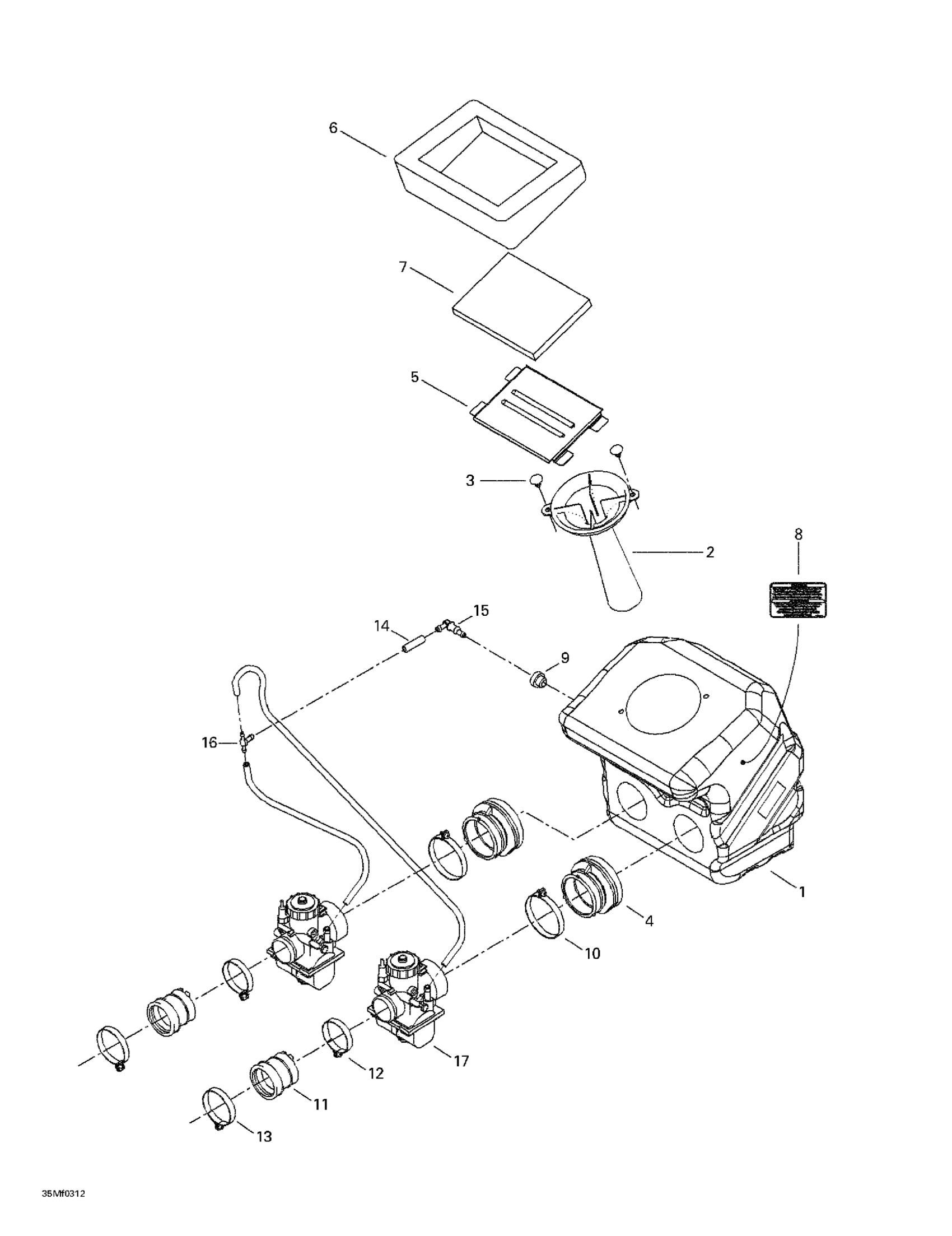

Ski-Doo Skandic 500F, 2003 02- Air Intake System Diagram

Air Intake | 550F

Inlet Tube

Black, Dart

Adaptor 34 mm

INTAKE GRILL - Call your local BRP dealership

Outer Foam

Air Filter

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

Grommet

Gear Clamp

Carburetor Adaptor

Clamp

Gemi Clamp | Not Shown

Polyurethane Hose 10000Mm Long

Elbow Male Connector

T-Fitting

Carburetor
