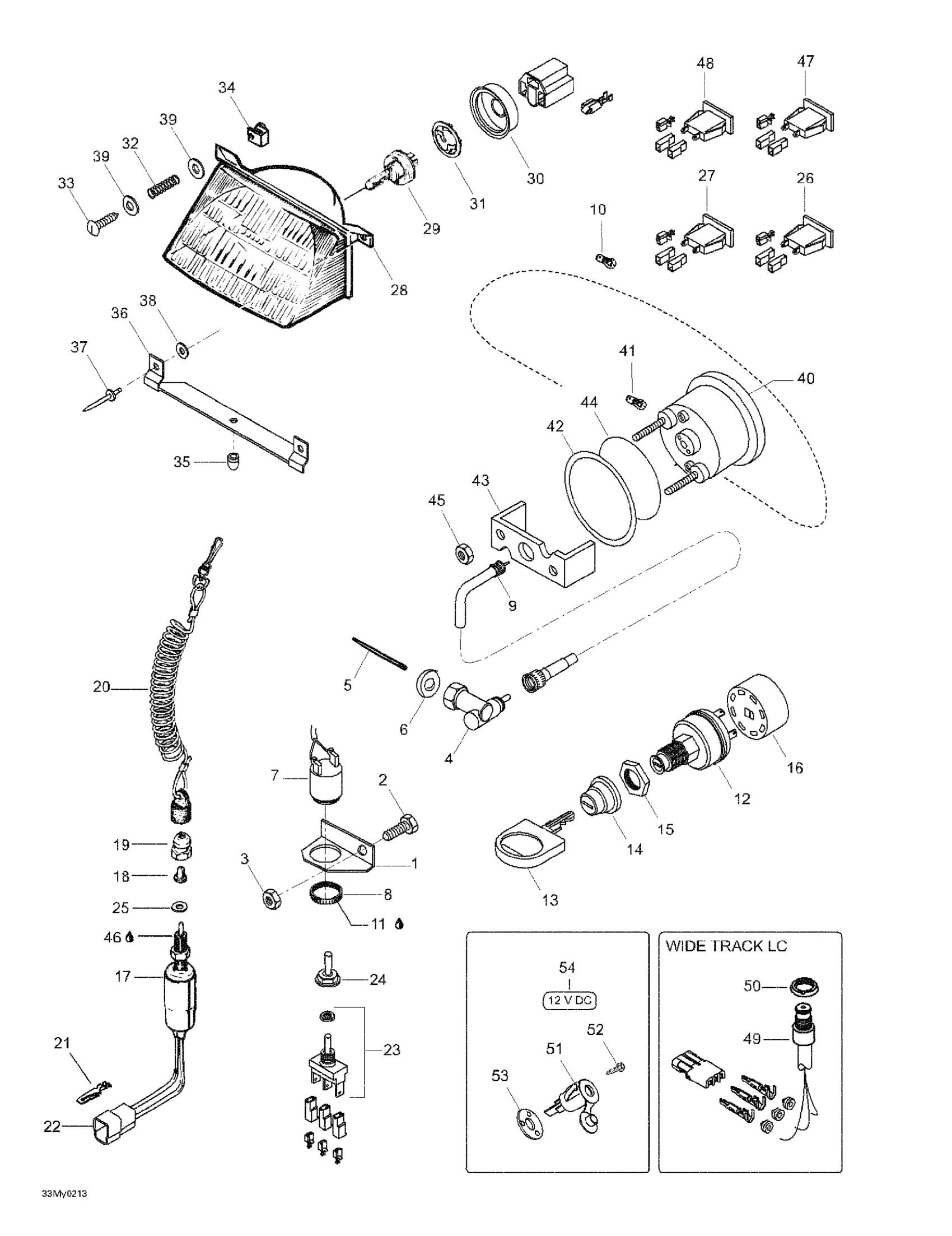

Ski-Doo Skandic 500/600, 2002 Electrical System Diagram

#

Description
Price

1

Support

M549459

Unavailable

2

Hex. Screw M6 X 16

207161644

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

4

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

Unavailable

5

Square Pin Nska L=75Mm This part replaces M45075.

45075

$18.43

6

Washer

M5444186

Unavailable

7

Back-Up Alarm

414792102

$143.05

8

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

9

Speedometer Cable This part replaces M5344162.

5344162

Unavailable

10

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

11

Silicone Sealant 51388, 300 ml

296000309

Unavailable

12

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

13

Blank Key

415129350

Unavailable

14

Switch Boot

570013700

Unavailable

15

FACE NUT - Call your local BRP dealership

410112100

$14.29

16

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

17

Brake Switch

515175653

$15.57

18

Plunger Cap

570151100

$10.14

19

Switch Nut

515145900

$10.83

20

Cap Ass'y

515178283

$37.66

DESS

515178284

Unavailable

21

Male Terminal

M42031

Unavailable

22

Male Housing

M42122

Unavailable

23

Heat Grip Switch

410110700

$31.51

24

Switch Cover

515175281

$15.03

25

Flat Washer 10 mm

234001410

Unavailable

26

Pilot Lamp (Blue)

410109600

Unavailable

27

Pilot Lamp (Red)

410109500

Unavailable

28

Headlamp | Includes 53 to 56

410609300

Unavailable

29

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

30

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

31

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

32

Spring

517168600

Unavailable

33

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

34

Projector Nut

572078600

Unavailable

35

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

36

HOLDER - Call your local BRP dealership

M539864

Unavailable

37

Rivet

M36489

Unavailable

38

Washer 5,3 mm

20008

Unavailable

39

Flat Washer M5

234051410

Unavailable

40

Speedometer, Mph

515175336

Unavailable

Speedometer, Kmh

515175335

Unavailable

41

Instrumentation Bulb

410501000

Unavailable

42

Washer

517258500

Unavailable

43

Case Holder

414806500

Unavailable

44

O-Ring

414807100

Unavailable

45

NUT M5 - Call your local BRP dealership

M33062

Unavailable

46

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

47

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

48

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

49

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

50

Safety Nut (DESS Switch)

278002963

$2.72

51

DC Outlet

710001248

$31.17

52

Screw | Skandic 500F. Skandic 600.

M40856

Unavailable

53

Holder | Skandic 500F. Skandic 600.

M5342765

Unavailable

54

Decal 12V DC | Skandic 500F. Skandic 600.

M5442862

Unavailable
