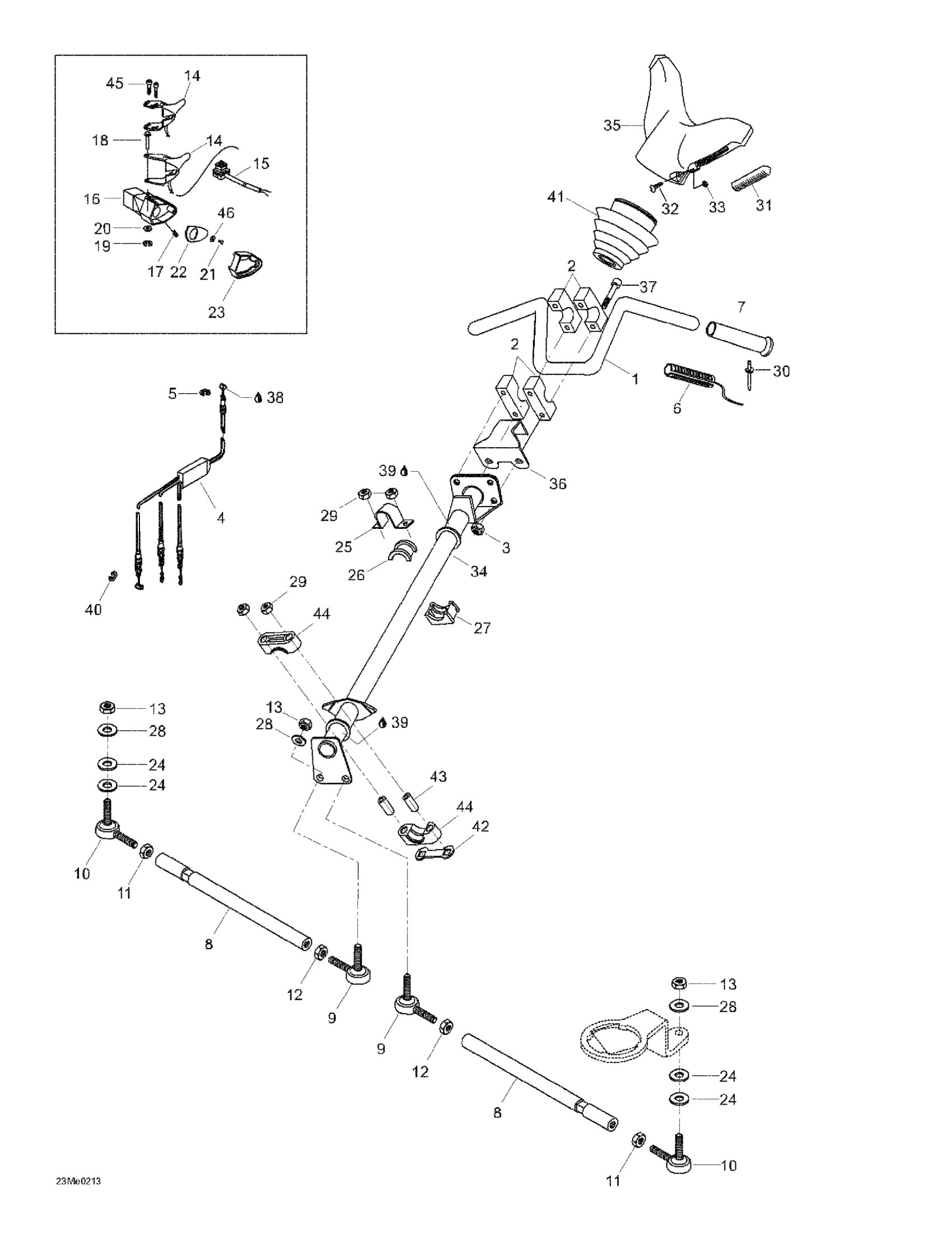

Ski-Doo Skandic 500/600, 2002 Steering System Diagram

#

Description
Price

1

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

2

Support Guidon *Support-Steer.

M548448

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

Unavailable

4

Throttle Cable - Call your local BRP dealership This part replaces M5244975.

5244975

Unavailable

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

5

Circlip

M31038

Unavailable

6

Heather Assy - Call your local BRP dealership This part replaces M544345.

544345

Unavailable

7

Grip | WAKE This part replaces M5340464.

506152483

$9.85

8

Rh Tie Rod

M548983

Unavailable

Tie Rod LH

M5441066

Unavailable

9

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

10

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

11

RH NUT - Call your local BRP dealership

M33019

Unavailable

12

LH NUT - Call your local BRP dealership

M33017

Unavailable

13

Elastic Flange Nut M10

232501416

Unavailable

14

HANDLE-ASS. - Call your local BRP dealership

M5442276

Unavailable

Heat Throttle Handle | Skandic 600.

M5341801

Unavailable

15

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

16

Throttle Housing

512060603

$10.57

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

17

Socket Set Screw M8 X 10

414440800

$4.00

18

Lever Pin

414438700

$11.14

19

Circlip | Model-RS

414439000

Unavailable

20

Flat Washer M5, Stainless

234051600

$0.64

21

Screw

414473200

$3.69

22

Plate

512060390

$9.31

23

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

24

Washer

M31014

Unavailable

25

Retaining Support

M5343381

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Bushing

572064400

Unavailable

28

Lock Washer

M20015

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

Unavailable

30

Rivet

36005

Unavailable

31

Key Way

572023900

Unavailable

32

Screw

M40156

Unavailable

33

NUT M5 - Call your local BRP dealership

M33062

Unavailable

34

Main Tube | Skandic 500F. Skandic 600.

M5244297

Unavailable

Main Tube

M5245968

Unavailable

35

Steering Padding

572023800

Unavailable

36

Support

M5444196

Unavailable

37

Socket Head Screw M8 X 45

M40286

Unavailable

38

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

40

Circlip

414753500

$0.59

41

Bellow

M539033

Unavailable

42

Stopper Plate

506150600

Unavailable

43

Housing Bushing

506150500

Unavailable

44

Housing Half

506150400

Unavailable

45

Flange Screw

732601143

$4.02

46

Washer | Skandic 600.

M20026

Unavailable
