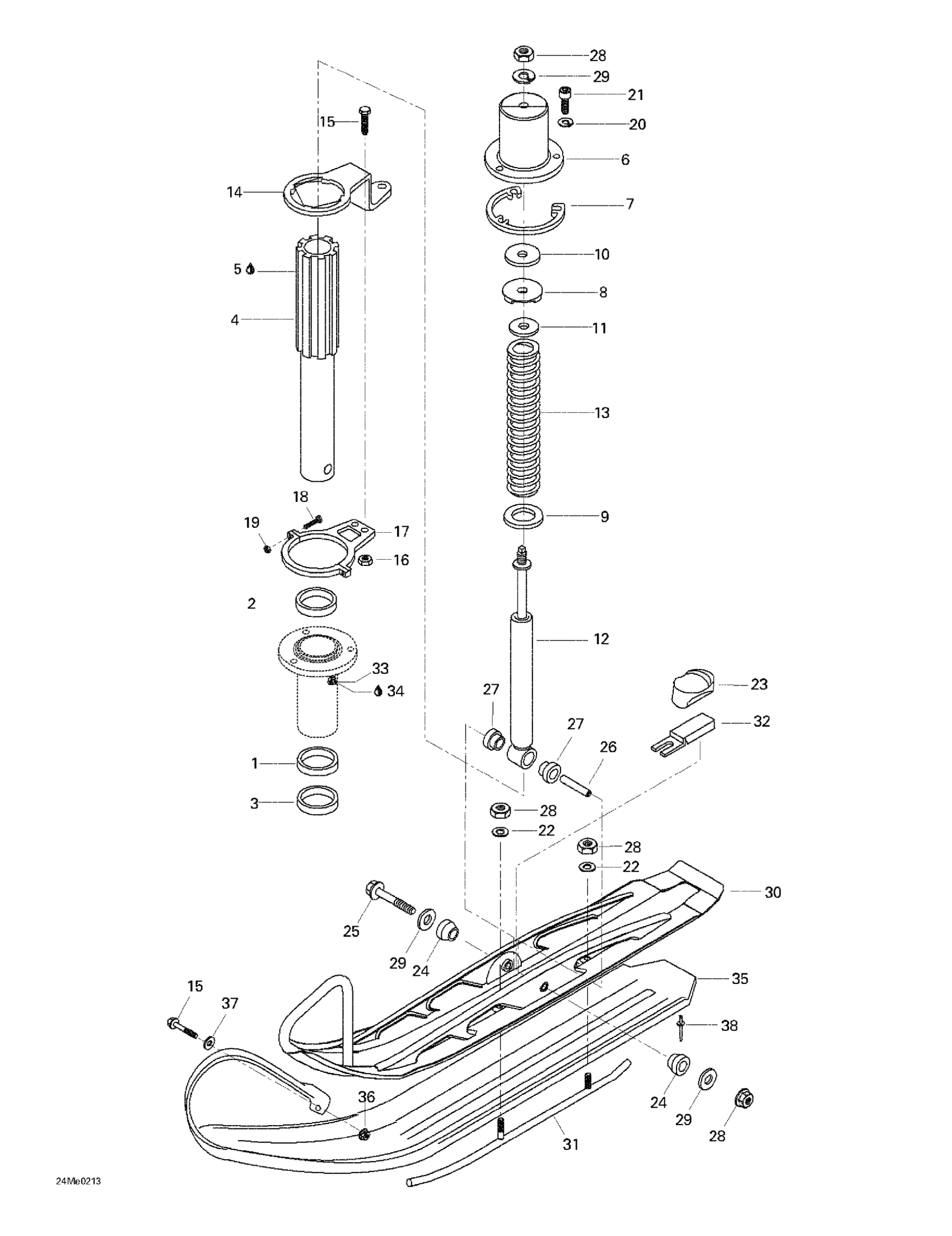

Ski-Doo Skandic 500/600, 2002 Front Suspension And Ski Diagram
#
Description
Price
1
Lower Cushion
414803200
Unavailable
2
Upper Cushion
414803100
Unavailable
3
Seal - Call your local BRP dealership This part replaces M316373.
316373
Unavailable
4
Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.
5245362
Unavailable
5
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
6
PAINTED COVER - Call your local BRP dealership
605249284
Unavailable
8
Stopper
570025800
Unavailable
9
Washer This part replaces M549493.
549493
Unavailable
10
Absorberfibber washer - Call your local BRP dealership
605455680
Unavailable
11
Absorberfibber washer - Call your local BRP dealership
605455680
Unavailable
12
Shock
M23018
Unavailable
13
Spring This part replaces M5241330.
5241330
Unavailable
14
STEERING ARM - Call your local BRP dealership
M5244182
Unavailable
15
Hex. Screw M6 X 25
207162544
Unavailable
16
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
Support Ass'Y This part replaces M5344180.
619380015
Unavailable
18
Screw
M40146
Unavailable
20
Lock Washer 8 mm
234181401
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
STOPPER - Call your local BRP dealership | SWT, WTLC
M5341750
Unavailable
24
Cone Rubber | SWT, WTLC This part replaces M547543.
547543
Unavailable
25
Hex. Screw M10 X 125 | SWT, WTLC
M40354
Unavailable
26
Ski Cushion | SWT, WTLC This part replaces M549716.
549716
Unavailable
27
Cushion
572034500
Unavailable
29
WASHER-BLACK - Call your local BRP dealership
M20012
Unavailable
30
Welded Ski | SWT, WTLC
M5245338
Unavailable
31
Carbide Ski Runner | SWT, WTLC
M5344021
Unavailable
32
Support Plate | SWT. WTLC
M5445639
Unavailable
33
Grease Fitting
M34019
Unavailable
34
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
35
Ski Liner 200 mm | SWT, WTLC
M5144415
Unavailable
36
Elastic Stop Nut M6
232561414
Unavailable
38
Rivet | SWT, WTLC
M36070
Unavailable
