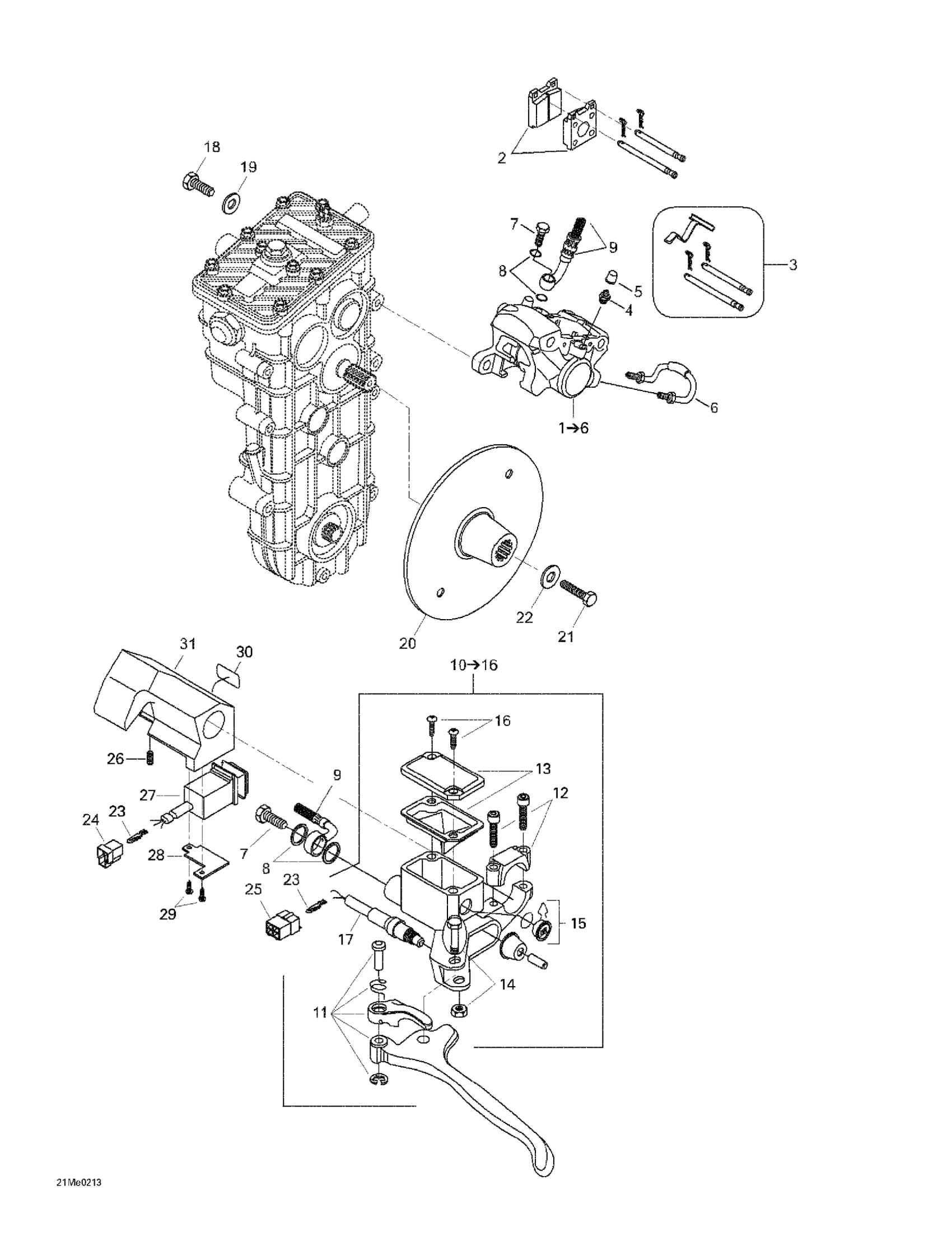

Ski-Doo Skandic 500/600, 2002 Brake Diagram
#
Description
Price
1
Caliper | Includes Items 1 to 6
507032321
Unavailable
2
Brake Pad Kit
415084600
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
8
Washer
414920600
Unavailable
9
HOSE - Call your local BRP dealership
507032219
Unavailable
10
Master Cylinder | Includes 1 to 8
507032293
Unavailable
11
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
13
Cap
415029900
Unavailable
14
Pin Ass'y
415030000
Unavailable
15
WINDOW - Call your local BRP dealership
414990600
Unavailable
16
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
17
Microswitch
507032366
Unavailable
18
SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership
M40277
Unavailable
19
Lock Washer D10
20068
Unavailable
20
Brake Disc
605353250
Unavailable
21
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
22
Washer
M546336
Unavailable
23
Male Terminal
M42031
Unavailable
24
Male Housing
M42036
Unavailable
25
Male Housing
M42122
Unavailable
27
Dimmer Switch
515175371
Unavailable
28
Plate | SWT 550
517283800
Unavailable
30
Switch Decal
415025500
Unavailable
31
DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550
572079500
Unavailable
