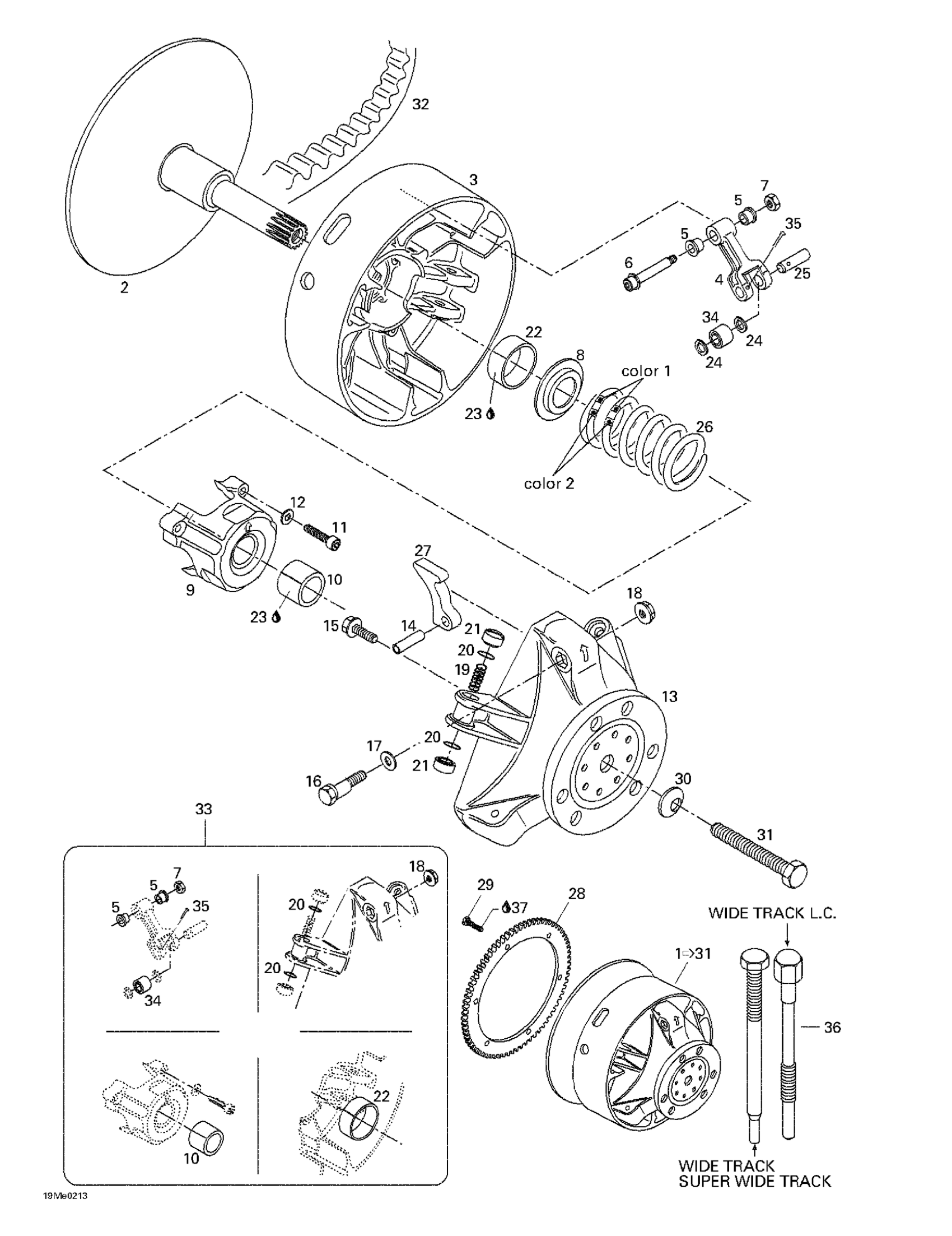

Ski-Doo Skandic 500/600, 2002 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixe Flange | Skandic 500F. Skandic 500F (SWT).

417222250

Unavailable

Fixed Flange

417222411

$214.90

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

4

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

5

Bushing

417004305

$8.76

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

$1.78

8

Spring Seat

417222044

Unavailable

9

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

10

Bushing

417004501

Unavailable

11

Socket Head Screw M6 X 40

250000038

$6.33

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$3.75

18

Hex. Flange Nut M6

233061414

$1.54

19

Spring

417005700

$4.51

20

O-Ring

732401030

$0.93

21

Slider Shoe This part replaces 420460045.

417223021

$5.99

22

Bushing

417004201

$23.10

23

Loctite 609, 10 ml

413703100

$23.85

24

Stopper Washer

417004302

$15.64

25

Pin

417004309

$23.85

Pin

417004308

$12.79

26

SPRING, YELLOW/ORANGE - Call your local BRP dealership

414689700

Unavailable

Clutch Spring

414689800

$41.76

27

Ramp 290

417005290

Unavailable

28

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

Ring Gear

417300057

Unavailable

29

Hex. Screw M8 X 16

236281684

$3.88

30

Conical Spring Washer

M20090

Unavailable

Conical Spring Washer

M20110

Unavailable

31

BOLT - Call your local BRP dealership

417113800

Unavailable

Drive Pulley Bolt

417120000

$61.91

32

Drive Belt

414633800

$138.03

33

Clutch Repair Kit

417008500

Unavailable

34

Roller

417222947

$19.37

35

Cotter Pin

250400060

$1.84

36

Puller Inner Half

529007900

$58.99

Puller This part replaces 529022400.

529000064

$73.99

37

Loctite 271, 10 ml

293800005

$23.85
