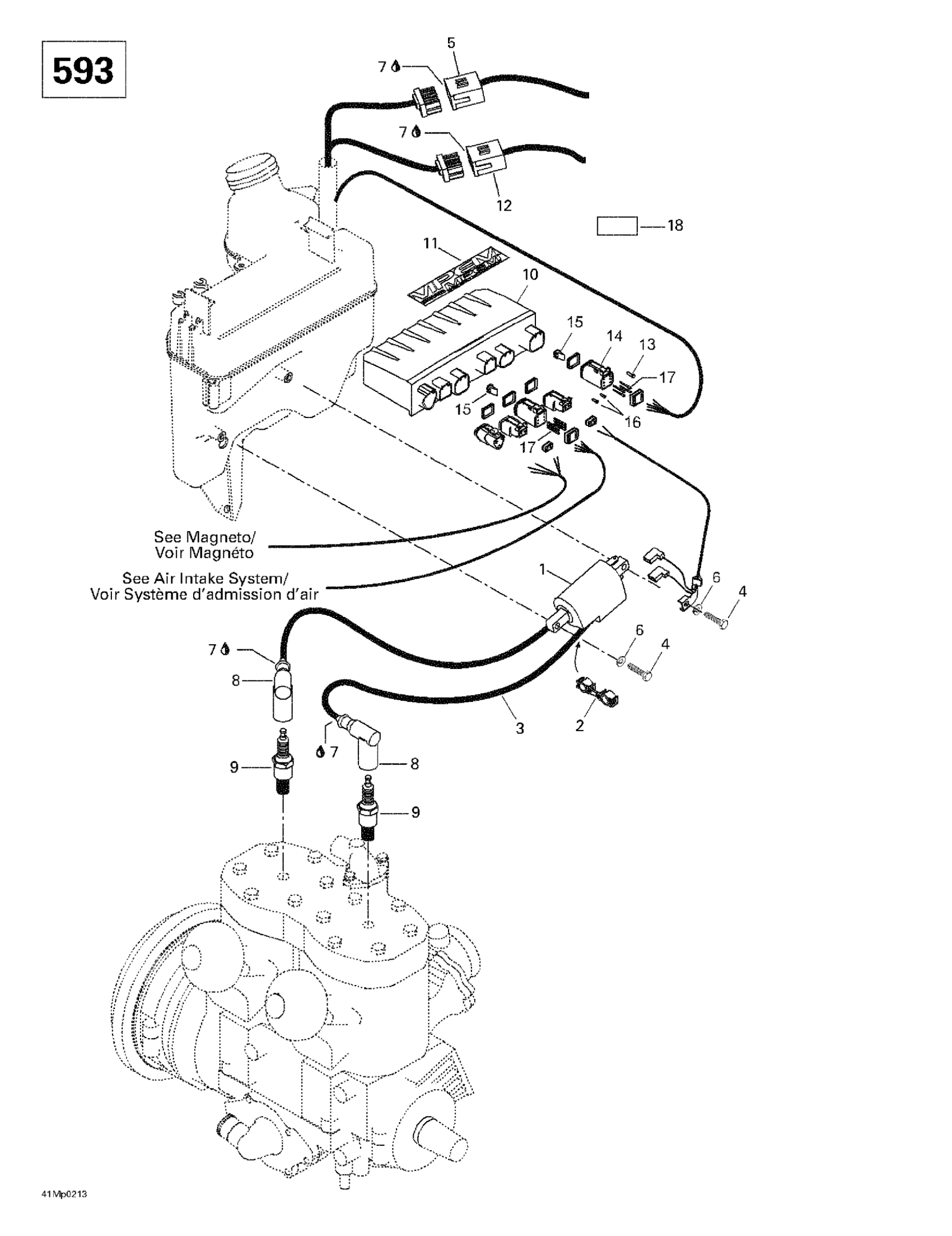

Ski-Doo Skandic 500/600, 2002 Ignition (593) Diagram

#

Description
Price

1

Ignition Coil

410922935

Unavailable

2

Plastic Clip, Spark Plug Wire

410914600

Unavailable

3

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

4

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

5

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

6

Lock Washer M6, Black

234161471

$0.52

7

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

8

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

9

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

10

Calibration Module | Skandic 600.

M5247879

Unavailable

11

Electrical Box Decal

516000245

Unavailable

12

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

13

PLUG - Call your local BRP dealership

515175303

Unavailable

14

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Sealing Cap

293000052

Unavailable

17

Female Terminal

278000632

Unavailable

18

Calibration Decal | Skandic 600.

M5447891

Unavailable
