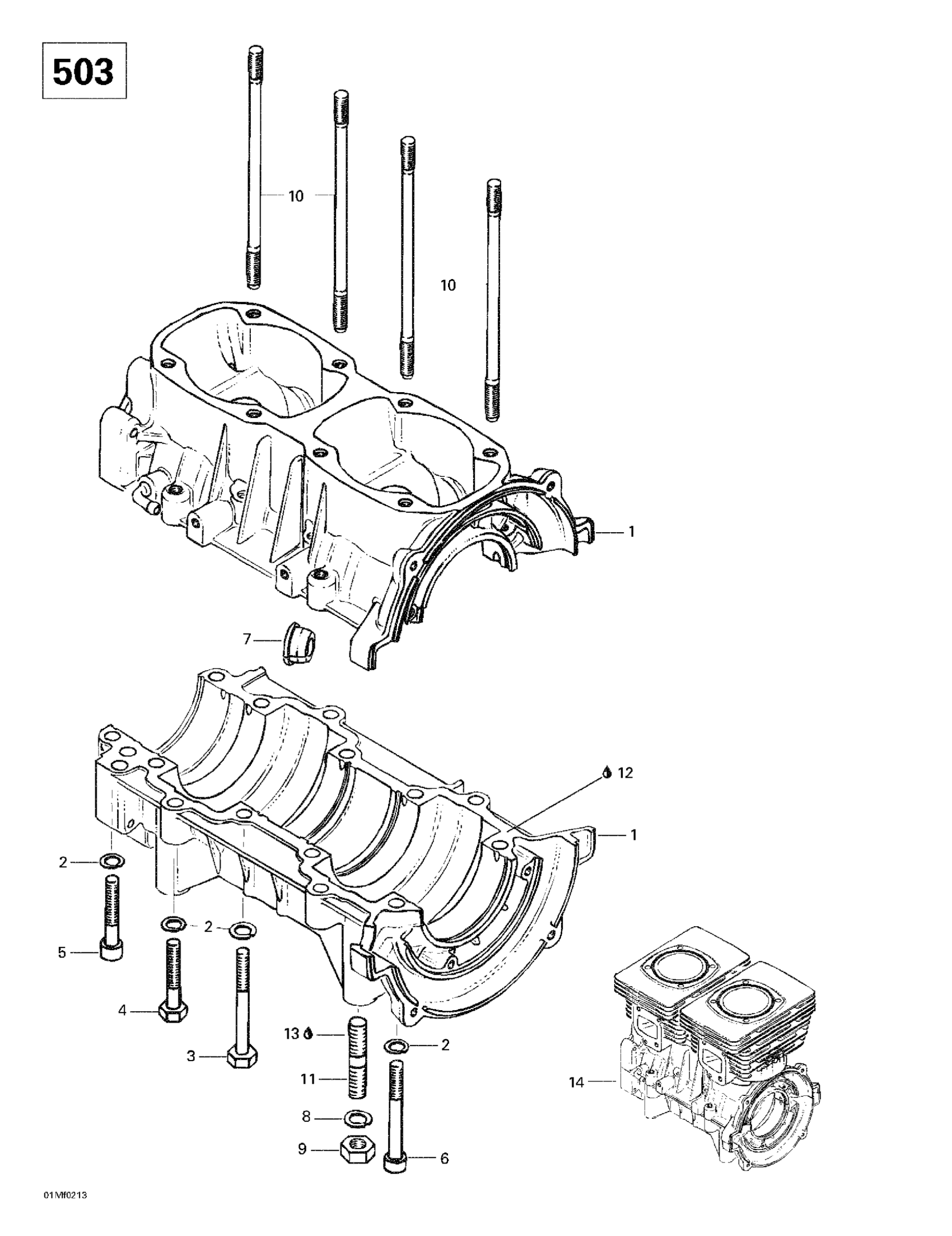

Ski-Doo Skandic 500/600, 2002 Crankcase (503) Diagram

#

Description
Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

Unavailable

2

Washer-Lock Din.128

420945832

Unavailable

3

Hex. Screw M8 X 70

420841201

Unavailable

4

Hex. Screw M8 X 45

207084544

Unavailable

5

Socket Head Screw M8 X 45

420841561

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Stud M10 | Skandic 500F. Skandic 500F (SWT).

420640030

Unavailable

8

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

9

Hex. Nut M10 X 1.5

232006414

$1.11

10

Stud M8 X 173.5

420840556

Unavailable

11

Cable Grommet

420860962

Unavailable

12

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

13

Loctite 243, 10 ml

293800060

$20.77

14

Short Block, 503 | Skandic 500F. Skandic 500F (SWT).

420050303

Unavailable
