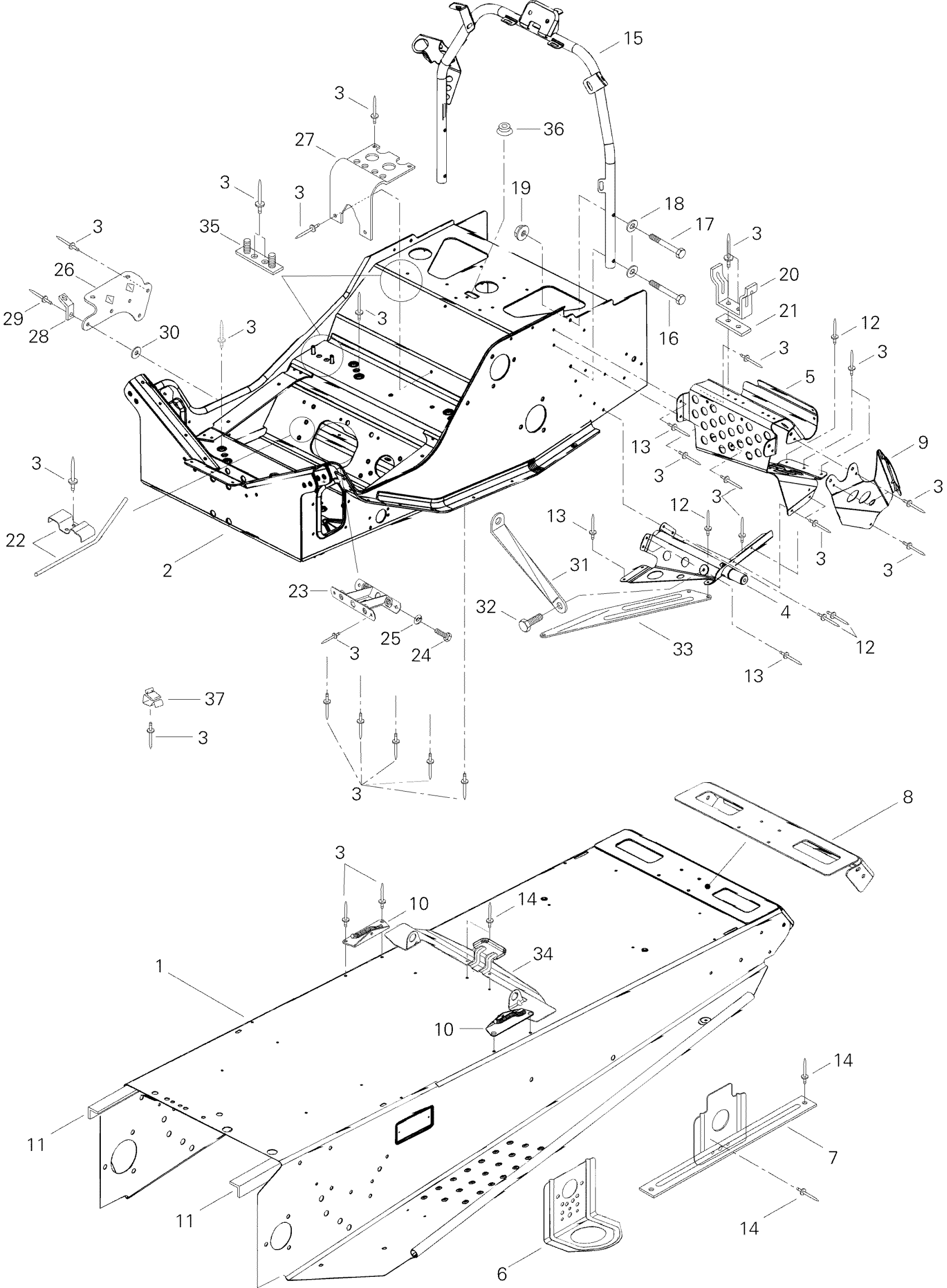

Ski-Doo Skandic 500, 1996 09- Frame and Components 500 Diagram
#
Description
Price
1
Tunnel
518313250
Unavailable
2
Front Member
518313044
Unavailable
4
LH Support
518309004
Unavailable
4
RH Support
518309005
Unavailable
5
RH Front Footrest
518313804
Unavailable
5
LH Front Footrest
518313805
Unavailable
6
Front Bracket
518312910
Unavailable
7
LH Rear Bracket
518313800
Unavailable
7
RH Rear Bracket
518313801
Unavailable
8
Cap-End
518308717
Unavailable
9
Upper Plate L.H
518308714
Unavailable
9
Upper Plate R.H
518308715
Unavailable
10
RH Tank Bracket
517266900
Unavailable
10
LH Tank Bracket
517267000
Unavailable
11
LH Tunnel Reinforcement
518310000
Unavailable
11
RH Tunnel Reinforcement
518310001
Unavailable
15
Handle Steering Support
518309200
Unavailable
21
REINFORCEMENT - Call your local BRP dealership
518207500
Unavailable
22
Guide Rope
517276100
Unavailable
23
Reinf. Plate
518304741
Unavailable
26
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
31
LH Reinforcement
518310900
Unavailable
31
RH Reinforcement
518311000
Unavailable
33
RH Reinf. Plate
518312929
Unavailable
33
LH Reinf. Plate
518312930
Unavailable
34
Seat Bracket
518310208
Unavailable
35
Support Plate
518315300
Unavailable
36
CAP - Call your local BRP dealership
414859400
Unavailable
