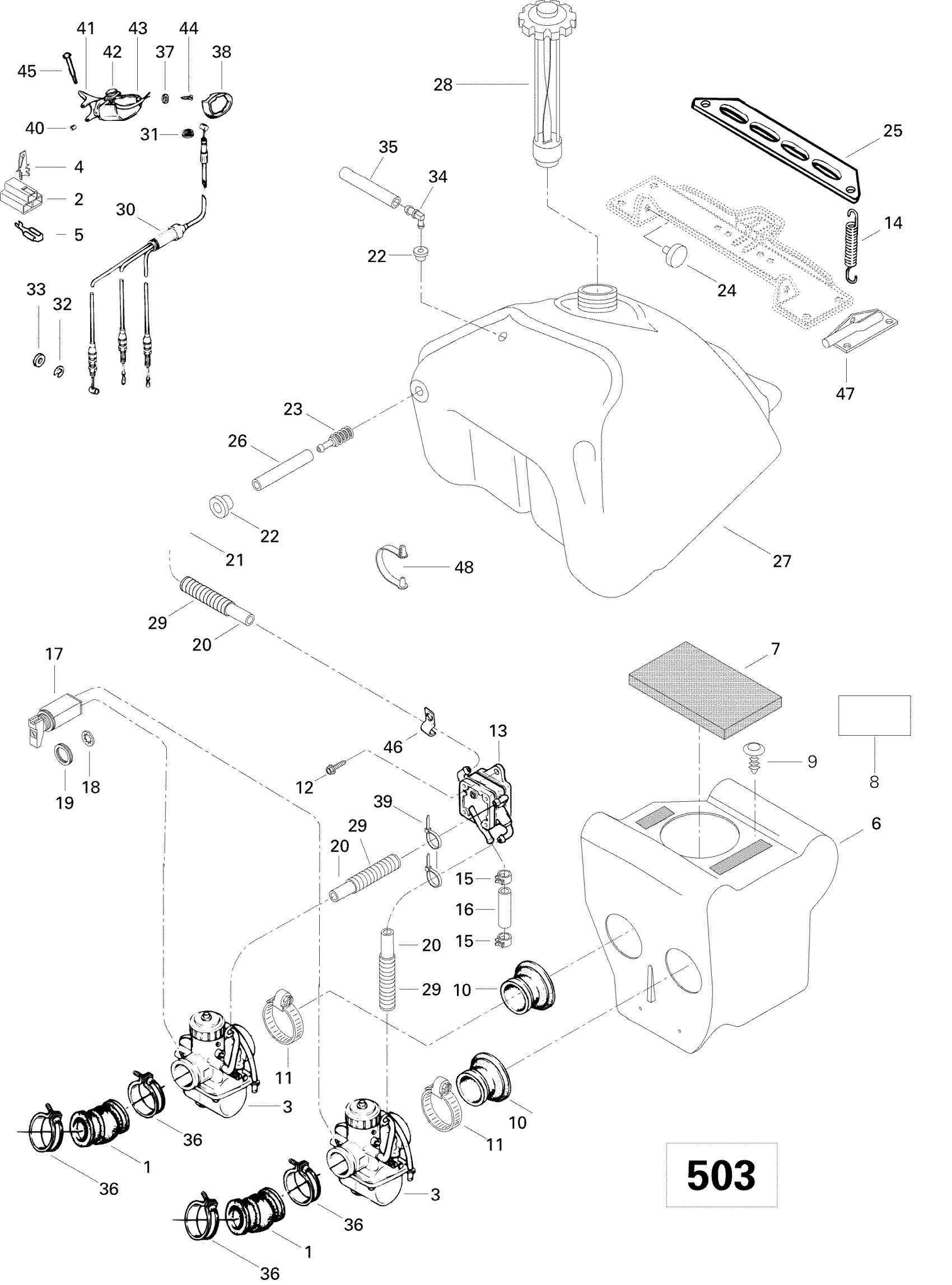

Ski-Doo Skandic 500, 1996 02- Fuel System 500 Diagram
#
Description
Price
1
Rubber Flange
570045000
Unavailable
2
Female Terminal Housing (3 circuits)
409008500
Unavailable
3
Carburetor VM 34 465 (PTO) | Includes 1 to 30
403123600
Unavailable
3
Carburetor VM 34 466 (MAG) | Includes 1 to 30
403123700
Unavailable
4
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
5
Female Terminal PACKARD
561503200
Unavailable
6
Air Silencer (Incl. 4,7,8,39)
580638502
Unavailable
7
Air Filter
414922700
Unavailable
8
Warning Decal
414161500
Unavailable
10
Adaptor 34 mm
570043600
Unavailable
11
TRIDON GEAR CLAMP - Call your local BRP dealership
408801600
Unavailable
13
Fuel Pump
403801000
Unavailable
14
SPRING - Call your local BRP dealership
517182100
Unavailable
17
CHOKE CABLE - Call your local BRP dealership
414967000
Unavailable
18
Lock Washer, Interior Teeth
394103300
Unavailable
19
NUT-PLASTIC - Call your local BRP dealership
512059364
Unavailable
25
Fuel Tank Bracket
517249200
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Fuel Tank
571008700
Unavailable
30
THROTTLE CABLE AND HOUSING - Call your local BRP dealership
414883100
Unavailable
35
Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.
414296900
Unavailable
36
TRIDON GEAR CLAMP - Call your local BRP dealership
408801900
Unavailable
37
WASHER-FLAT - Call your local BRP dealership
391300700
Unavailable
38
THROTTLE COVER - Call your local BRP dealership
572044600
Unavailable
41
Heat Throttle Handle(34 mm)
572056500
Unavailable
43
Throttle Handle Housing | Skandic 600.
572028600
Unavailable
44
Screw
414473200
Unavailable
46
CLIP - Call your local BRP dealership
414351600
Unavailable
47
RH Tank Bracket
414266900
Unavailable
47
LH Tank Bracket
414267000
Unavailable
48
CABLE CLIP - Call your local BRP dealership
414379300
Unavailable
