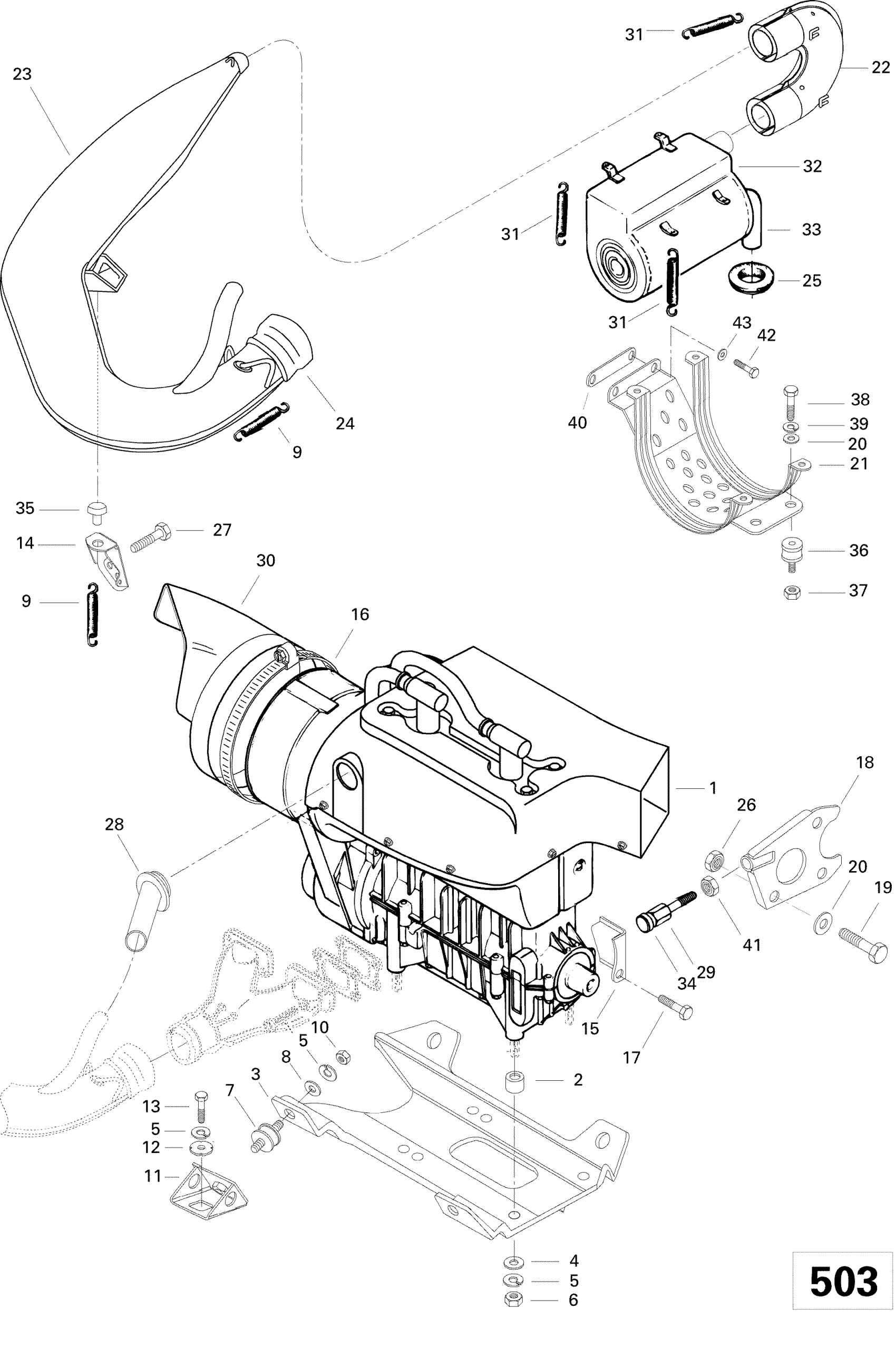

Ski-Doo Skandic 500, 1996 01- Engine And Engine Support 503 Diagram

#

Description
Price

1

«503» Engine

400506600

Unavailable

2

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support

512054500

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

SPRING - Call your local BRP dealership

517182100

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.37

11

Support | Formula S.

512055400

Unavailable

12

Lock Washer

512056700

$3.17

13

Hex. Screw M10 X 25

207102544

$1.37

14

Muffler Support | Formula S.

514038800

Unavailable

15

Stopper Plate

512052200

Unavailable

16

Tridon Gear Clamp | MX Z 440 F.

408803700

Unavailable

17

Hex. Screw M8 X 20

207182044

$0.74

18

Support Plate

517271800

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.90

20

Flat Washer 8 mm

234081410

$0.83

21

Welded Bracket

514040200

Unavailable

22

«U» Connection Pipe

514040400

Unavailable

23

Tune Pipe | Includes 23 to 24

514037200

Unavailable

24

Female Ball Joint | Formula S.

420973530

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

Connector (Force Flow) | Skandic 380.

570045800

Unavailable

29

Screw

517244200

Unavailable

30

Air Deflector | Formula SL.

572058500

Unavailable

31

Spring

414851600

Unavailable

32

Muffler | Includes 32 to 33

514038500

Unavailable

33

Tail Pipe

514038608

Unavailable

34

Rod retainer

570025100

Unavailable

35

Rubber Bumper

570044700

$13.10

36

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

39

Lock Washer 8 mm

234181401

$0.92

40

Side Bracket

517267100

Unavailable

41

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

42

Hex. Flange Screw M6 X 16

210261650

$1.67

43

Flat Washer 6 mm

234061410

$1.36
