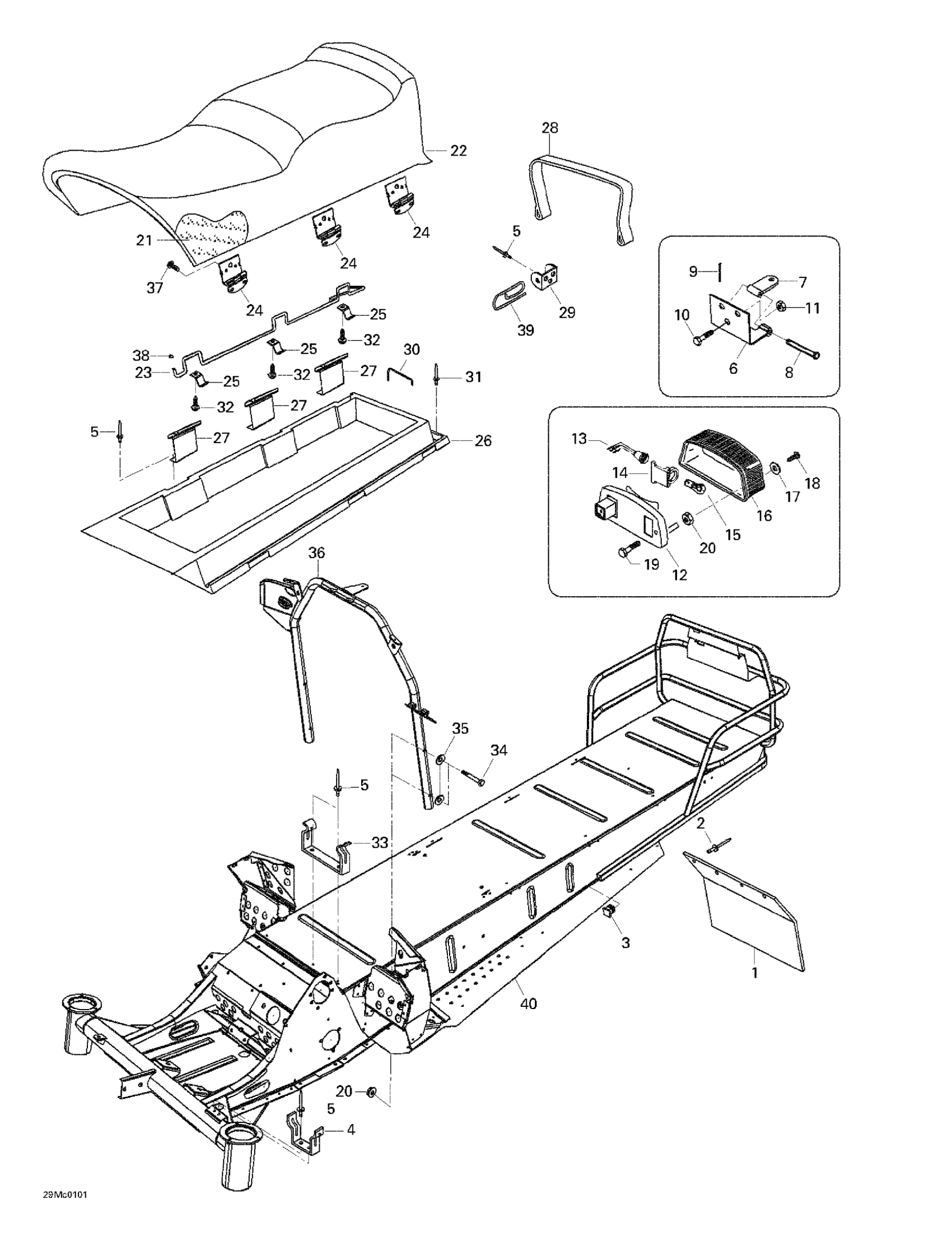

Ski-Doo Skandic 440F, 2001 09- Seat And Accessories Diagram

Snow Guard

572013800

Unavailable

Black Rivet

36037

$1.48

PLUG - Call your local BRP dealership

M28232

Unavailable

Belt Guard Bracket

518202100

$17.49

Rivet

36108

$1.90

Plate

M5346638

Unavailable

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

Cotter Pin

41031

$7.65

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

Taillamp Housing

414979400

Unavailable

Socket

414979410

Unavailable

Rubber Damper

414979411

Unavailable

Bulb

520000758

$9.10

Lens

414513700

$28.99

Washer - Call your local BRP dealership

414516400

Unavailable

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

Hex. Screw M6 X 30

207063044

$1.26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Seat Foam

M5145106

Unavailable

Cover-Seat

M5146633

Unavailable

Locking Shaft

M5245337

Unavailable

Hinge

M5346518

Unavailable

Locking Plate

M5446102

Unavailable

Seat Base

M5144963

Unavailable

Lock

M5345195

Unavailable

SEAT BELT - Call your local BRP dealership

M5346727

Unavailable

Seat Belt Latch

M548824

Unavailable

Stopper Hook

M5441849

Unavailable

Black, Rivet

M36036

$1.69

Screw

M40888

Unavailable

Support

M5346204

Unavailable

Hex. Screw M6 X 40

207064044

$1.48

Flat Washer 6 mm

234061410

$1.36

Handle support

M5245059

Unavailable

SCREW - Call your local BRP dealership

M40887

Unavailable

Cap

M28019

Unavailable

Spring This part replaces M548834.

548834

$7.79

Frame

M5145056

Unavailable
