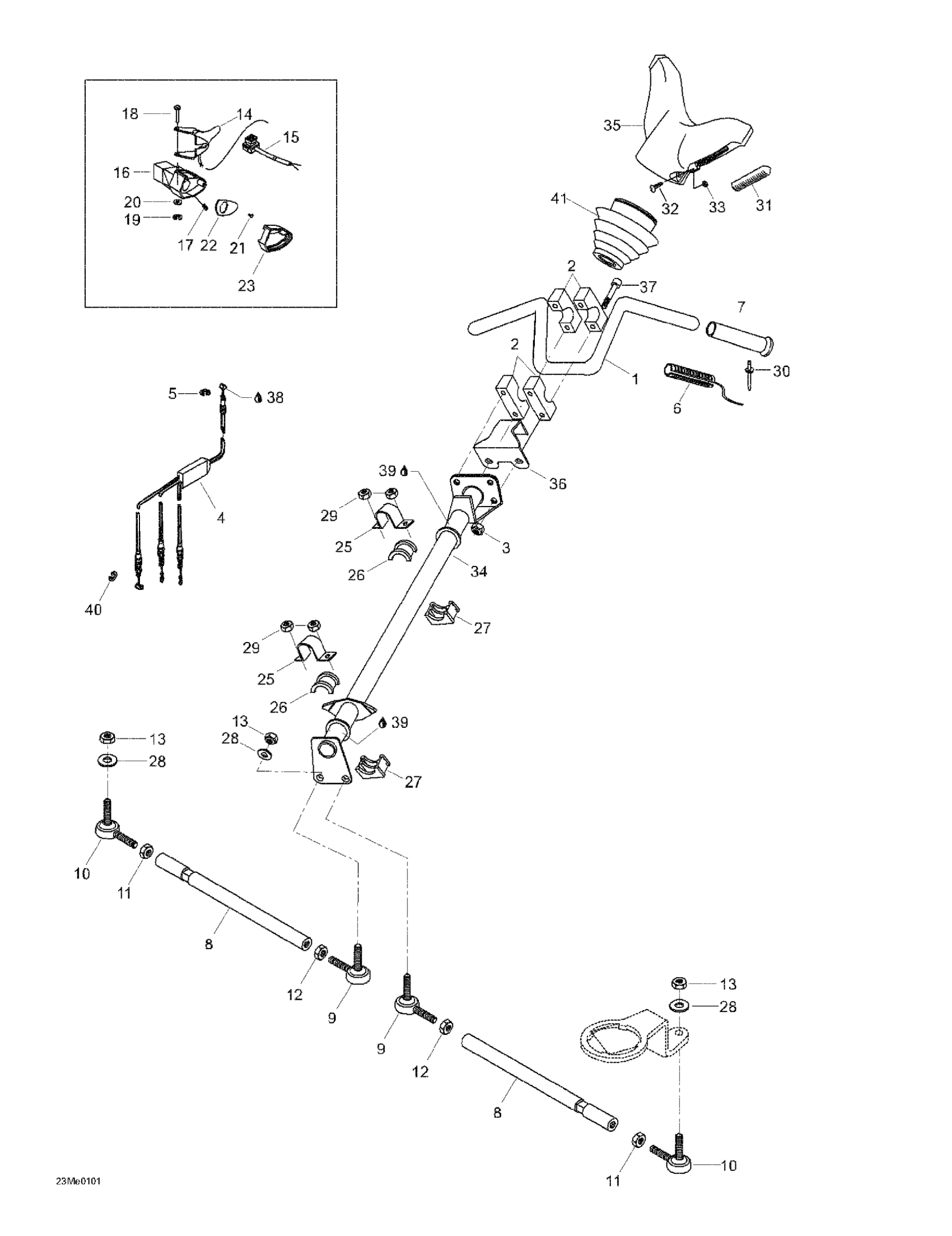

Ski-Doo Skandic 440F, 2001 07- Steering System Diagram

#

Description
Price

1

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

2

Support Guidon *Support-Steer.

M548448

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

$0.56

4

Throttle Cable This part replaces M5145673.

5145673

$109.99

5

Circlip

M31038

Unavailable

6

Heater Element

M5446341

Unavailable

7

Grip | WAKE This part replaces M5340464.

506152483

$12.17

8

Rh Tie Rod

M548983

Unavailable

9

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

10

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

11

RH NUT - Call your local BRP dealership

M33019

Unavailable

12

LH NUT - Call your local BRP dealership

M33017

Unavailable

13

Elastic Flange Nut M10

232501416

$1.48

14

HANDLE-ASS. - Call your local BRP dealership

M5442276

Unavailable

15

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

16

Throttle Housing

512060603

$12.49

17

Socket Set Screw M8 X 10

414440800

$4.12

18

Lever Pin

414438700

$11.64

19

Circlip | Model-RS

414439000

$4.23

20

Flat Washer M5, Stainless

234051600

$0.77

21

Screw

414473200

Unavailable

22

Plate

512060390

$10.33

23

Throttle Cover

572069300

Unavailable

24

Bushing Ass'y

M5343947

Unavailable

25

Retaining Support

M5343381

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Bushing

572064400

Unavailable

28

Lock Washer

M20047

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Rivet

36005

$2.11

31

Key Way

572023900

Unavailable

32

Screw

M40156

Unavailable

33

NUT M5 - Call your local BRP dealership

M33062

Unavailable

34

Main Tube

M5245963

Unavailable

35

Steering Pad

572044500

Unavailable

36

Support

M5444196

Unavailable

37

Socket Head Screw M8 X 45

M40286

Unavailable

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

40

Circlip

414753500

$0.71

41

Bellow

M539033

Unavailable
