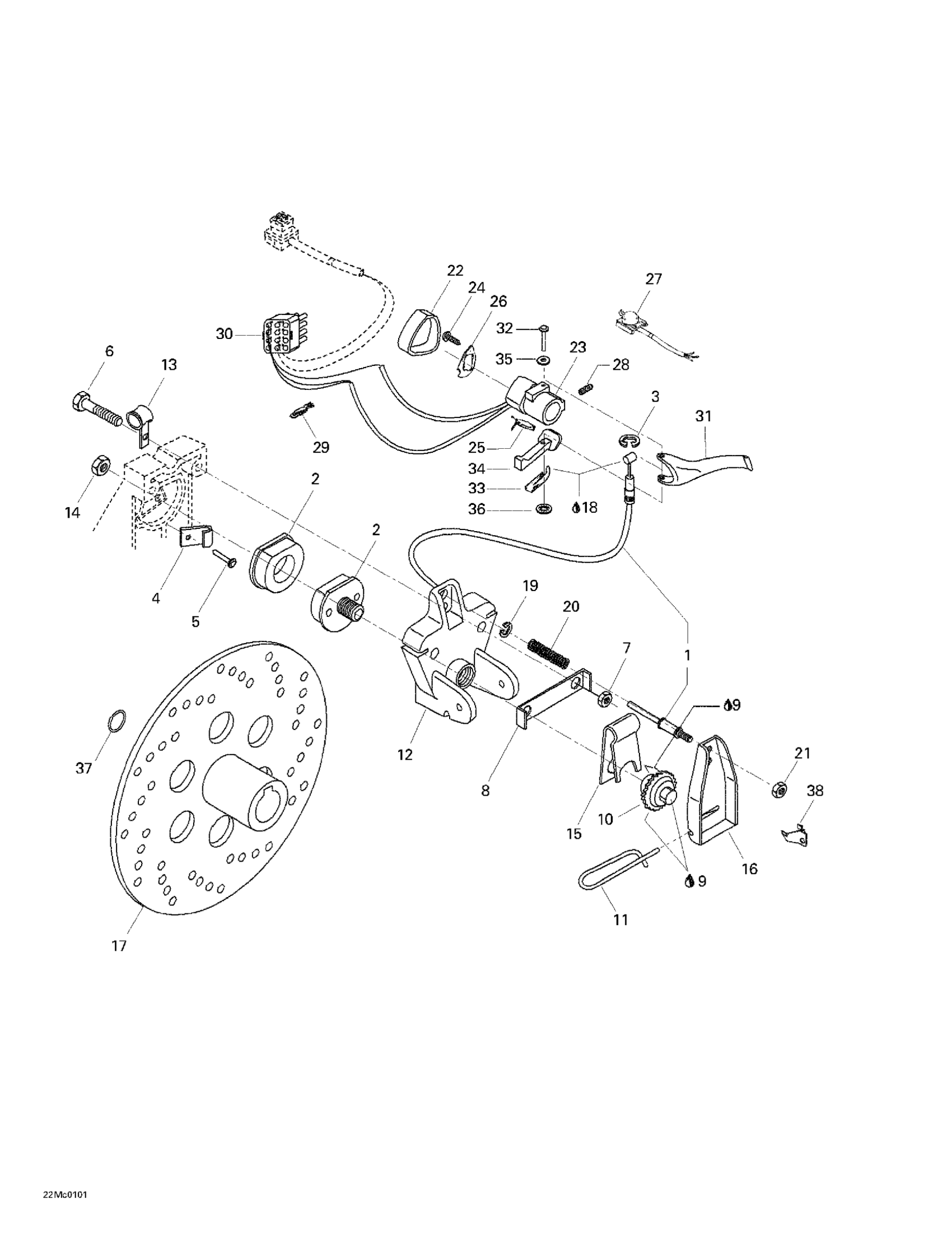

Ski-Doo Skandic 440F, 2001 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
BRAKE CABLE - Call your local BRP dealership
414922500
Unavailable
2
Pad_Brake Kit - Call your local BRP dealership
860700700
Unavailable
3
Circlip
M31038
Unavailable
4
WEAR INDICATOR - Call your local BRP dealership
507022600
Unavailable
5
Rivet
M36489
Unavailable
6
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085596
Unavailable
8
LOCK-TAB - Call your local BRP dealership
507020400
Unavailable
9
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
10
Wheel Ratchet
507019600
Unavailable
11
Hair Pin
507027500
Unavailable
12
Machined Caliper
507027600
Unavailable
13
Rope Guide
M5446616
Unavailable
14
Nut-lock
M33055
Unavailable
15
RELEASE SPRING - Call your local BRP dealership
507020200
Unavailable
16
LEVER - Call your local BRP dealership
507021500
Unavailable
17
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
19
Circlip
M31038
Unavailable
20
SPRING - Call your local BRP dealership
414460600
Unavailable
22
BRAKE COVER - Call your local BRP dealership
572073800
Unavailable
23
Brake Housing
M24034
Unavailable
24
Screw
414473200
Unavailable
25
Brake Switch
415085700
Unavailable
26
LH Plate
572086600
Unavailable
27
Dimmer Switch
415085800
Unavailable
29
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
30
Male Housing
M42266
Unavailable
31
BRAKE HANDLE - Call your local BRP dealership
572025700
Unavailable
32
PIN - Call your local BRP dealership
517229400
Unavailable
33
Spring
517229300
Unavailable
34
Brake Lever
572025200
Unavailable
35
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership
414729400
Unavailable
37
O'RING - Call your local BRP dealership
414928900
Unavailable
38
RATCHET SPRING - Call your local BRP dealership
507009400
Unavailable
