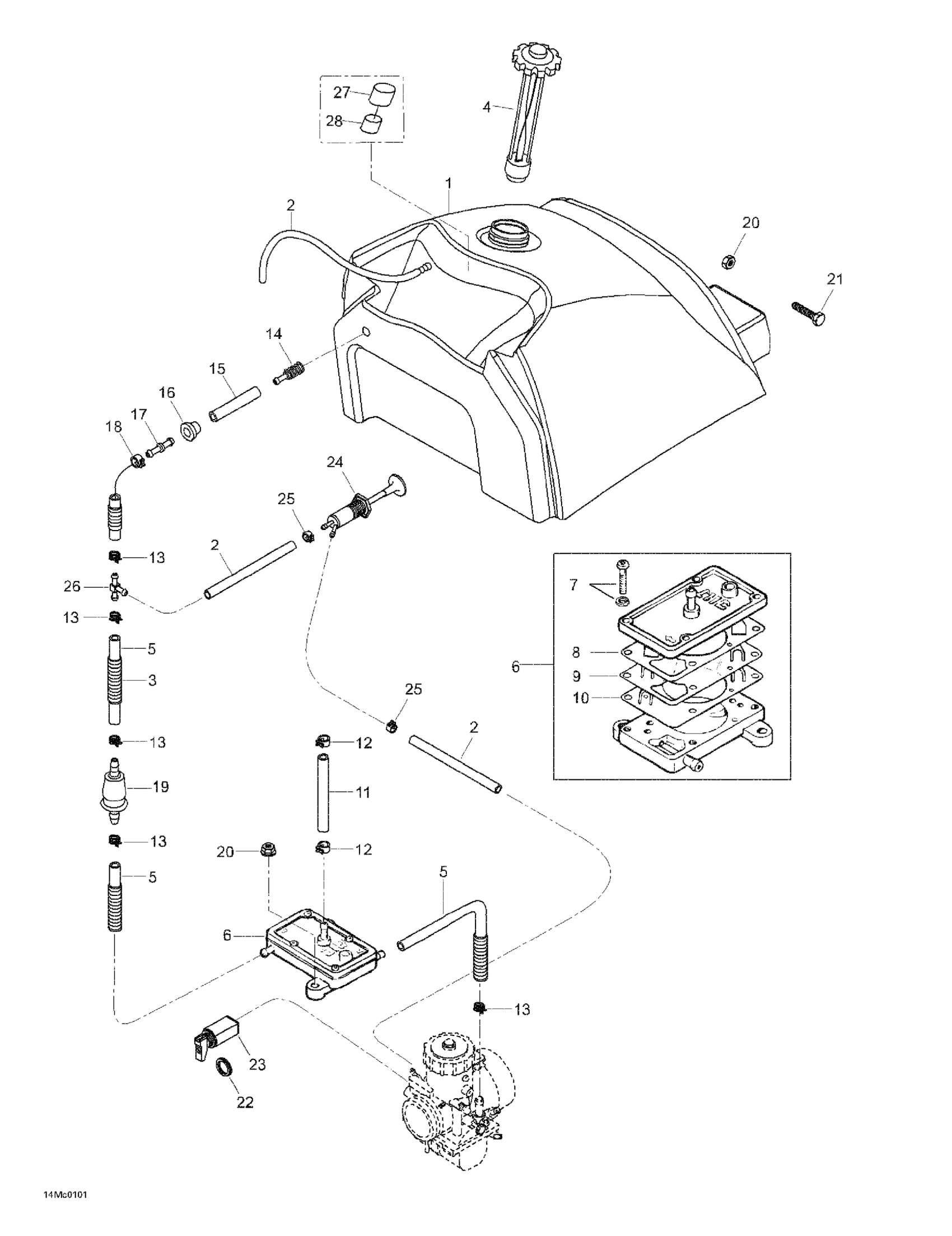

Ski-Doo Skandic 440F, 2001 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

M5145048

Unavailable

2

HOSE - Call your local BRP dealership

M39035

Unavailable

3

HOUSING - Call your local BRP dealership

M28012

Unavailable

4

Fuel Tank Cap

572161200

$38.99

5

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

6

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

$84.99

7

Screw

404118500

Unavailable

8

Packing (Cap)

404901600

Unavailable

9

Diaphragm

404901700

Unavailable

10

Membrane

404901800

Unavailable

11

Polyurethane Hose 10000Mm Long

219704410

$56.99

12

Spring Clamp

414420700

$0.72

13

Spring Clamp

M27086

Unavailable

14

Fuel Filter

414865700

$10.99

15

Hose

M39030

Unavailable

16

Grommet

570045500

$6.69

17

Male Connector

414518500

$4.23

18

Spring Clamp

414554800

$0.88

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Screw

M40826

Unavailable

22

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

23

CABLE-CHOKE - Call your local BRP dealership | Includes 33 to 34

M524046

Unavailable

24

Primer

415060500

$34.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

T Fitting

M21067

Unavailable

27

Rubber Bumper

M5441703

Unavailable

28

HOLDER - Call your local BRP dealership

M5446811

Unavailable
