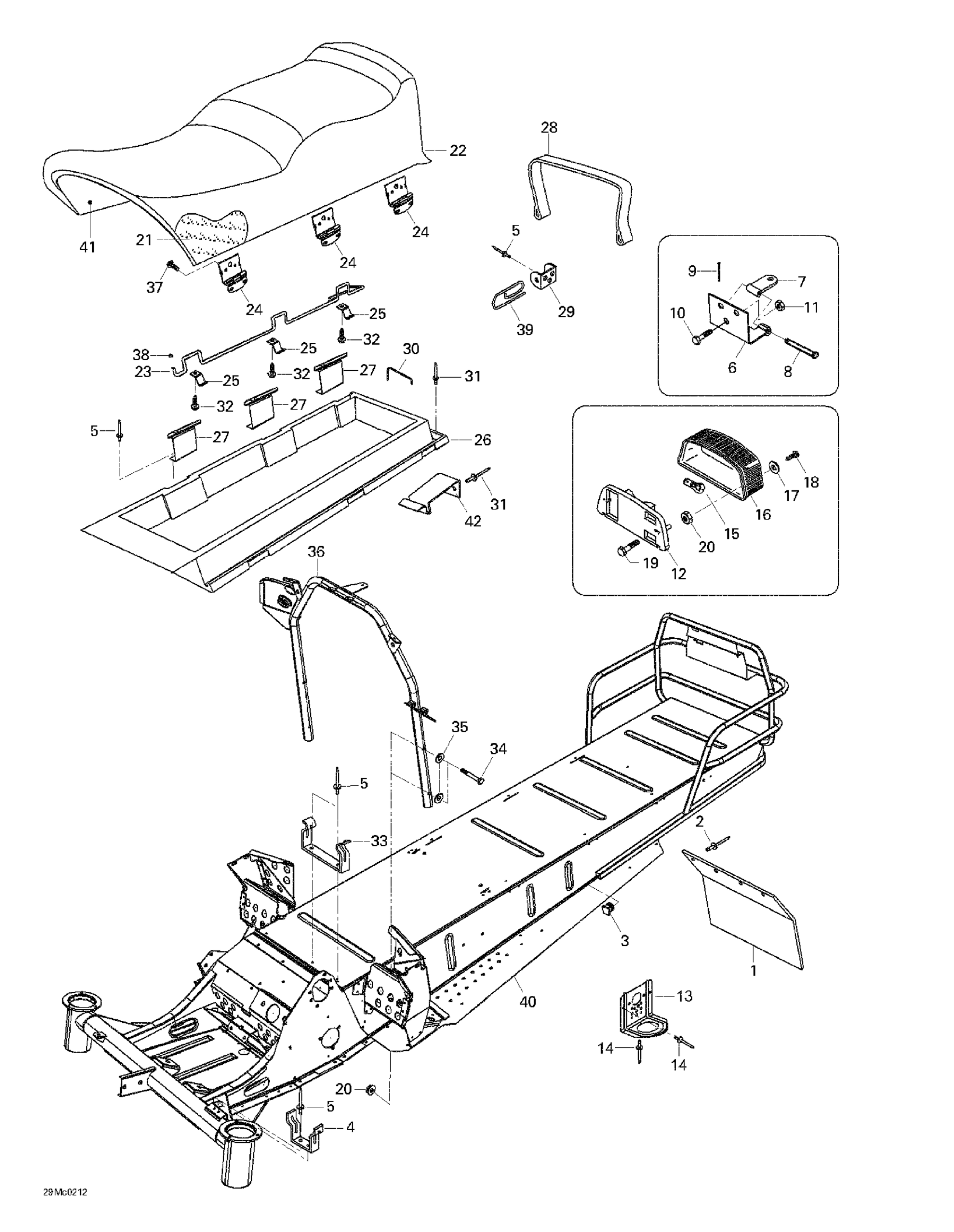

Ski-Doo Skandic 440, 2002 09- Seat And Accessories Diagram

#

Description
Price

1

Snow Guard

572013800

Unavailable

2

Black Rivet

36037

$1.48

3

PLUG - Call your local BRP dealership

M28232

Unavailable

4

Belt Guard Bracket

518202100

$17.49

5

Rivet

36108

$1.90

6

Plate

M5346638

Unavailable

7

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

8

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

9

Cotter Pin

41031

$7.65

10

Hex. Screw M8 X 20

207182044

$0.74

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Taillamp Housing

414979400

Unavailable

13

Bracket

M5342941

Unavailable

14

Rivet

M36080

Unavailable

15

Bulb

520000758

$9.10

16

Lens

414513700

$28.99

17

Washer - Call your local BRP dealership

414516400

Unavailable

18

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

19

Hex. Screw M6 X 30

207063044

$1.26

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Seat Foam

M5145106

Unavailable

22

Seat Cover

M5147594

Unavailable

23

Locking Shaft

M5245337

Unavailable

24

Hinge

M5346518

Unavailable

25

Locking Plate

M5446102

Unavailable

26

Seat Base

M5144963

Unavailable

27

Lock

M5345195

Unavailable

28

SEAT BELT - Call your local BRP dealership

M5346727

Unavailable

29

Seat Belt Latch

M548824

Unavailable

30

Stopper Hook

M5441849

Unavailable

31

Rivet

M36489

Unavailable

32

Screw

M40888

Unavailable

33

Support

M5346204

Unavailable

34

Hex. Screw M6 X 40

207064044

$1.48

35

Flat Washer 6 mm

234061410

$1.36

36

Handle support

M5245059

Unavailable

37

SCREW - Call your local BRP dealership

M40887

Unavailable

38

Cap

M28019

Unavailable

39

Spring This part replaces M548834.

548834

$7.79

40

Frame

M5145056

Unavailable

41

Seat Base

M5144962

Unavailable

42

SPRING PLATE - Call your local BRP dealership

M5346728

Unavailable
