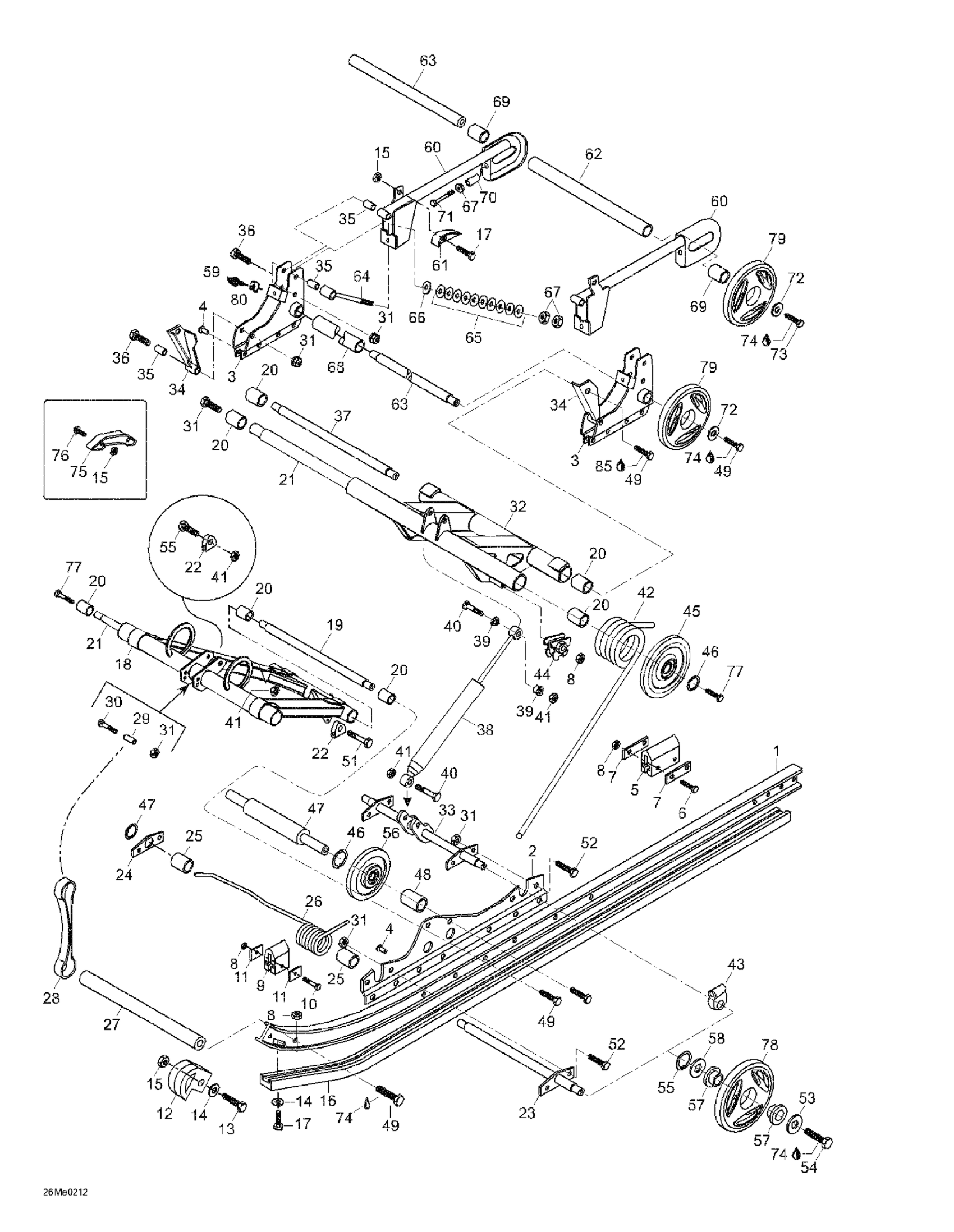

Ski-Doo Skandic 440, 2002 08- Rear Suspension Diagram

LH RUNNER ASS?Y - Call your local BRP dealership | Includes 1 to 5

M5142865

Unavailable

RH Runner Ass’Y | Includes 1 to 5

M5142866

Unavailable

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

$239.99

Support Plate Lh This part replaces M5344810.

5344810

$53.99

Support Plate Rh This part replaces M5344811.

5344811

$53.99

Support For Rearaxle Lh This part replaces M539672.

539672

$88.99

Support For Rearaxle Rh This part replaces M539673.

539673

$88.99

RIVET - Call your local BRP dealership

M544212

Unavailable

RUBBER STOPPER - Call your local BRP dealership

570023100

$16.99

Hex. Screw M6 X 40

207064044

$1.48

Washer

M548387

Unavailable

Elastic Stop Nut M6

232561414

$0.55

STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.

5442328

$9.79

Hex. Screw M6 X 30

207063044

$1.26

Plate

M548470

Unavailable

Runner Protector

605348954

$19.49

Hex. Screw M6 X 25

207162544

$1.15

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Runner Shoe

M549582

$34.99

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Welded Front Arm

M538796

Unavailable

AXLE - Call your local BRP dealership

M548944

Unavailable

Bearing This part replaces M31023.

31023

$14.22

Arm Shaft This part replaces M538945.

538945

$76.99

Spring Roller This part replaces M548799.

548799

$13.49

Axle

M538802

Unavailable

Plate Support

M548469

Unavailable

Sleeve

M548841

Unavailable

Spring L.H. This part replaces M5241177.

5241177

$62.49

Spring R.H. This part replaces M5241178.

5241178

$54.99

Cross Shaft

M546599

Unavailable

STOPPER STRAP - Call your local BRP dealership

M5445988

Unavailable

Sleeve

M546065

Unavailable

Hex. Screw

M40122

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

Welded Rear Arm

M538801

Unavailable

Shaft

M538803

Unavailable

Crank Arm Lh This part replaces M5440349.

5440349

$76.99

Crank Arm R.H. This part replaces M5440350.

5440350

$88.99

Spacer This part replaces M545758.

545758

$27.99

Hex. Screw M8 X 45

207084544

$1.48

Swing Shaft This part replaces M548946.

548946

$59.99

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

$14.99

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Spring L.H. This part replaces M538805.

538805

$72.99

Spring R.H. This part replaces M538806.

538806

$58.49

Spring Support

M548804

Unavailable

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

Wheel 165" | Includes 670 to 670b

503194127

$51.99

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.59

Support Shaft

M5445985

Unavailable

Sleeve L=29

M5444098

Unavailable

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.17

Hex. Screw M10 X 55

207005544

$2.22

Hex. Screw M10 X 35

207103544

$1.58

Hex. Screw M8 x 16

207181644

$1.15

Washer

503183100

$3.17

Hex. Screw

M40337

Unavailable

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.44

Wheel 135

503191029

$33.99

Cushion

503189534

$4.76

SHIM - Call your local BRP dealership

M31091

Unavailable

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

Protector

M548262

Unavailable

SLEEVE - Call your local BRP dealership

M5346739

Unavailable

Shaft

M5445986

Unavailable

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

$58.99

Cup Spring This part replaces M25004.

25004

$3.69

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

Hex. Nut M10 X 1.5

232006414

$1.37

SLEEVE L=176 - Call your local BRP dealership

M542105

Unavailable

Sleeve L=29

M5444098

Unavailable

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

SCREW - Call your local BRP dealership

M40239

Unavailable

Washer

503183300

$5.82

Hex. Screw With Nylon

250000019

$1.69

Loctite 243, 10 ml

293800060

$21.49

Sliding Pad

503192731

$38.99

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

Unavailable

Wheel 135, Yellow

503190785

$33.99

Wheel 165 mm Yellow

503190817

$51.99

Adjustment Plate This part replaces M5440645.

5440645

$17.99
