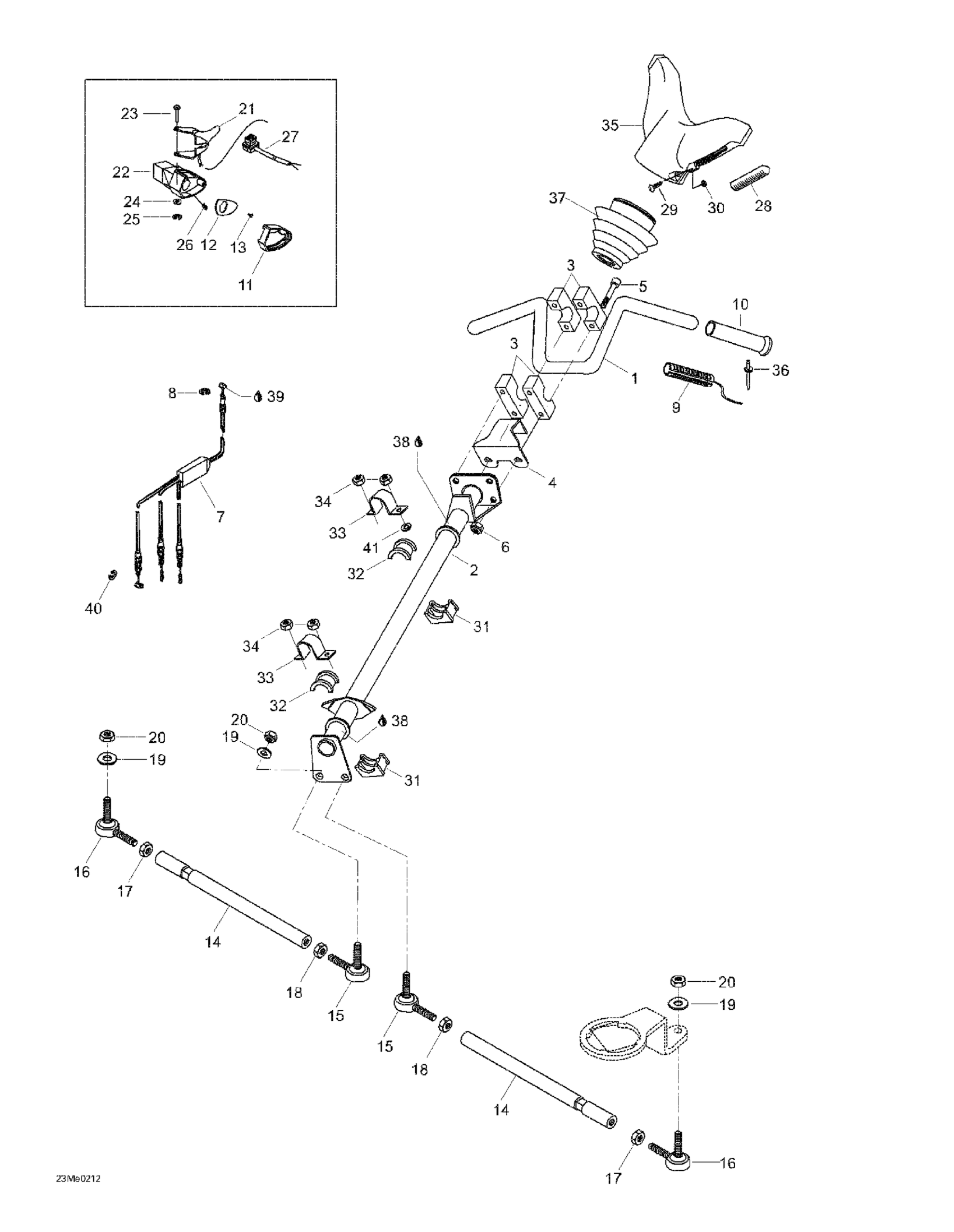

Ski-Doo Skandic 440, 2002 07- Steering System Diagram

#

Description
Price

1

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

2

Main Tube

M5245963

Unavailable

3

Support Guidon *Support-Steer.

M548448

Unavailable

4

Support

M5444196

Unavailable

5

Socket Head Screw M8 X 45

M40286

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

$0.56

7

Throttle Cable This part replaces M5145673.

5145673

$109.99

8

Circlip

M31038

Unavailable

9

Heater Element

M5446341

Unavailable

10

Grip | WAKE This part replaces M5340464.

506152483

$12.17

11

Throttle Cover

572069300

Unavailable

12

Plate

512060390

$10.33

13

Screw

414473200

Unavailable

14

Rh Tie Rod

M548983

Unavailable

15

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

16

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

17

RH NUT - Call your local BRP dealership

M33019

Unavailable

18

LH NUT - Call your local BRP dealership

M33017

Unavailable

19

Lock Washer

M20047

Unavailable

20

Elastic Flange Nut M10

232501416

$1.48

21

HANDLE-ASS. - Call your local BRP dealership

M5442276

Unavailable

22

Throttle Housing

512060603

$12.49

23

Lever Pin

414438700

$11.64

24

Flat Washer M5, Stainless

234051600

$0.77

25

Circlip | Model-RS

414439000

$4.23

26

Socket Set Screw M8 X 10

414440800

$4.12

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

28

Key Way

572023900

Unavailable

29

Screw

M40156

Unavailable

30

NUT M5 - Call your local BRP dealership

M33062

Unavailable

31

Bushing

572064400

Unavailable

32

BUSHING - Call your local BRP dealership

572064500

Unavailable

33

Retaining Support

M5343381

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Steering Pad

572044500

Unavailable

36

Rivet

36005

$2.11

37

Bellow

M539033

Unavailable

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Circlip

414753500

$0.71

41

Lock Washer

M31081

Unavailable
