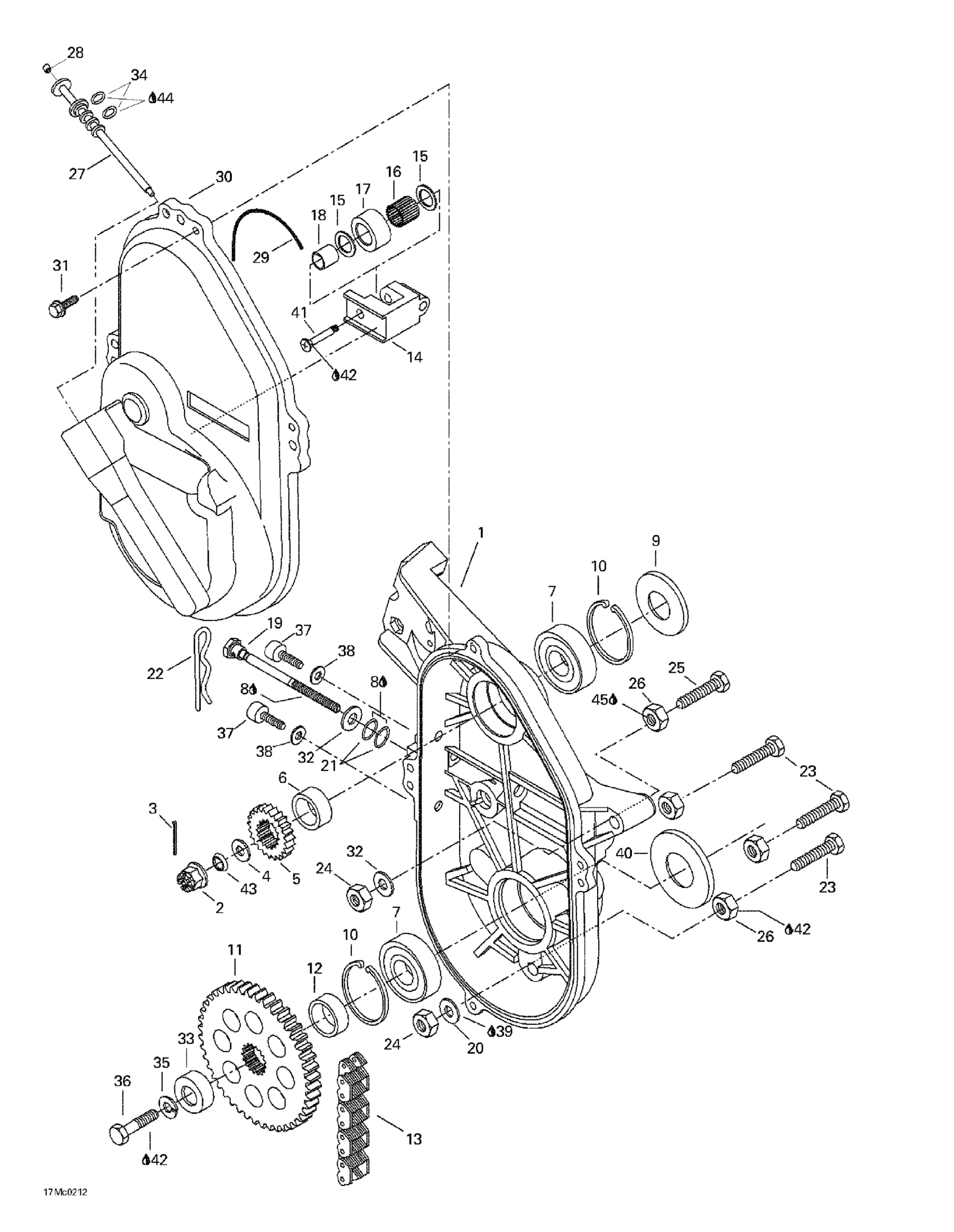

Ski-Doo Skandic 440, 2002 05- Chaincase Diagram

#

Description
Price

1

Machined Chaincase

504144600

Unavailable

2

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

3

Cotter Pin

371801300

Unavailable

4

Washer

504087100

Unavailable

5

Sprocket 17 Th

504071800

Unavailable

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

$12.11

8

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

9

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

10

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

11

Sprocket 44Th

504070900

Unavailable

12

Spacer

504146400

Unavailable

13

DRIVING CHAIN 70 M - Call your local BRP dealership

504151882

Unavailable

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

Needle Bearing

M31050

Unavailable

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

20

WASHER-FLAT - Call your local BRP dealership

M20073

Unavailable

21

O-Ring

414484400

$7.51

22

Hair Pin

414575600

$1.89

23

Screw

M40201

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.69

25

Screw

M40043

Unavailable

26

Spacer

504083800

Unavailable

27

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

28

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

29

O-Ring

414362300

Unavailable

30

CASTING COVER - Call your local BRP dealership

080037100

$134.99

31

Hex. Forming Screw

M40340

Unavailable

32

Flat Washer 10 mm

234001410

$1.26

33

CAP - Call your local BRP dealership

501026200

Unavailable

34

O RING - Call your local BRP dealership

M28402

Unavailable

35

Lock Washer D10

20068

$2.00

36

Hex. Screw M10 X 25

207102544

$1.37

37

Socket Head Screw

M40859

Unavailable

38

Washer

M20022

Unavailable

39

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

40

Seal Oil Ass'y

504152076

$27.99

41

SCREW - Call your local BRP dealership

732601144

Unavailable

42

Loctite 271, 10 ml

293800005

$26.99

43

Spring Washer

417000900

Unavailable

44

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49
