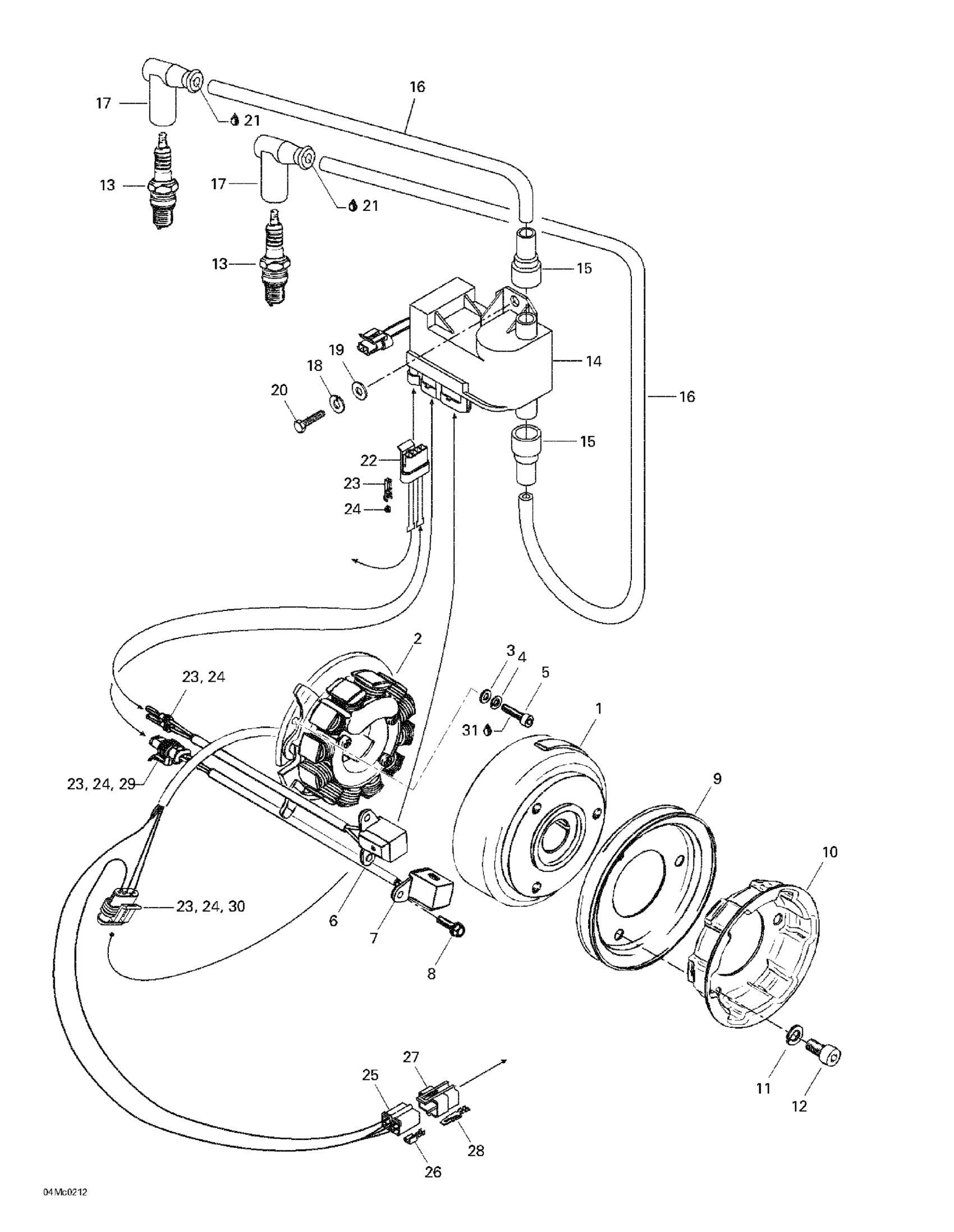

Ski-Doo Skandic 440, 2002 03- Magneto Diagram

#

Description
Price

1

Ducati Magneto | Includes 1 to 2

420887654

Unavailable

1

Flywheel

420996824

Unavailable

2

STATOR PLATE A - Call your local BRP dealership

420886603

Unavailable

3

Washer 5.3

420927574

$1.90

4

Lock Washer

420945750

Unavailable

5

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

6

Pick-Up

420665163

$164.99

7

PICK-UP - Call your local BRP dealership

420665160

Unavailable

8

Taptite Screw M5 X 16

420941928

Unavailable

9

V-Belt Pulley

420980486

$37.99

10

Rope Sheave

420852414

$29.49

11

Lock Washer

420845311

$1.90

12

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

13

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

14

Electronic Box | Includes 21 to 25 This part replaces M42507.

42507

$479.99

15

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

16

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

17

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

18

Lock Washer M6, Black

234161471

$0.53

19

Flat Washer 6 mm

234061410

$1.36

20

SCREW - Call your local BRP dealership

M40332

Unavailable

21

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

22

Female Housing, 4 Circuits

409209700

$16.18

23

Female Terminal

278001014

$3.28

24

Wire Seal

278001013

$3.28

25

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

26

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

27

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

28

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

29

Female Housing, 2 Circuits

409209500

$15.27

30

Female Housing, 3 Circuits

409209600

$35.99

31

Loctite 243, 10 ml

293800060

$21.49
