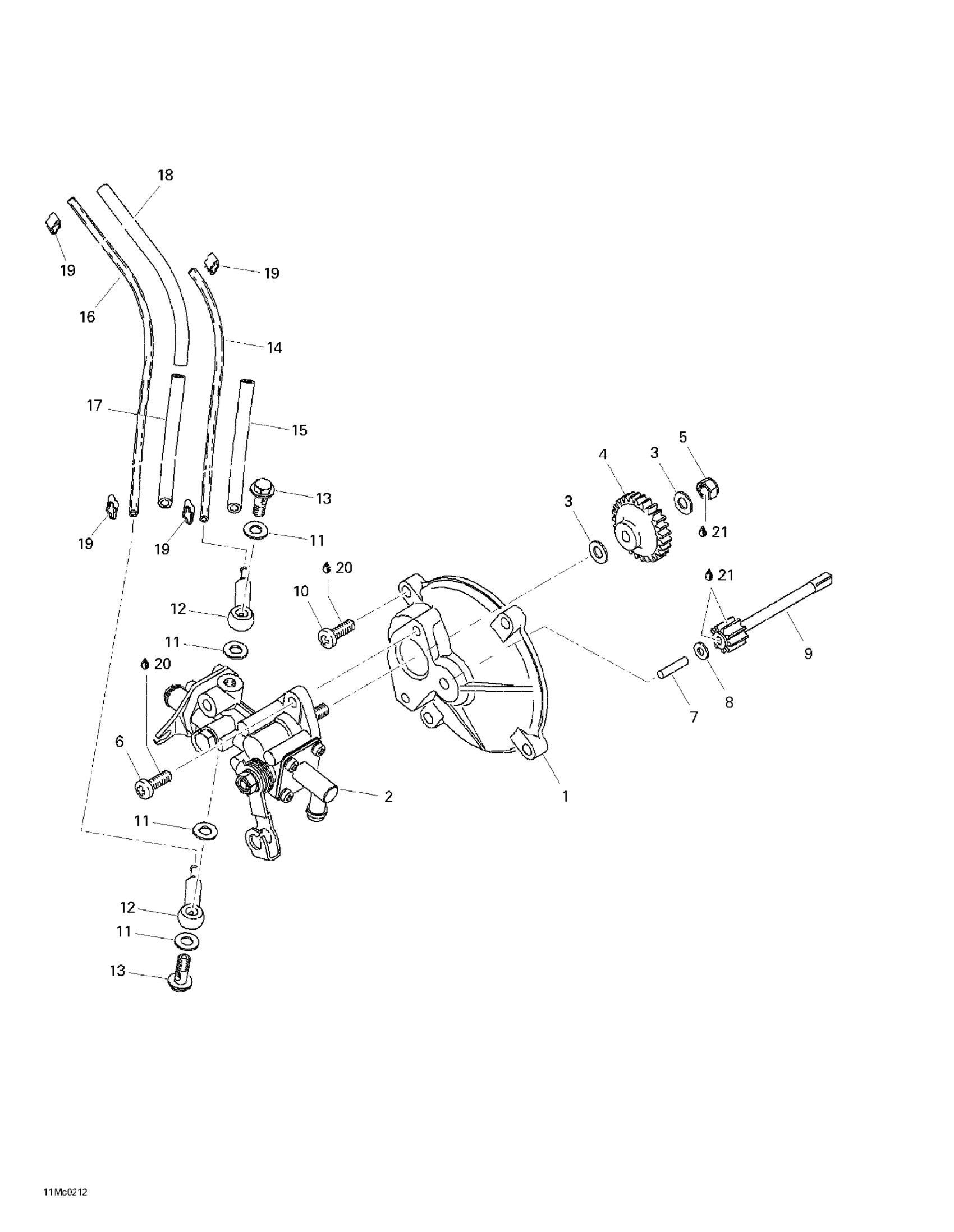

Ski-Doo Skandic 440, 2002 Oil Injection System Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

OIL PUMP ASS?Y - Call your local BRP dealership

420887996

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$14.10

5

Elastic Stop Nut M6

232561414

$1.78

6

Screw

420841971

$2.82

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$0.81

9

Gear, 9 Teeth

420935970

$14.90

10

Screw

420841971

$2.82

11

Sealing Washer

404146600

$0.72

12

Valve Ass’Y

420956010

$16.39

13

Banjo Bolt M6 X 16

404146800

Unavailable

14

Oil Hose 1500Mm Long

219704404

$15.64

15

Isolation Line 90 mm | 380 F.

420960750

Unavailable

16

Oil Hose 1500Mm Long

219704404

$15.64

17

Isolation Line

420960728

$4.15

18

Hose 6 Mm 15000Mm Long

219704360

$120.12

19

Clamp

420853840

$4.15

20

Loctite 243, 10 ml

293800060

$21.49

21

Dow Corning 111, 150 g

413707000

$59.99
