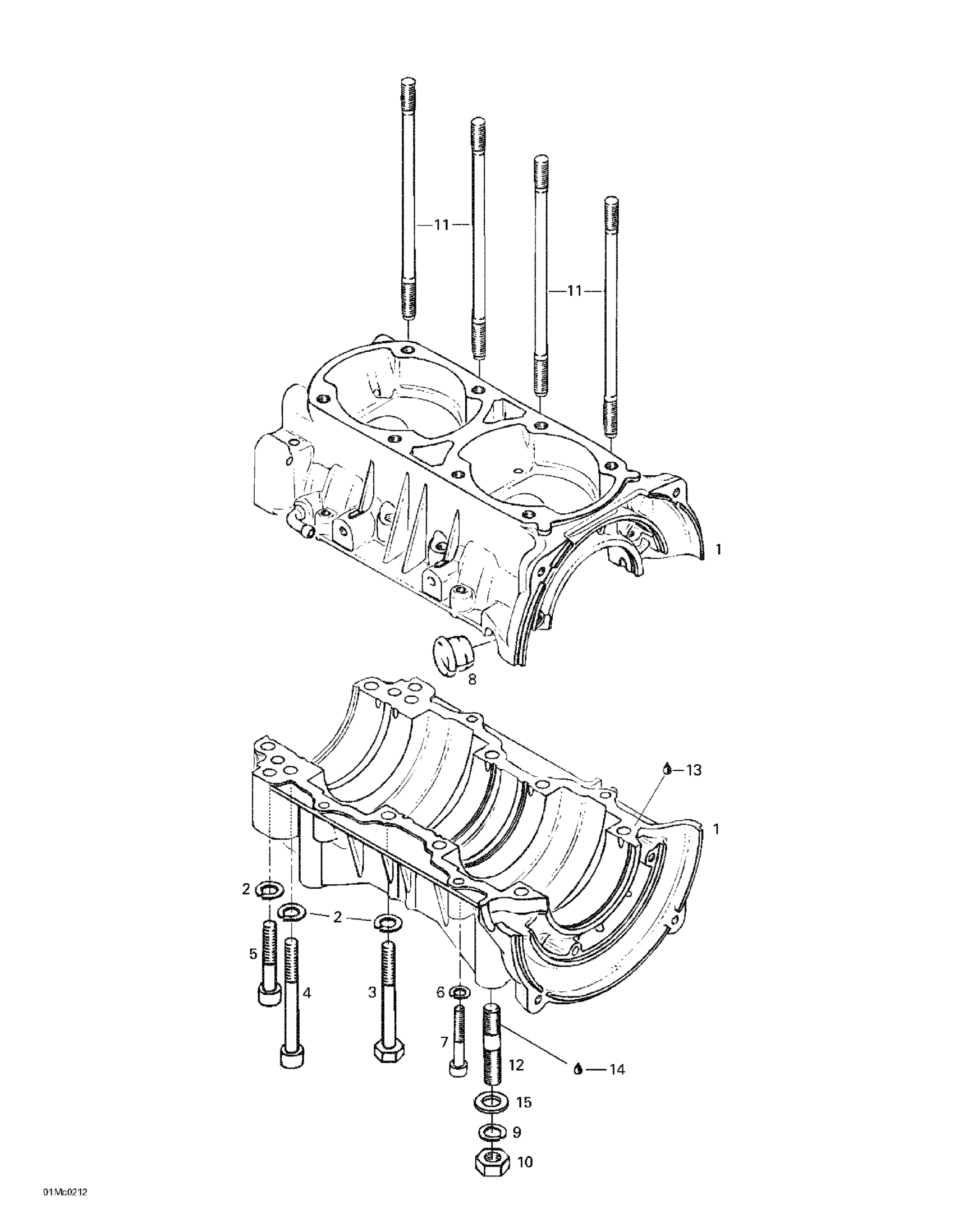

Ski-Doo Skandic 440, 2002 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 7

420888481

Unavailable

2

Washer-Lock Din.128

420945832

$1.06

3

Hex. Screw M8 X 70

420841201

Unavailable

4

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

5

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

8

Cable Grommet

420860962

$11.18

9

Lock Washer

M20047

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.27

11

STUD M8 X 167 - Call your local BRP dealership

420841149

Unavailable

12

Stud M10 X 29/20

420940190

Unavailable

13

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

WASHER M10 - Call your local BRP dealership

20005

Unavailable
