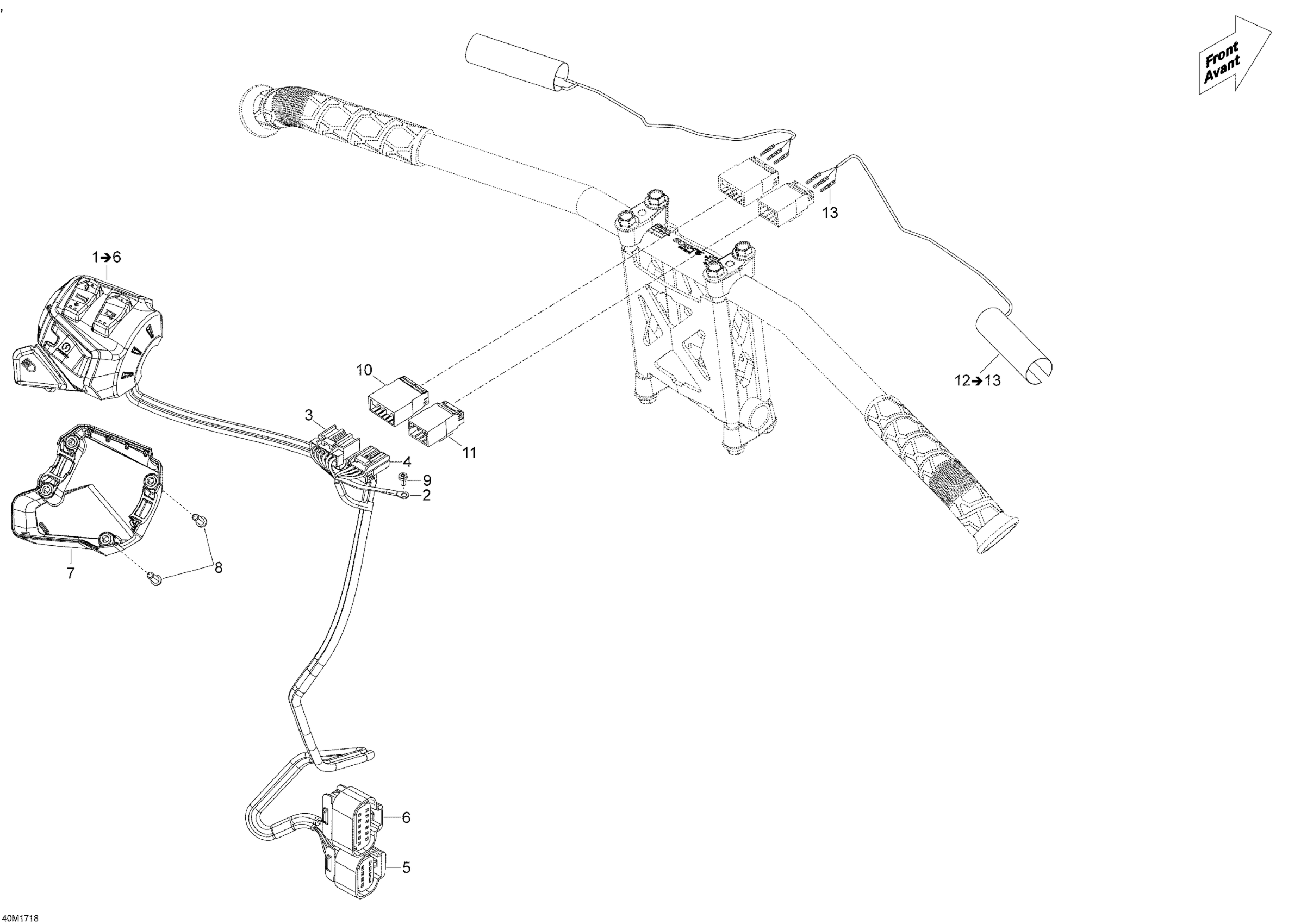

Ski-Doo SKANDIC - 4-STROKE - WT-SWT, 2017 Steering Wiring Harness Diagram

#

Description

Price

1

LH Housing

515178198

$258.93

2

Ring Terminal

515175504

$7.25

3

Female Terminal Housing, 6 Circuits

515175543

$8.31

3

Female Terminal

515175231

$4.00

4

Female Terminal Housing, 4 Circuits

515175845

$7.78

4

Female Terminal

515175231

$4.00

5

Housing

710001928

$14.52

6

Female Housing, 12 Circuits

710001930

$13.52

7

Housing Plate

515177147

$17.13

8

Torx Screw

250000671

$0.96

9

Pan Screw Forming, 7500C

250000690

$2.00

10

Male Terminal Housing, 6 Circuits

515175662

$8.31

11

Male Terminal Housing, 4 Circuits

515175846

$8.31

12

Heated Film, 25W

506152428

$36.54

13

Male Terminal

515175232

$1.45
