Description

Price

1

Snow Guard

520001411

$106.99

1

Black, Snow Guard Short

520001405

$79.99

1

Black, Snow Guard long

520001409

$79.99

2

Plate

520001021

$37.99

2

Plate

520001022

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Horn

549011291

$35.99

14

Reflector (Bright)

21118

$28.99

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Amber, Lateral Reflector

705002423

$15.49

17

Red, Lateral Reflector

705003412

$15.49

18

Deep Black, Reflector Support

520000871

$5.79

19

TIE RAP - Call your local BRP dealership

27120

$0.95

20

Tools Kit | Includes 1400 to 1400b

520001593

$51.49

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Spacing Tool

520001142

$10.52

25

Wrench

520001442

$14.99

26

Tool Kit Rack

520000894

$14.99

27

Latch

520000528

$7.69

28

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Pin

41012

$6.39

33

Hair pin

41029

$4.44

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Avex Rivet

390909100

$0.30

36

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

40

Cotter Pin

41031

$7.65

41

Plate

520000727

$36.99

42

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

43

Bolt Carriage M8 X 40

207784044

$1.15

44

Hex. Flange Elastic Nut M8

233281414

$1.47

45

Cover | Model-T3

28056

$5.89

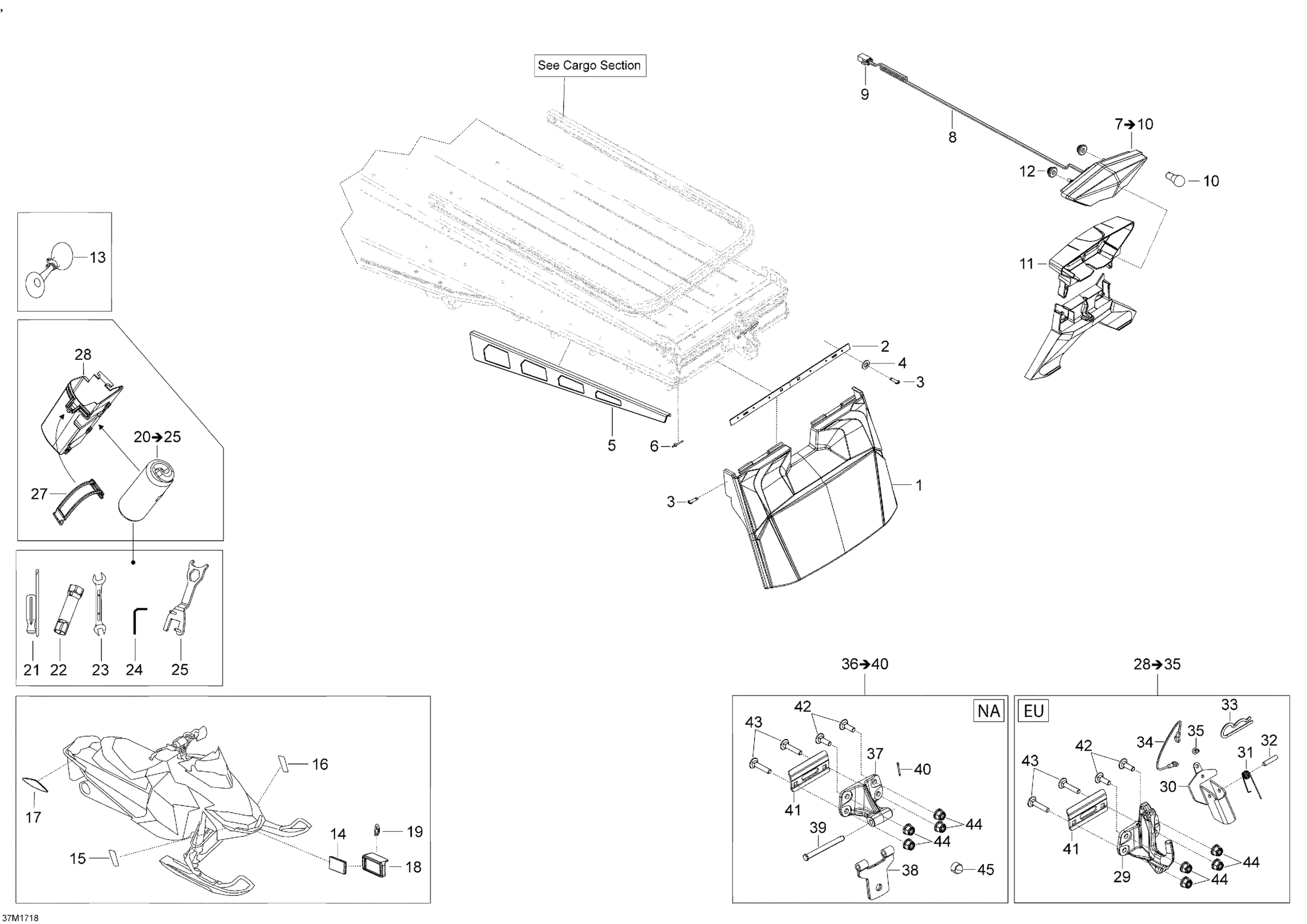

Ski-Doo SKANDIC - 4-STROKE - WT-SWT, 2017 09- Utilities Diagram

Snow Guard

Black, Snow Guard Short

Black, Snow Guard long

Plate

Plate

Forming Screw M5 x 16

Forming Screw M5 x 16

Washer M5

Washer M5

RH Protector

LH Protector

Rivet Hucklok

Rear Light | Includes 200 to 200a

Rear Wiring Harness

Male Housing, 3 Circuits

Bulb

Rear Light Cover

Stopper Rubber

Horn

Reflector (Bright)

Yellow, RH Reflector

Yellow, LH Reflector

Amber, Lateral Reflector

Red, Lateral Reflector

Deep Black, Reflector Support

TIE RAP - Call your local BRP dealership

Tools Kit | Includes 1400 to 1400b

SCREW DRIVER - Call your local BRP dealership

Set Key, 16/21 mm

FORK WRENCH, 10/13 MM - Call your local BRP dealership

Spacing Tool

Wrench

Tool Kit Rack

Latch

Hitch Ass'y | Includes 3600 to 3600f

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Pin

Hair pin

Not Available As Spare Part - Friction Washer

Avex Rivet

Hitch Ass'y | Includes 3600 to 3600a

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

PIN-RETAINER - Call your local BRP dealership | North America

Cotter Pin

Plate

Carriage Bolt, M8 X 25 | XXC

Bolt Carriage M8 X 40

Hex. Flange Elastic Nut M8

Cover | Model-T3
